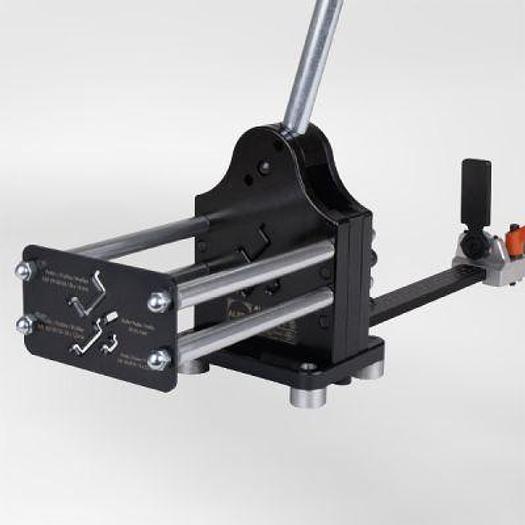

Alfra GmbH PSG 4® Profile Rail Cutting Device

Alfra Profile Rail Cutting Device® - PSG 4®

Product No: 03004

Description

Lowest possible cutting clearance, highest precision. The PSG 4 from Alfra's product line of profile rail cutters convinces by exact, burr-free 90 degree cuts, because the cross-cut fence with double guide prevents slipping. Unique is the shear plate with reinforced eccentric for an improved power transmission. Shearing forces acting from above ensure that the desired section is cut off cleanly and effortlessly. The long, soft-touch reinforced handle provides additional comfort. The PSG 4 cuts mounting rails with the dimensions 35mm/7.5; 35mm/15, 15 mm; 15mm/5.5 and copper grounding rails with the dimensions 10 mm X 3 mm.

For hand-operated mounting rails

Cuts profile and ground rails precisely and without effort.

Standard version for TS 35/7.5 - 35/15 - 15/5.5 - Cu 10.0 x 3.0 mm

• With reinforced cam located directly above the shear plate
• Lower force application due to improved force transmission
• Burr-free cutting to length without waste
• Maintenance-free
• Anodised, laser-engraved length limit stop 1,000 mm with guiding
• device for precise angled cutting to length, with millimetre and inch
• scaling
• Shear plate re-grindable
• Guidance fixture for 90° angle-precise cutting

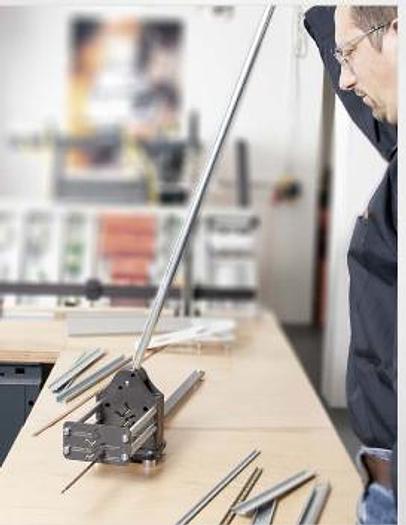

• Easy to install on the workbench
• Custom-made products are also possible (please send us a sample rail of about 1,000 mm length)

Technical Specifications:

Standard version Cuts: TS 35/7.5 - 35/15 - 15/5.5 - Cu 10.0 x 3.0 mm

Guide fixture: 90°-angle precise cutting

Anodised, laser-engraved longitudinal limit stop: 1,000 mm with guidance

Fixture for precise angled cutting to length with millimetre and inch scaling.

Stable profile guiding: 90° cuts

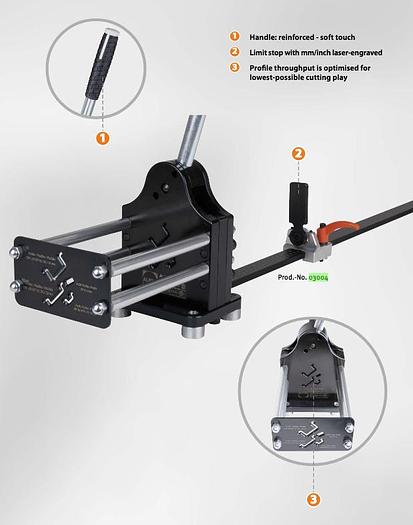

Handle: reinforced – soft touch
