€6,950 + Vat

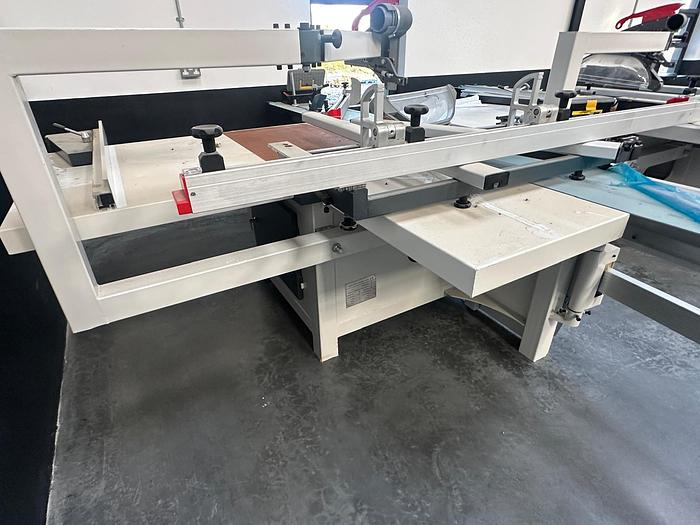

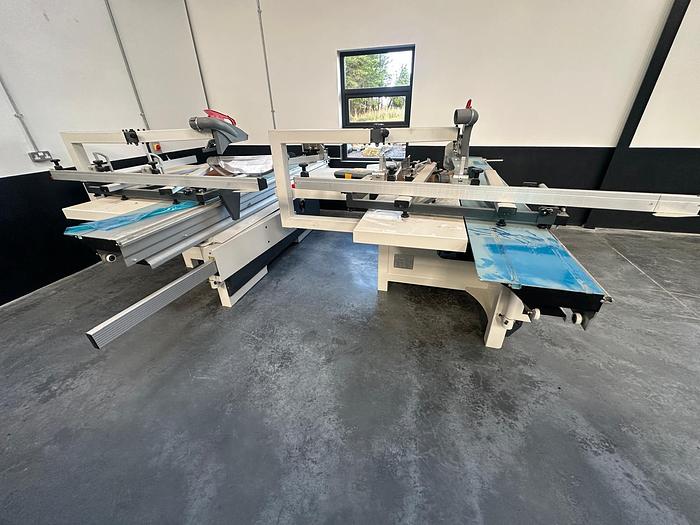

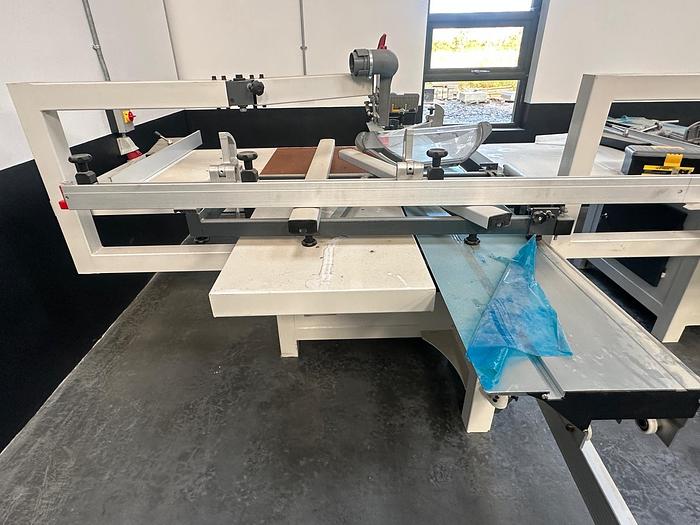

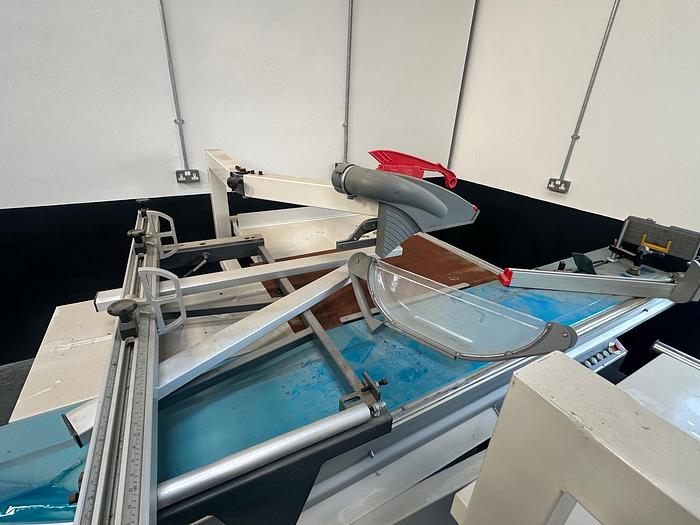

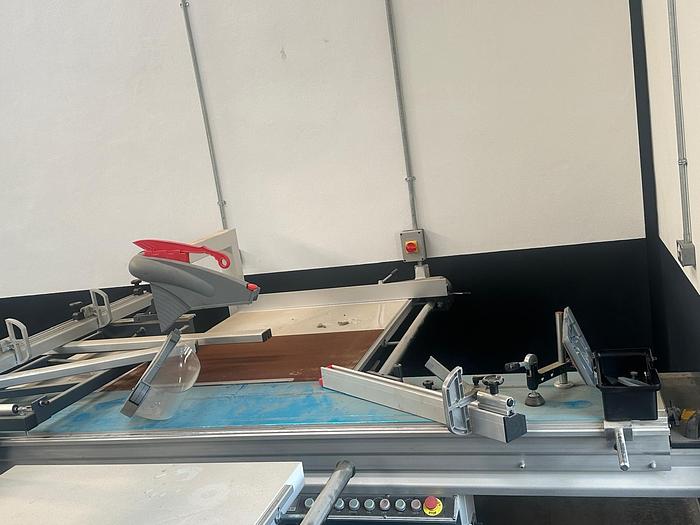

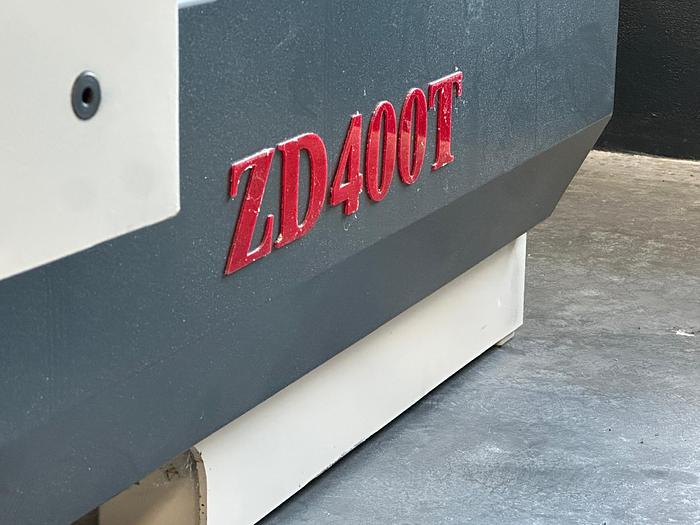

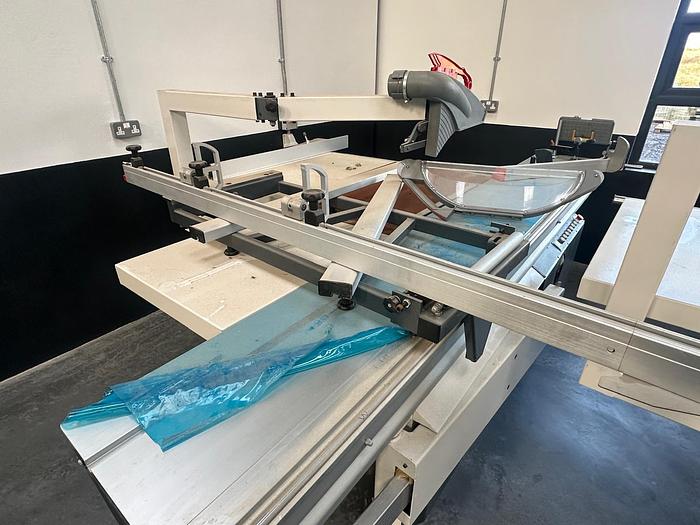

2023 ZD 400T Sliding Table Saw
Description
ZD 400T Sliding Table Saw
Machine Type: Panel Saw/Sliding Table Saw
Year: 2023
Condition: As new, never used.

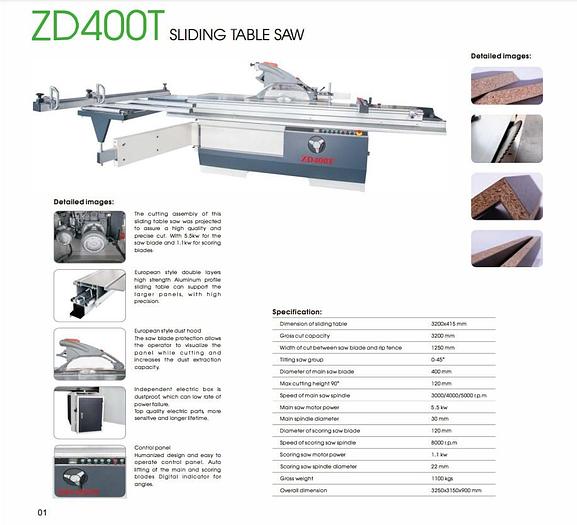

Technical Specifications
Saw blade lift: Electrical
Saw blade angle tilting: Manual
Saw blade readout: Digital readout
Dimension of sliding table: 3200/3800x415/435 mm
Gross cut capacity: 3200/3800 mm
Width of cut between saw blade and rip fence: 1250 mm
Tilting saw group: 0-45°
Diameter of main saw blade: 400 mm
Max cutting height 90°/ 45°: 125mm/80mm
Speed of main saw spindle: 4000/6000 r.p.m
Main saw motor power: 5.5 kw
Main spindle diameter: 30 mm
Diameter of scoring saw blade: 120 mm
Speed of scoring saw spindle: 8000 r.p.m
Scoring saw motor power: 1.1 kw
Scoring saw spindle diameter: 22 mm
Gross weight: 1100kg
Overall dimension: 3250x3150x900 mm
Specifications
| Manufacturer | ZD |
| Model | 400T Sliding Table Saw |
| Year | 2023 |
| Condition | Used |

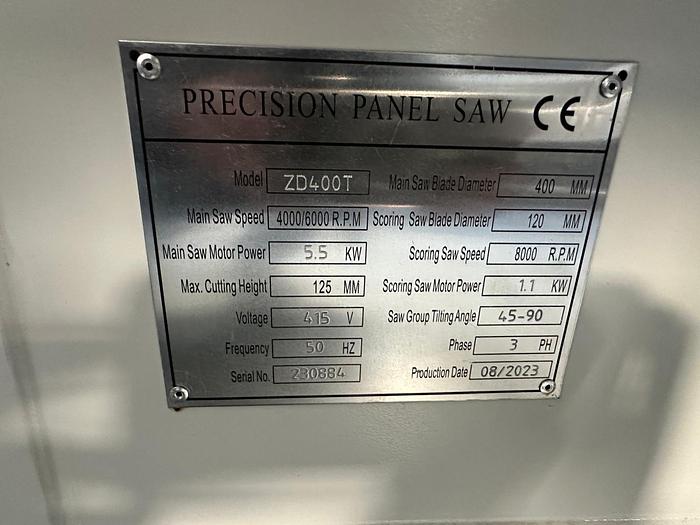

| Serial Number | 230884 |
| Stock Number | 968805 |
| Machine Type | Panel Saw/Sliding Table Saw |
| Year | 2023 |
| Condition | As new, never used. |
| Saw blade lift | Electrical |
| Saw blade angle tilting | Manual |
| Saw blade readout | Digital readout |
| Dimension of sliding table | 3200/3800x415/435 mm |
| Gross cut capacity | 3200/3800 mm |
| Tilting saw group | 0-45° |
| Main saw motor power | 5.5 kw |
| Main spindle diameter | 30 mm |
| Scoring saw motor power | 1.1 kw |
| Scoring saw spindle diameter | 22 mm |
| Overall dimension | 3250x3150x900 mm |
| Gross weight | 1100kg |
