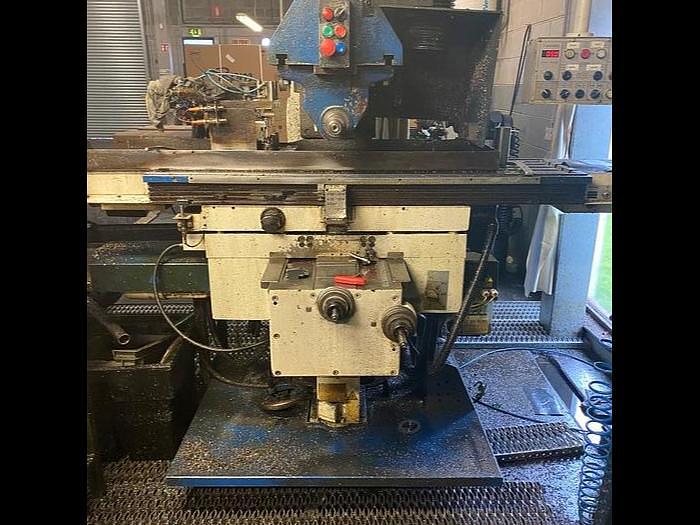

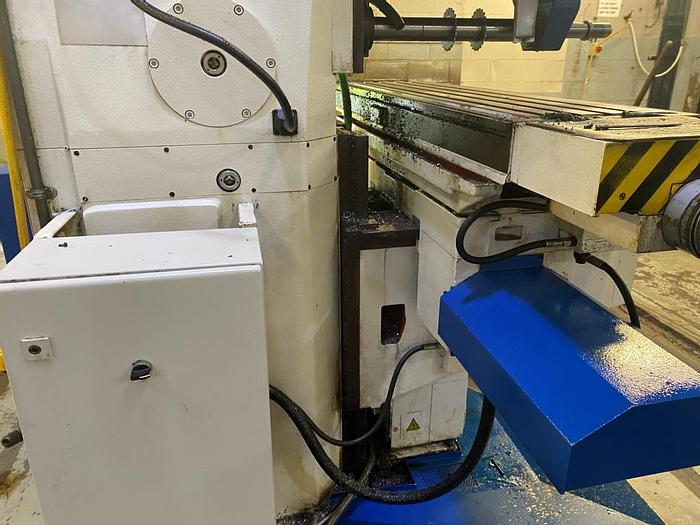

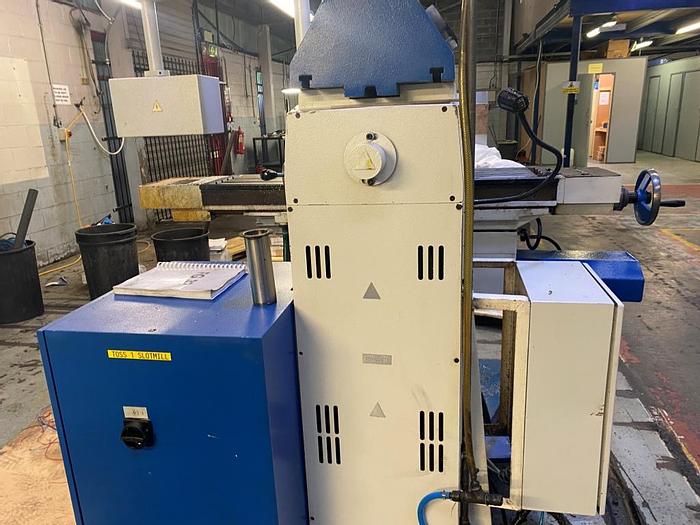

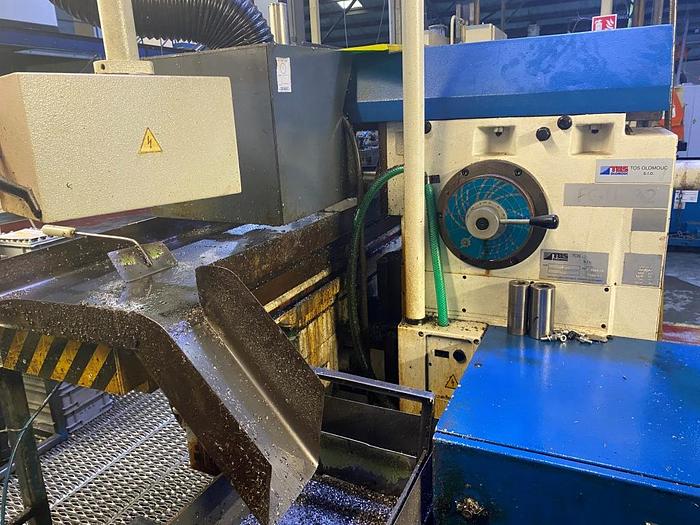

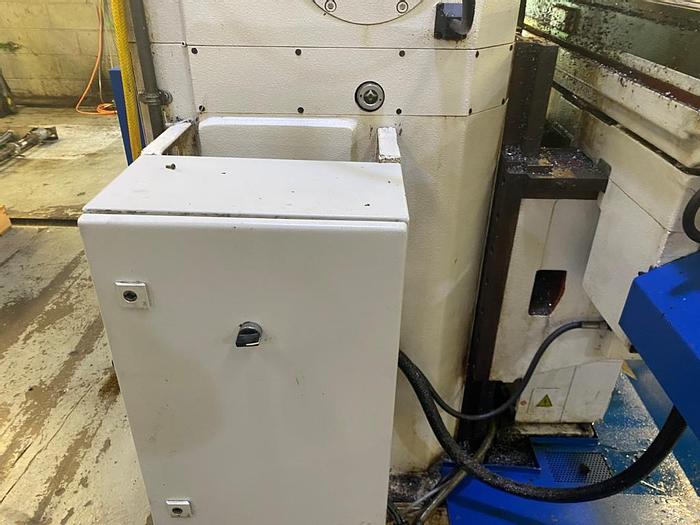

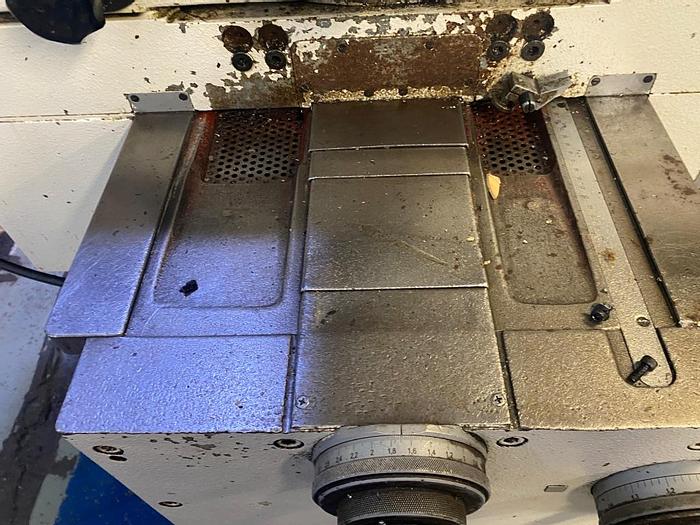

2010 TOS Olomouc FGU 32 Horizontal Milling Machine

2010 TOS Olomouc FGU 32 Horizontal Milling Machine

Year: 2010

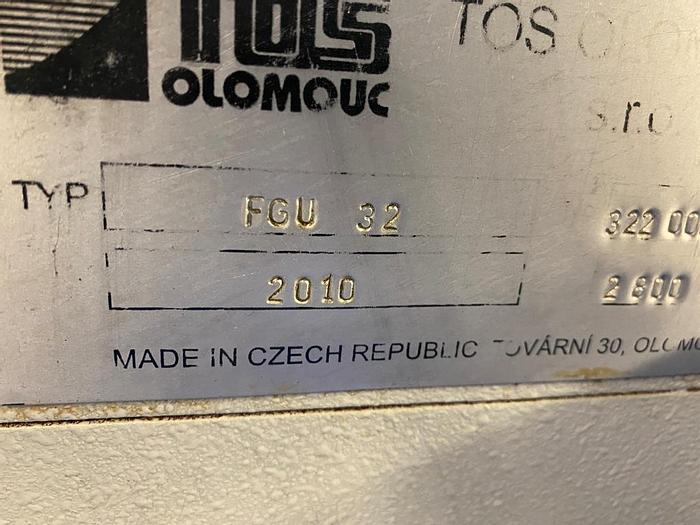

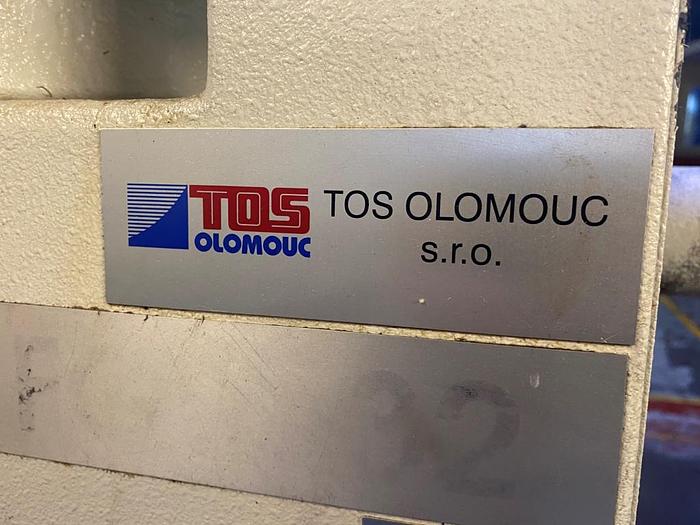

Manufacturer: TOS Olomouc

Model: FGU 32

Condition: Very Good

Machine Description

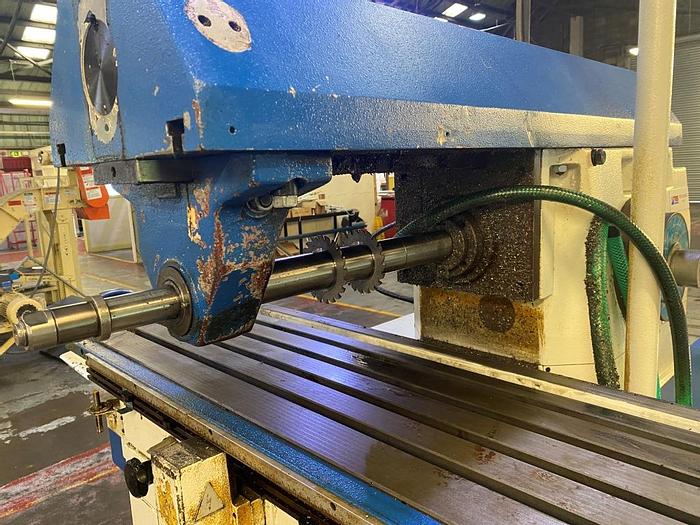

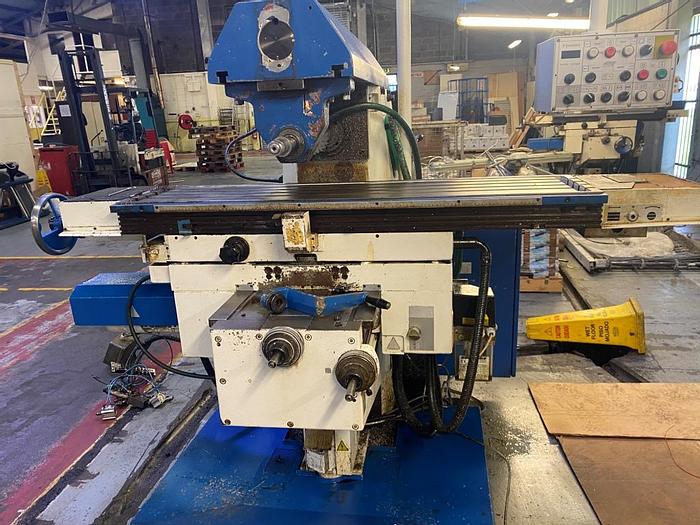

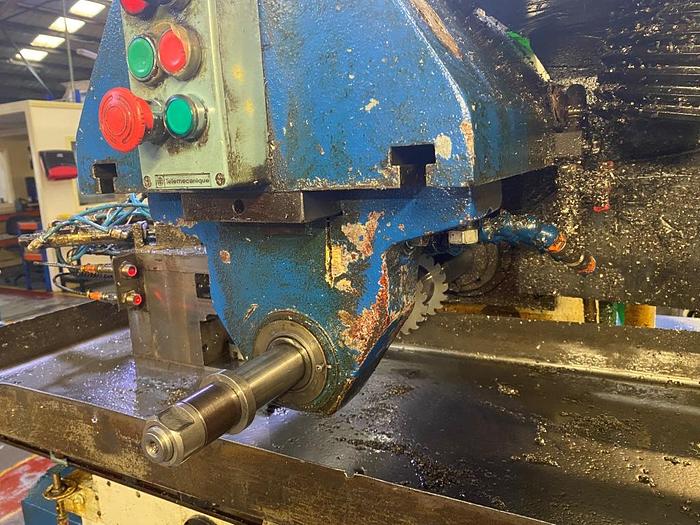

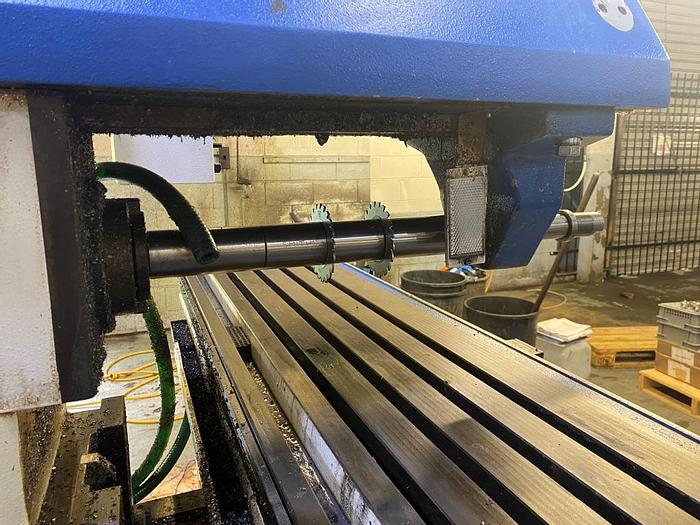

The FGU32 type is a high efficiency production milling machine with horizontal spindle. It is designed for precision and productive milling of flat or box-section workpieces up to 250 kg weight occurring in the one-off or batch production.

The wide range of spindle speeds and feeds enables effective milling of all metals with tools made from a high speed steel or a hard-metal. The split cross table enables the longitudinal table to be swiveled about its vertical axis thereby considerably extending the technological possibilities of the machine.

Technical Specifications

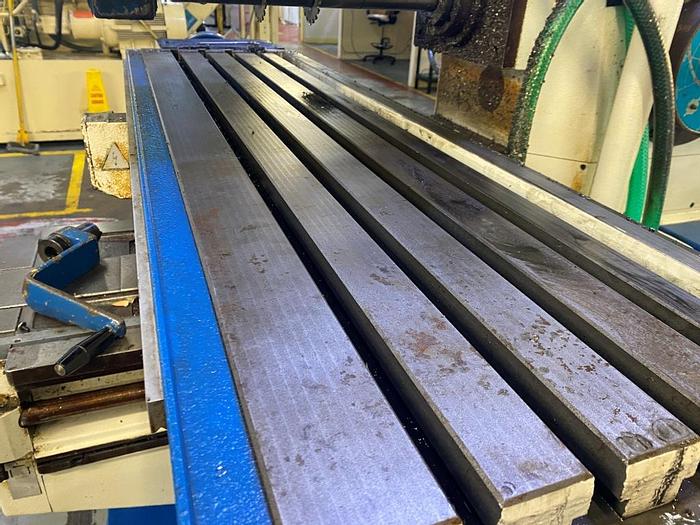

Table Size: 1400 x 360mm

X Axis Travel: 1020mm

Y Axis Travel: 300mm

Z Axis Travel: 435mm

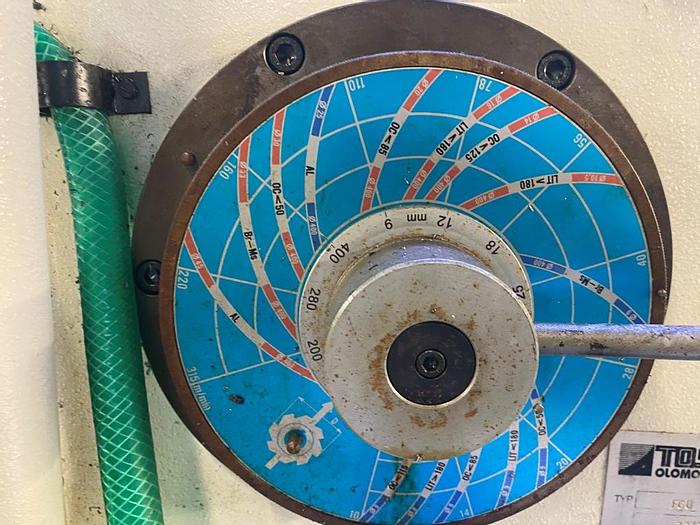

Spindle Speeds: 31.5 - 1400rpm

Max Work-piece Weight: 250kg

Spindle Taper: ISO 50

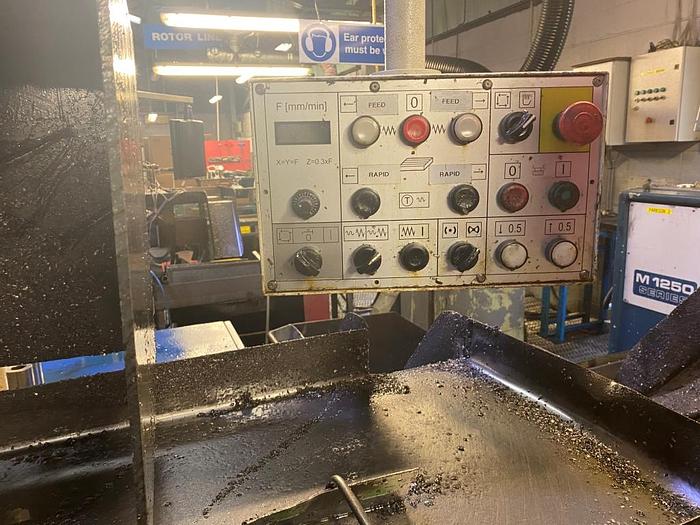

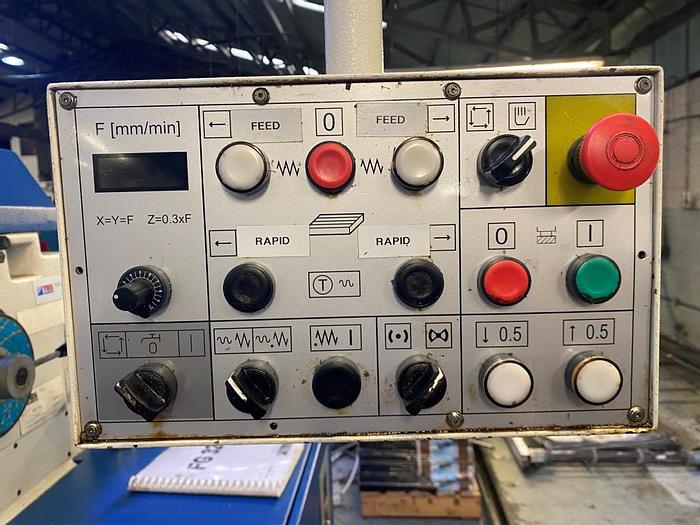

Automatic Feeds: X,Y,Z (step-less)

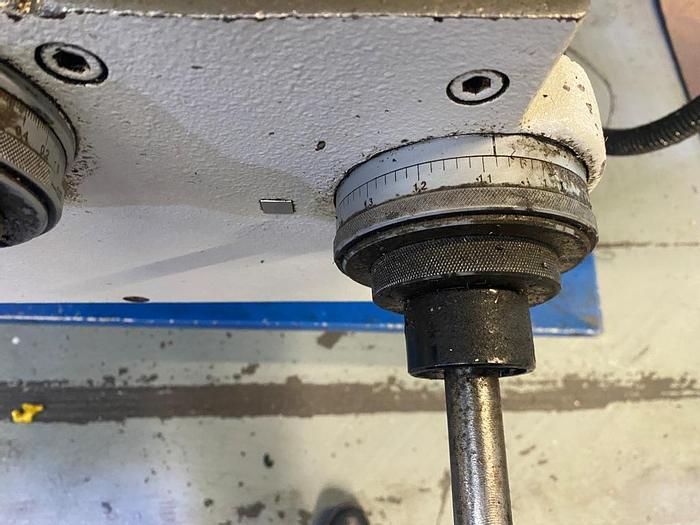

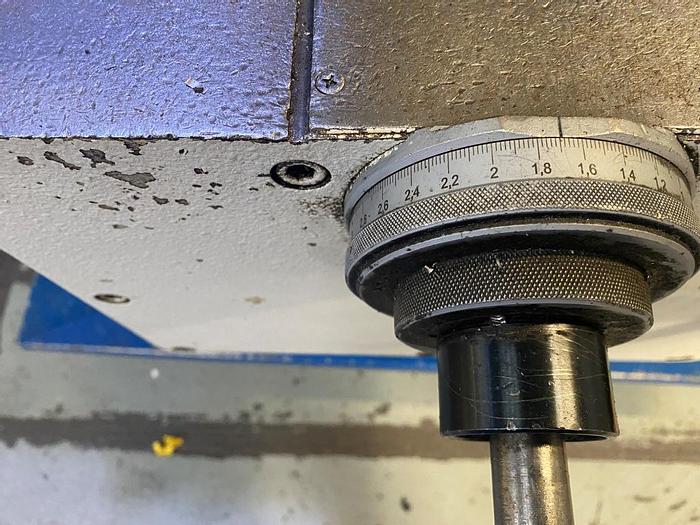

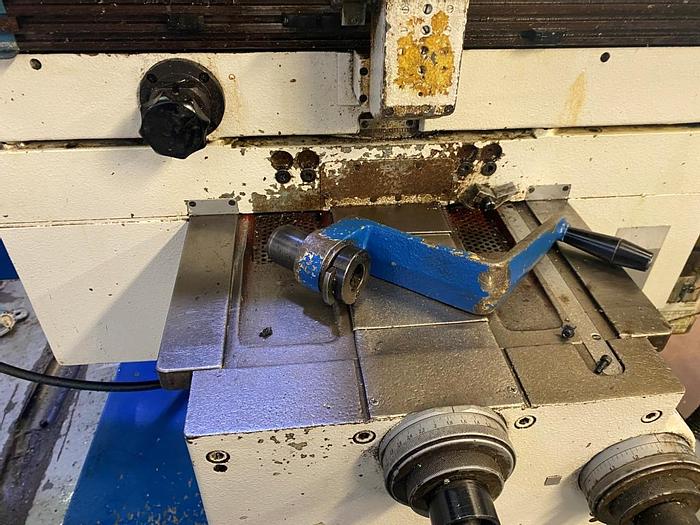

Hand-wheels in axes X,Y and Z with measuring dials - dividing 0,02 mm

Drive for special attachment

Climb-cut milling in longitudinal axis

Motor Power: 5.5kW

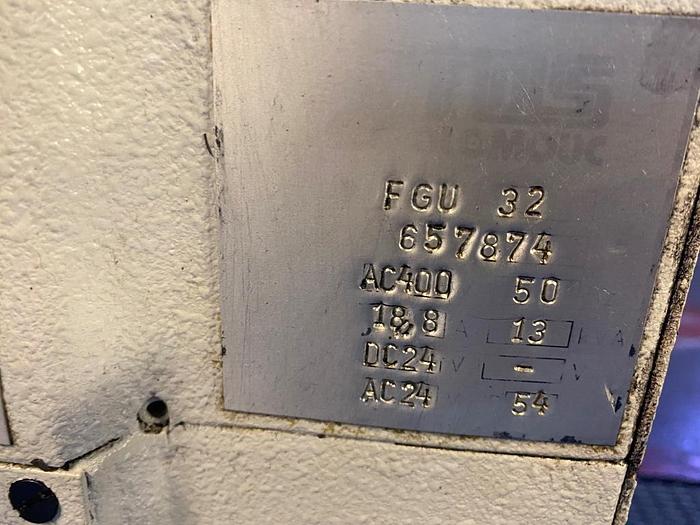

Total Input Power: 13kVA

Advantages

High rigidity and geometrical accuracy

Step-less feeds in all 3 axes by means of a frequency converter

Hardened guideways

Climb-cut milling in longitudinal axis

Automatic working cycles in longitudinal axis with knee drop (Special execution)

Swiveling of longitudinal table

Simple operation

Central lubrication system (manually operated)

Compact machine design

Machine Dimensions: 2995 x 2000 x 1980mm

Machine Weight: 1980kg
