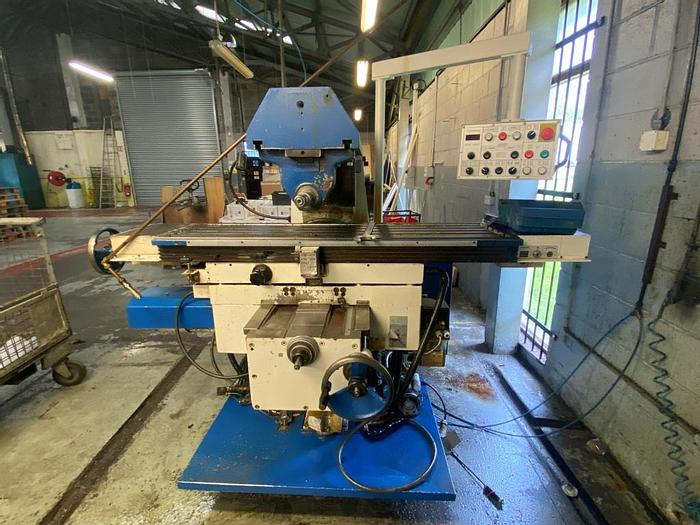

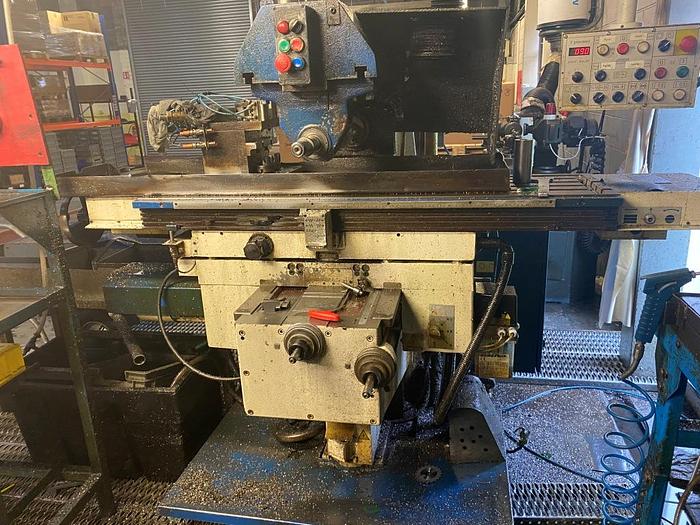

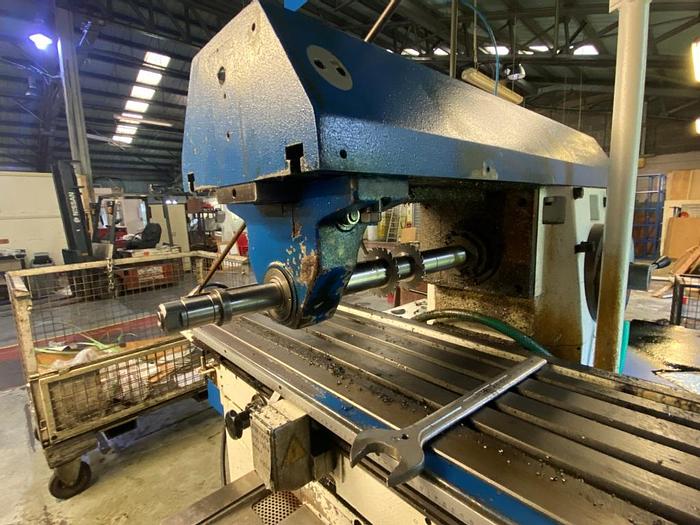

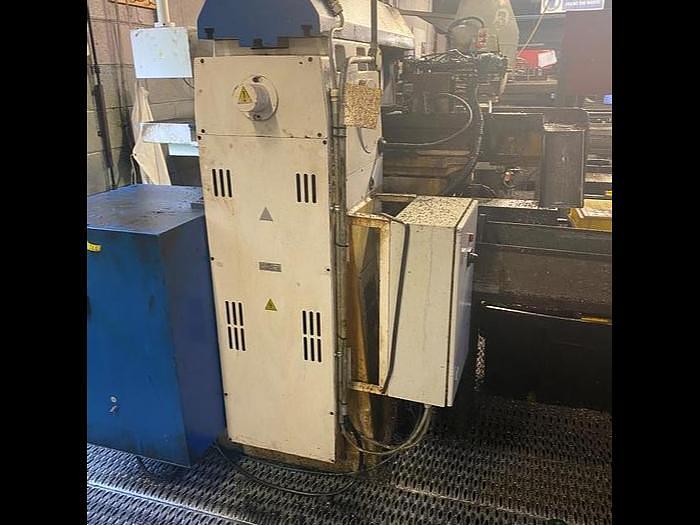

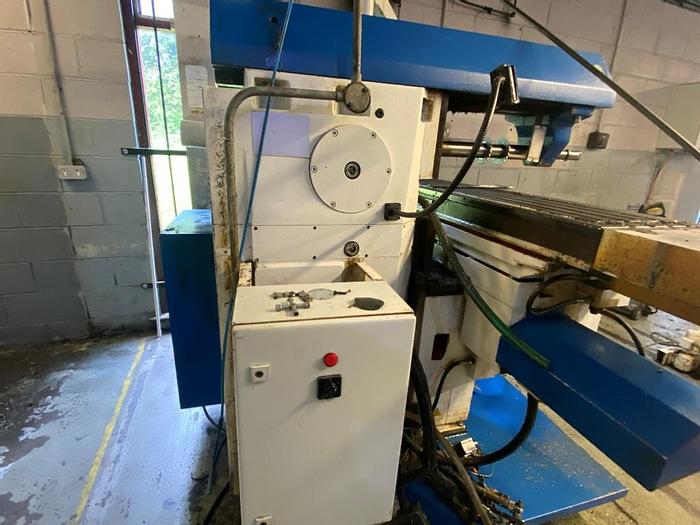

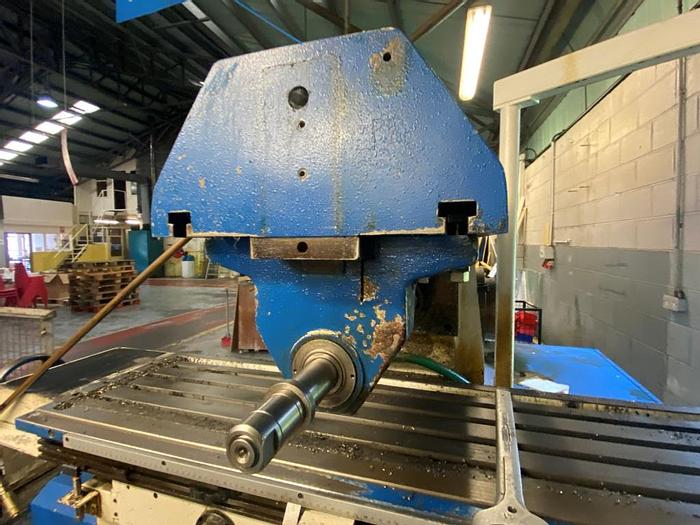

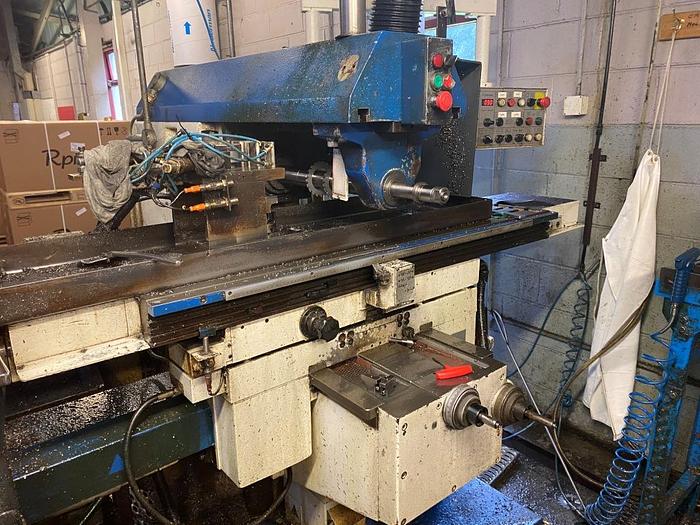

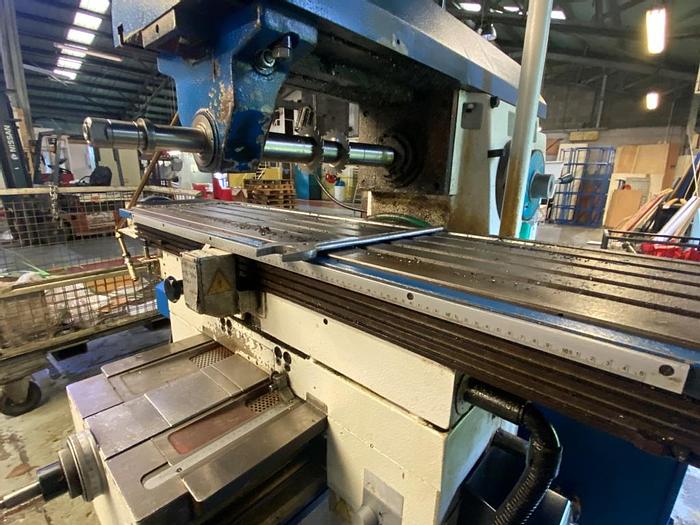

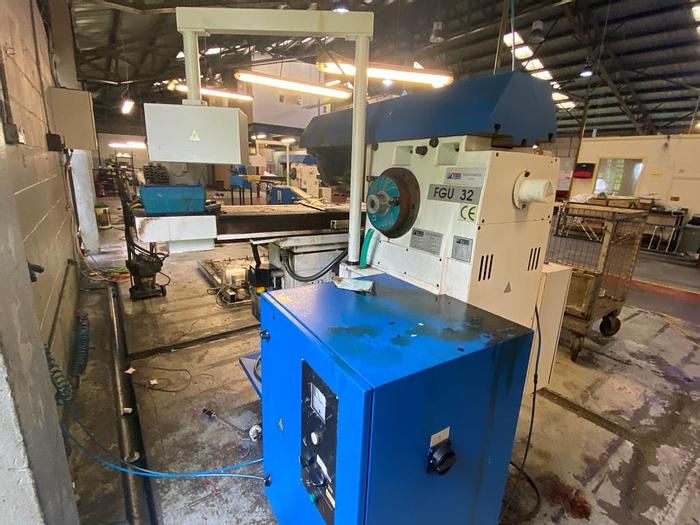

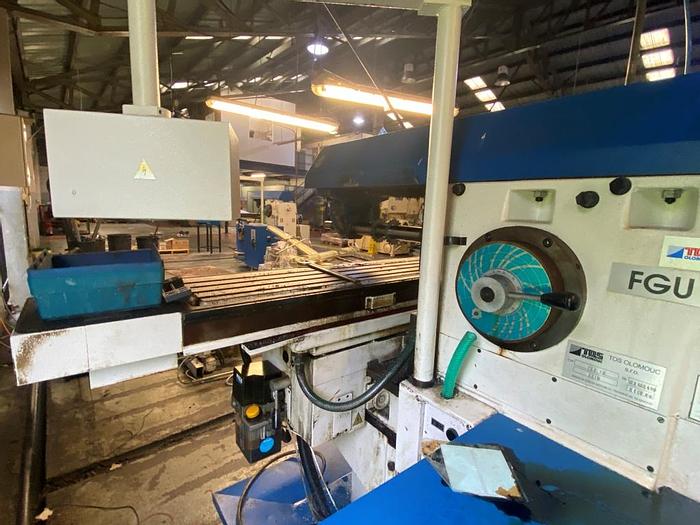

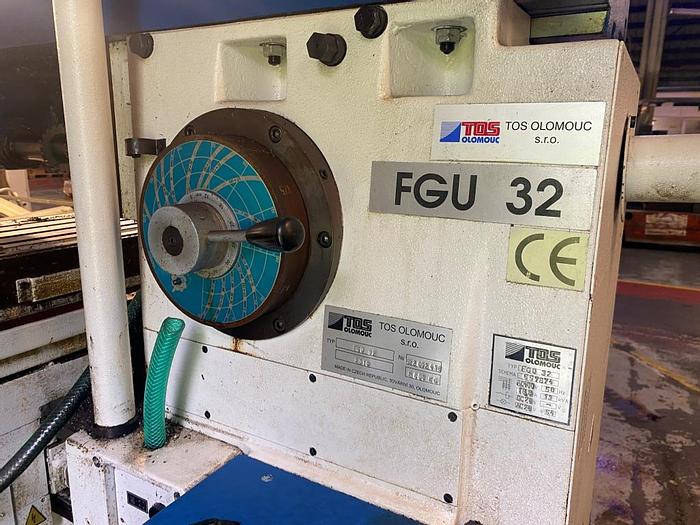

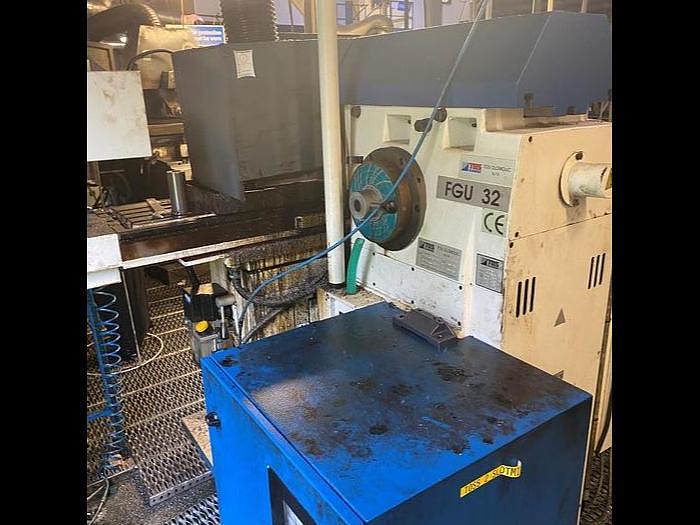

2010 TOS Olomouc FGU32 Horizontal Milling Machine
Description
2010 TOS Olomouc FGU 32 Horizontal Milling Machine
Year: 2010
Manufacturer: TOS Olomouc
Model: FGU 32
Condition: Very Good
Machine Description
The FGU32 type is a high efficiency production milling machine with horizontal spindle. It is designed for precision and productive milling of flat or box-section workpieces up to 250 kg weight occurring in the one-off or batch production.
The wide range of spindle speeds and feeds enables effective milling of all metals with tools made from a high speed steel or a hard-metal. The split cross table enables the longitudinal table to be swiveled about its vertical axis thereby considerably extending the technological possibilities of the machine.
Technical Specifications

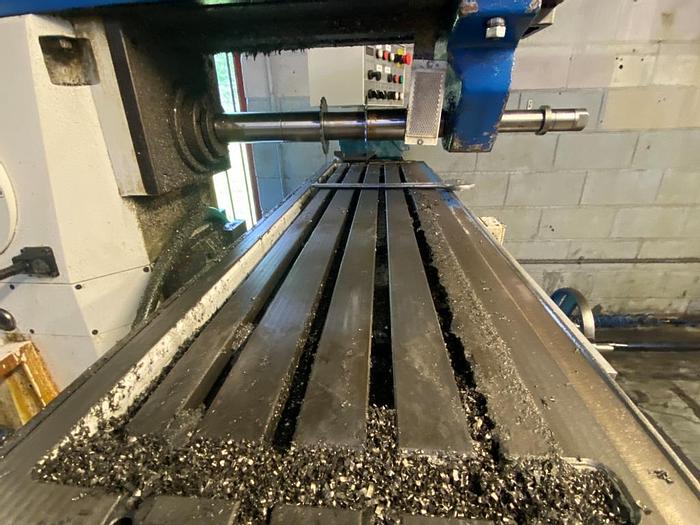

Table Size: 1400 x 360mm
X Axis Travel: 1020mm
Y Axis Travel: 300mm
Z Axis Travel: 435mm
Spindle Speeds: 31.5 - 1400rpm
Max Work-piece Weight: 250kg
Spindle Taper: ISO 50
Automatic Feeds: X,Y,Z (step-less)

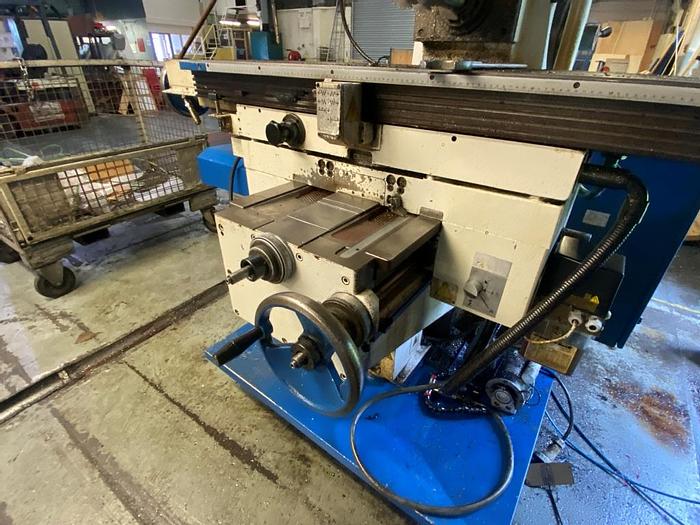

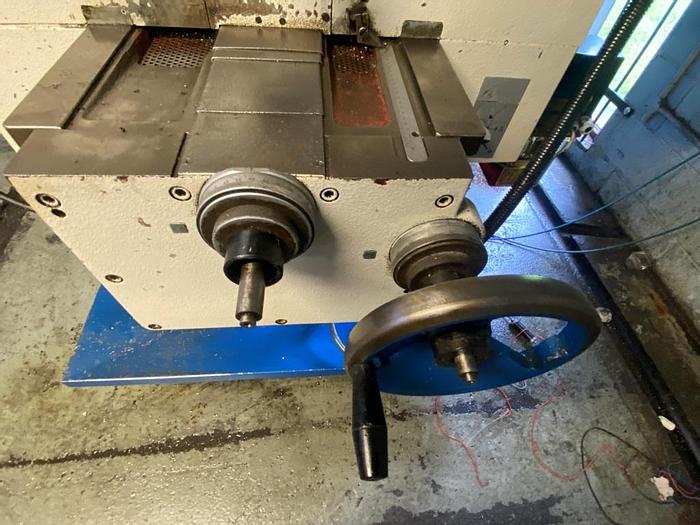

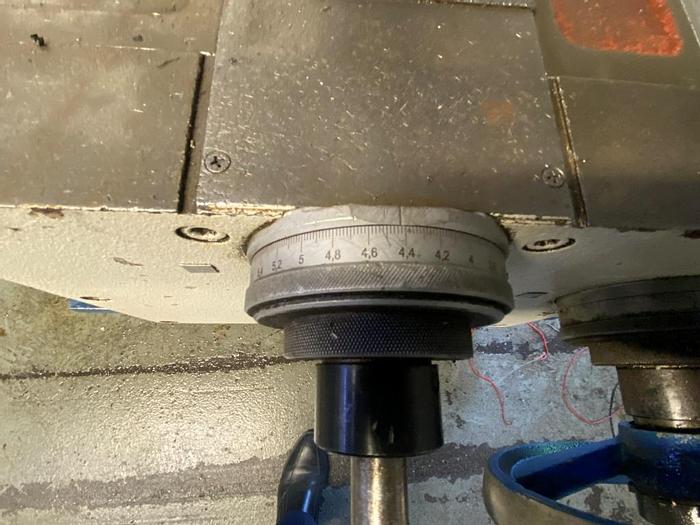

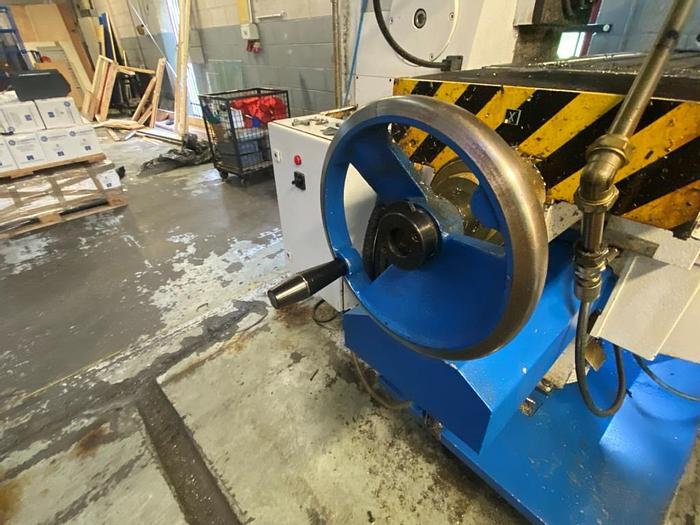

Hand-wheels in axes X,Y and Z with measuring dials - dividing 0,02 mm
Drive for special attachment
Climb-cut milling in longitudinal axis
Motor Power: 5.5kW

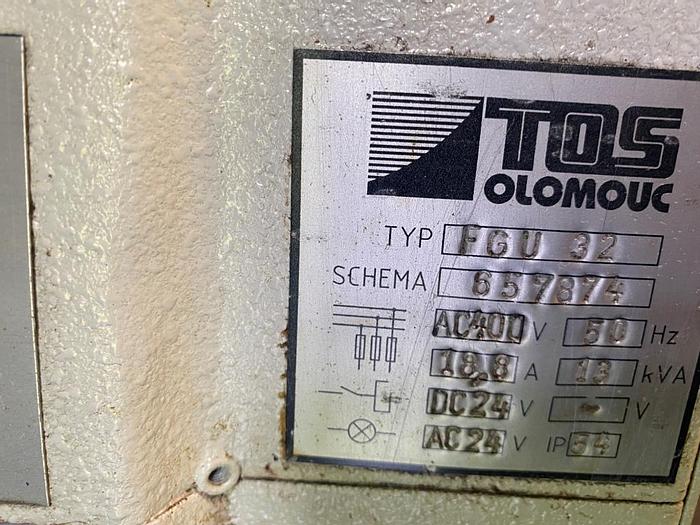

Total Input Power: 13kVA
Advantages
High rigidity and geometrical accuracy

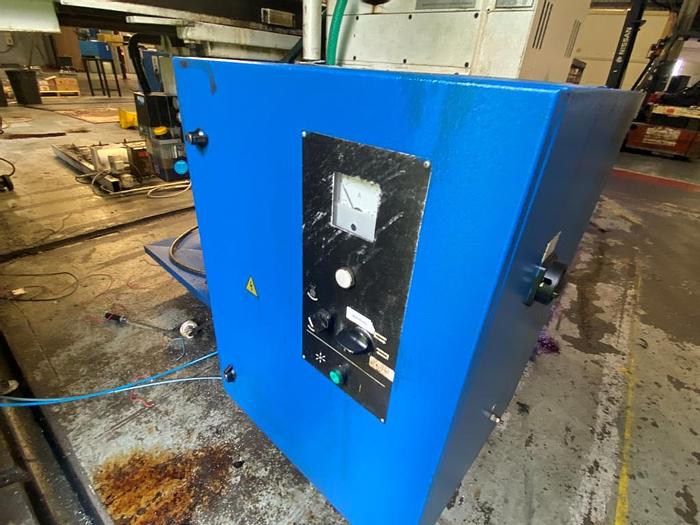

Step-less feeds in all 3 axes by means of a frequency converter
Hardened guideways
Climb-cut milling in longitudinal axis
Automatic working cycles in longitudinal axis with knee drop (Special execution)

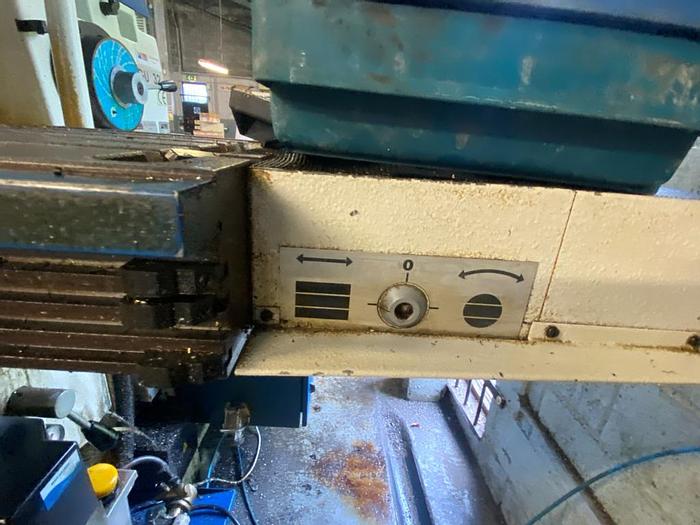

Swiveling of longitudinal table
Simple operation
Central lubrication system (manually operated)
Compact machine design
Machine Dimensions: 2995 x 2000 x 1980mm
Machine Weight: 1980kg
Specifications
Manufacturer | TOS Olomouc |
Model | FGU32 Horizontal Milling Machine |
Year | 2010 |
Condition | Used |

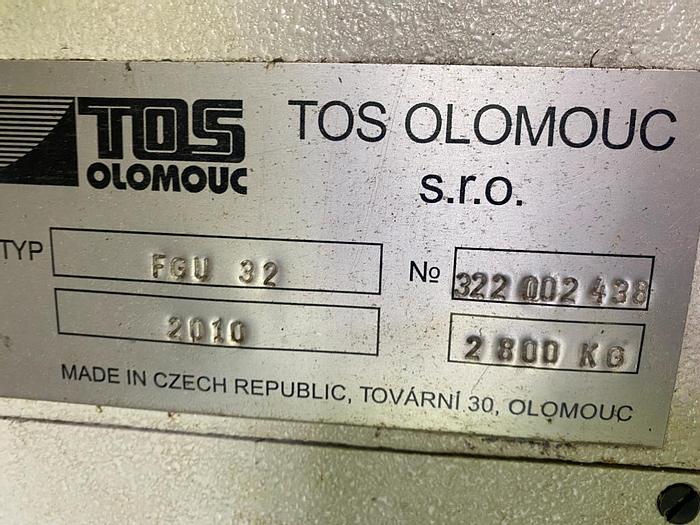

Serial Number | 322002438 |
Year | 2010 |
Manufacturer | TOS Olomouc |
Model | FGU 32 |
Table Size | 1400 x 360mm |
X Axis Travel | 1020mm |
Y Axis Travel | 300mm |
Z Axis Travel | 435mm |
Spindle Speeds | 31.5 - 1400rpm |
Max Work-piece Weight | 250kg |
Spindle Taper | ISO 50 |
Automatic Feeds | X,Y,Z (step-less) |
Motor Power | 5.5kW |
Total Input Power | 13kVA |
Machine Weight | 1980kg |
