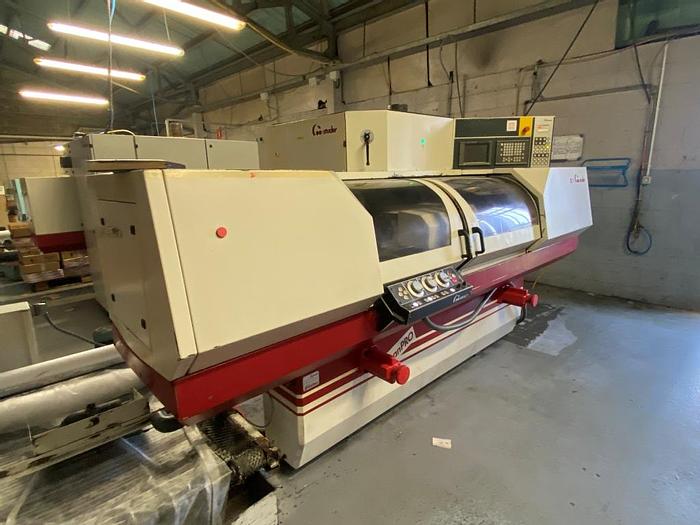

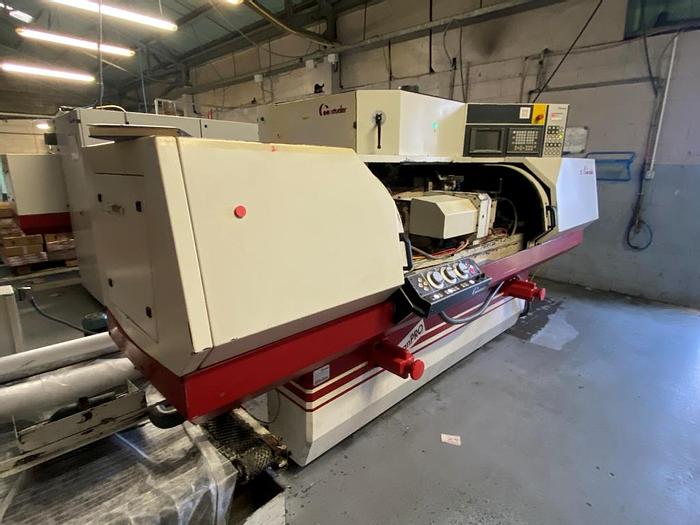

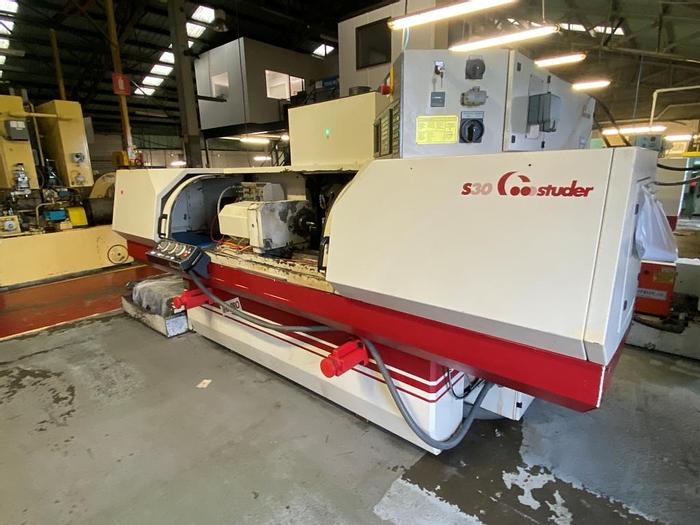

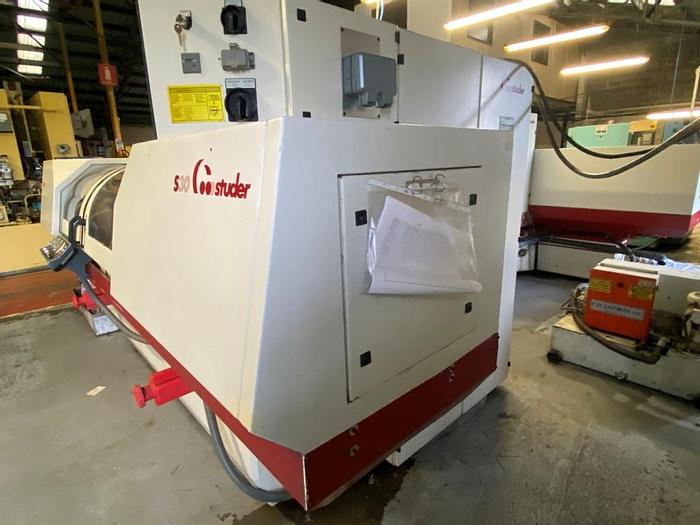

2000 Studer S30 Lean Pro CNC OD Cylindrical Grinder

1

Cork, Ireland

Sold

Description

2000 Studer S30 Lean Pro OD CNC Cylindrical Grinder


Year: 2000

Manufacturer: Studer

Model: S30 Lean Pro

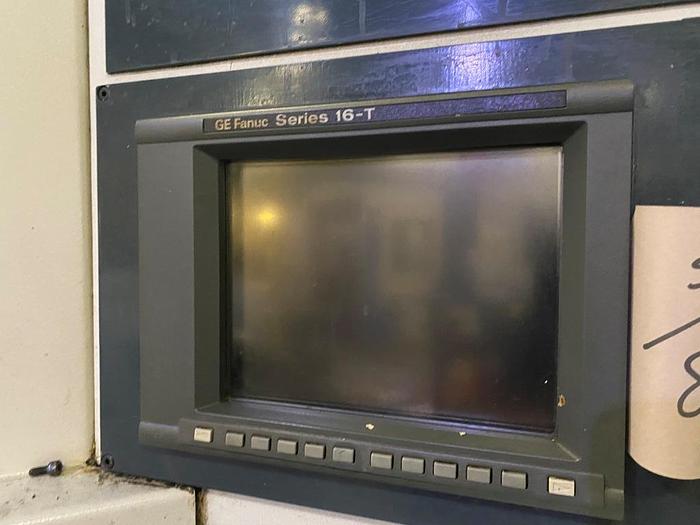

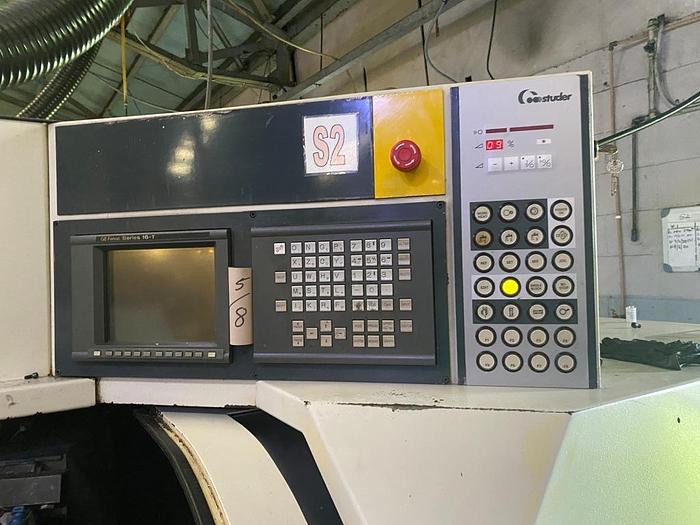

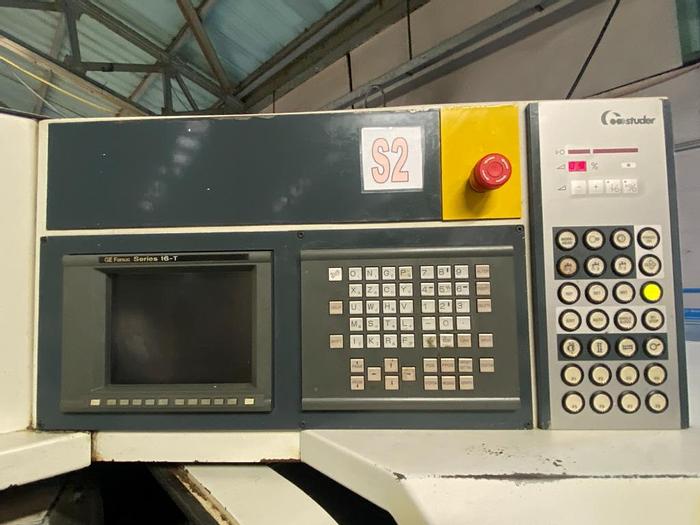

Control: Fanuc Series 16-T

Condition: This machine went through a complete refurbishment in 2018. No CE on this machine. No ID Spindle with Machine.


Technical Specifications

Swing - Max: 350mm

Centre Distance: 1000mm

Grinding length - Max: 960mm

Workpiece Weight - Max: 130kg


Z Axis (Longitudinal Slide)

Travel - Max: 1051mm

Speed - Infinitely Variable: 0.000001 to 10m/min

Resolution: 0.0001mm

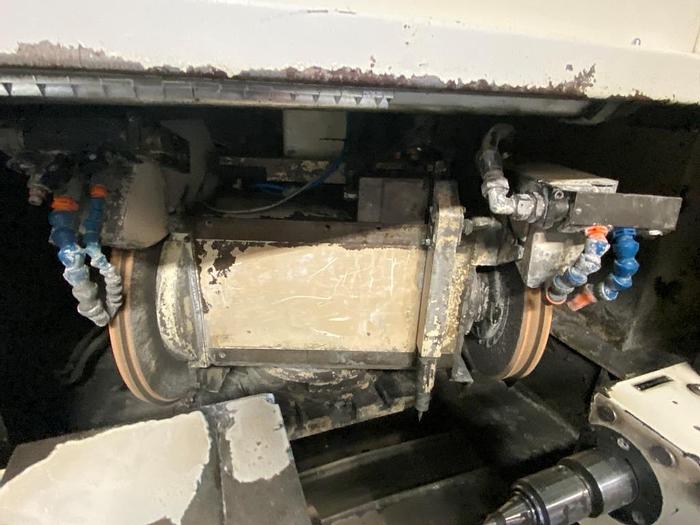

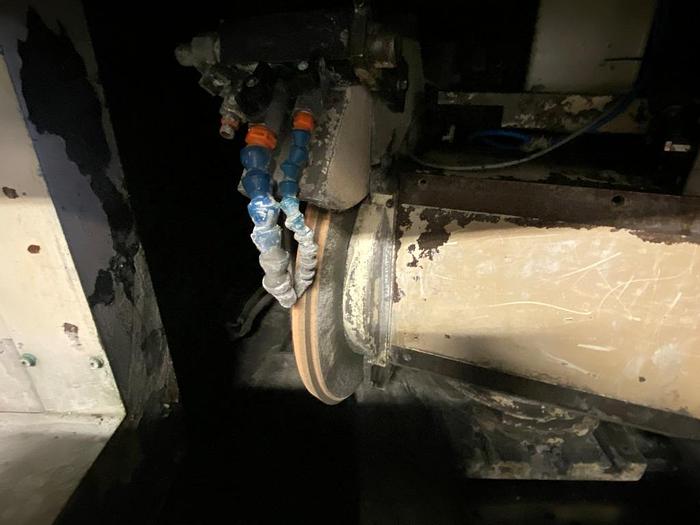

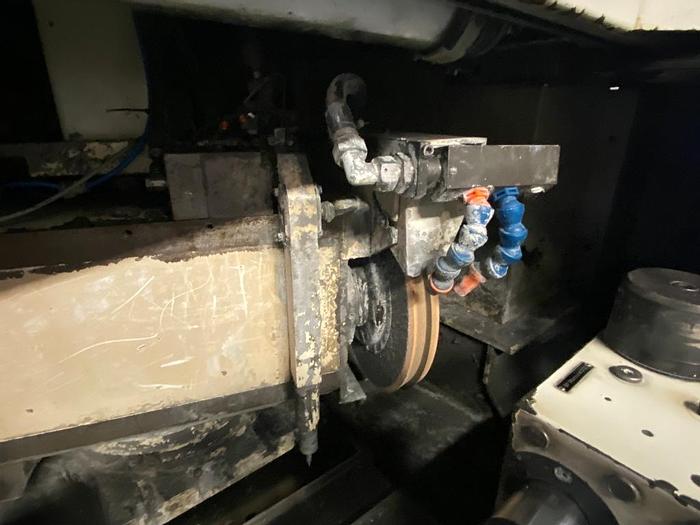

Turret Wheelhead

Swivel Range: -15 to 195 Degrees

Left Grinding Wheel Size: 19.7" Dia. x 3.15" Wide x 5" Bore

Right Grinding Wheel Size: 15.75" Dia. x 1.6" Wide x 5" Bore

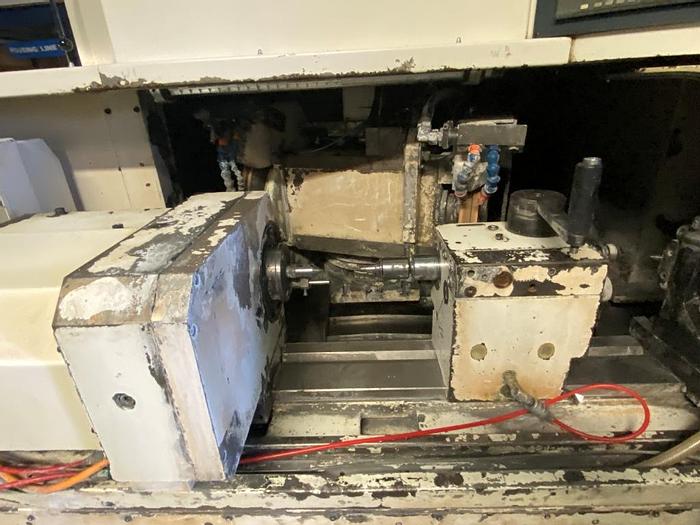

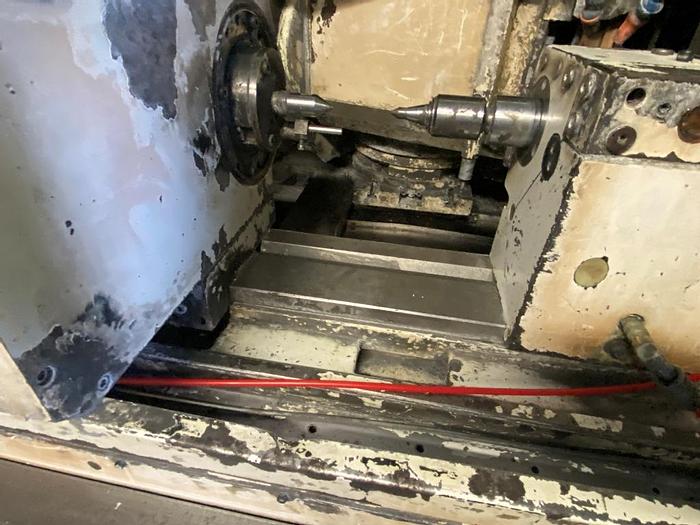

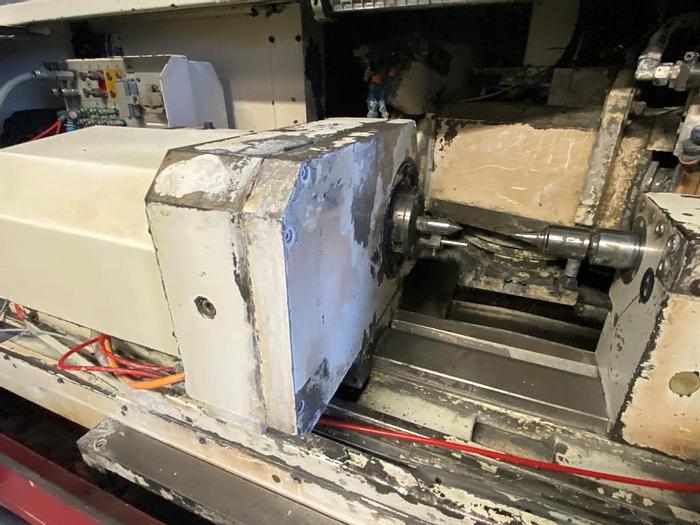

Tailstock

Taper: MT 3

Barrel Travel: 35mm


Main Spindle Motor: 10HP


Machine Dimensions: 3710 x 2160 x 2290mm

Machine Weight: 6000kg



Show All

Specifications

ManufacturerStuder
ModelS30 Lean Pro CNC OD Cylindrical Grinder
Year2000
ConditionUsed

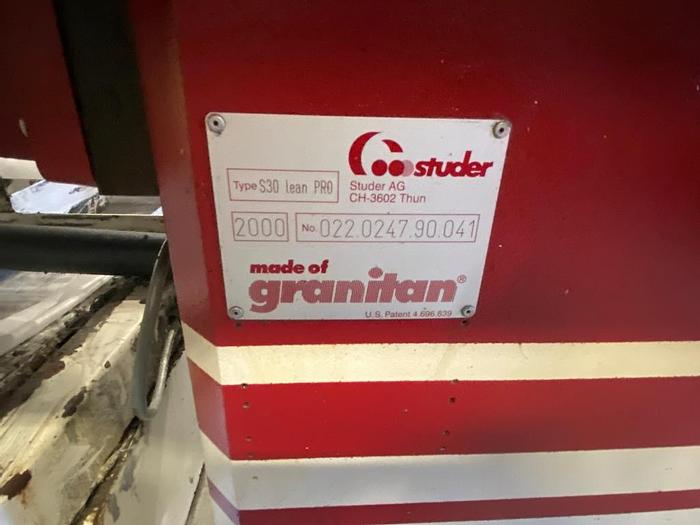

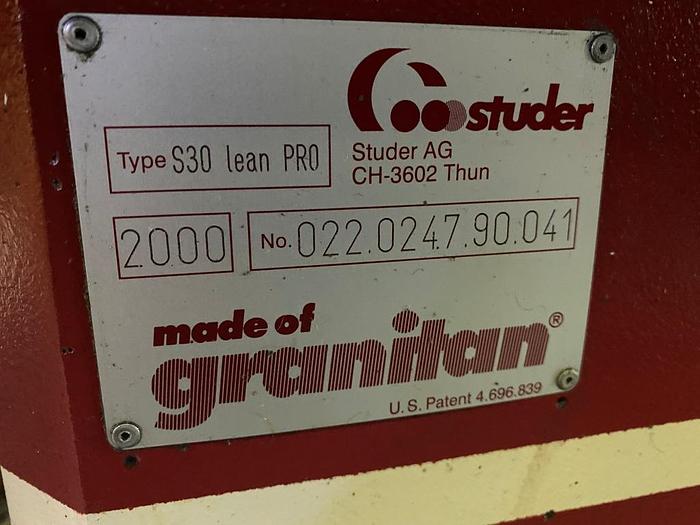

Serial Number022.0247.90.041
ManufacturerStuder
ModelS30 Lean Pro
Year2000
ControlFanuc Series 16-T
Swing - Max350mm
Centre Distance1000mm
Grinding length - Max960mm
Workpiece Weight - Max130kg
Travel - Max1051mm
Speed - Infinitely Variable0.000001 to 10m/min
Resolution0.0001mm
Swivel Range-15 to 195 Degrees
Tailstock Barrel Travel35mm
Tailstock TaperMT 3
Main Spindle Motor10HP
Machine Weight6000kg
