2000 Kitamura Mycenter HX250i Horizontal Machining Center
Sold
Description
2000 Kitamura Mycenter HX250i Horizontal Machining Center
Year: 2000

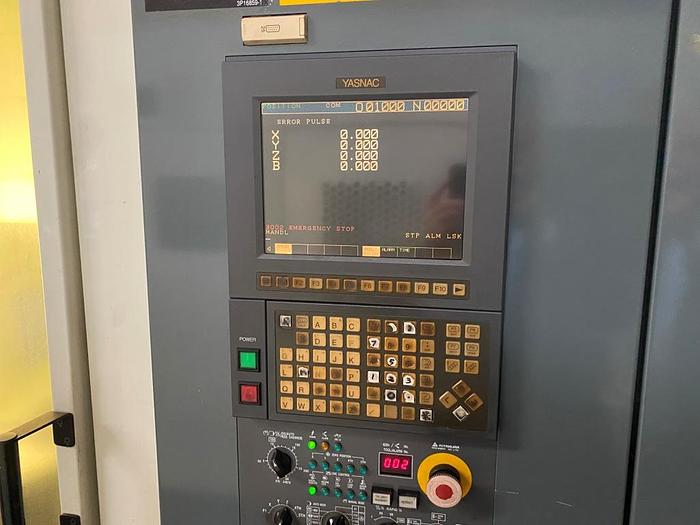

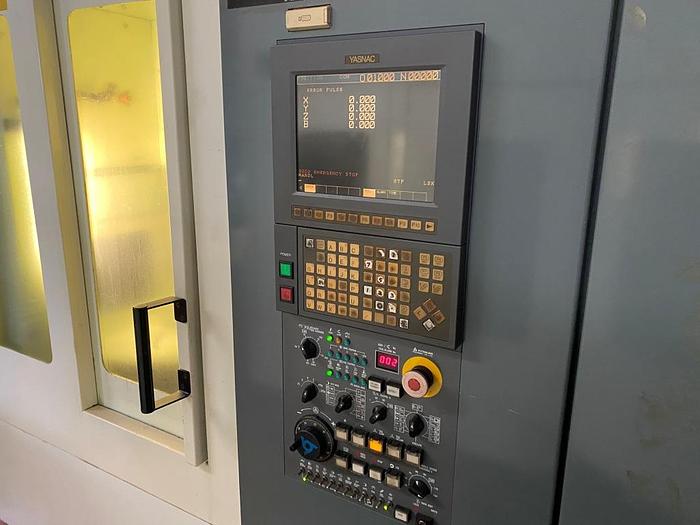

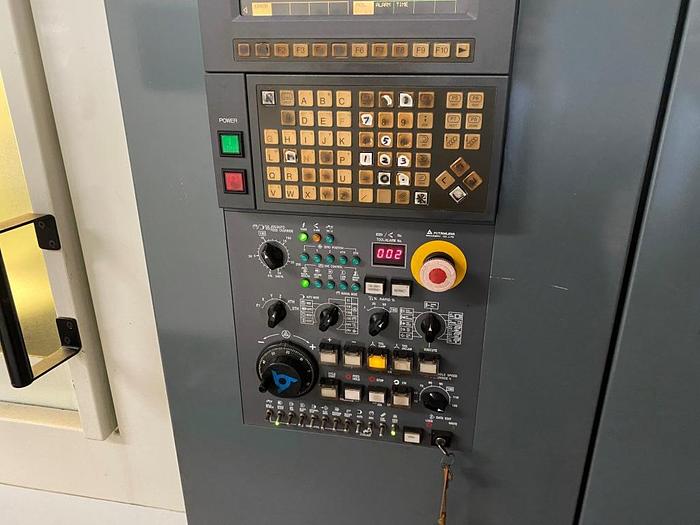

Control: Yasnac i80
Technical Specification

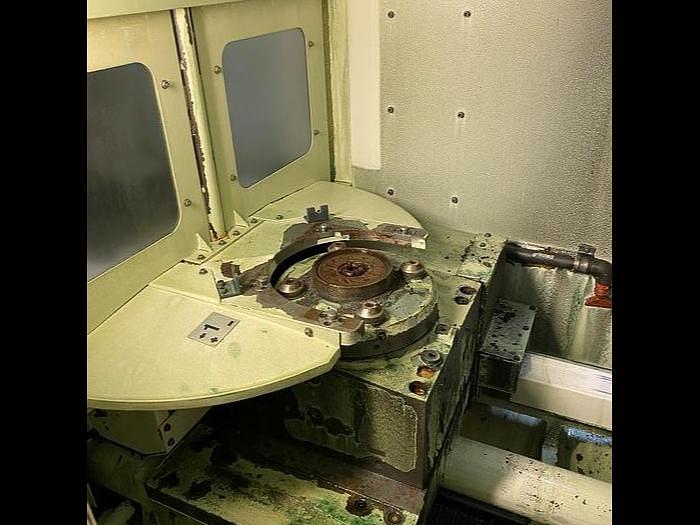

No. of Pallets: 2
Pallet Size: 254 x 254mm
X axis Travel: 305mm
Y Axis Travel: 305mm
Z Axis Travel: 330mm
B Axis Travel: 0.001 - 360 Degrees
Rapid Traverse X: 48m/min
Rapid Traverse Y: 48m/min
Rapid Traverse Z: 48m/min
Rapid Traverse B:108000 deg/min
Max Workpiece Dia: 350mm
Max Workpiece Height: 400mm
Max Workpiece Weight: 100kg
Table Surface to Spindle: 60-365mm
Table Centre to Spindle Nose: 60-390mm

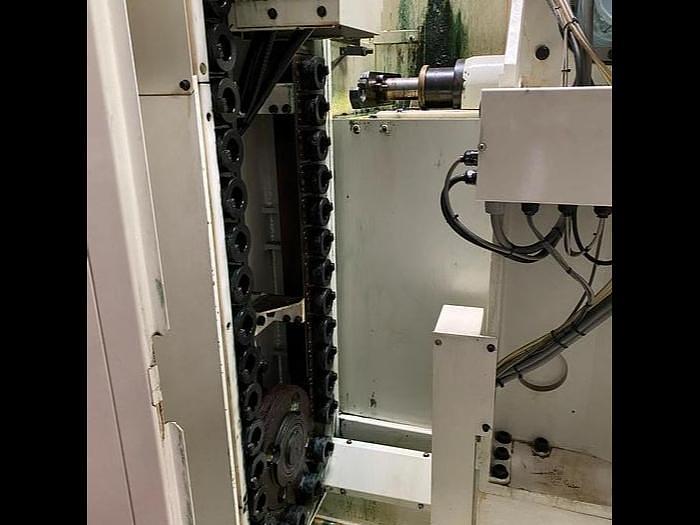

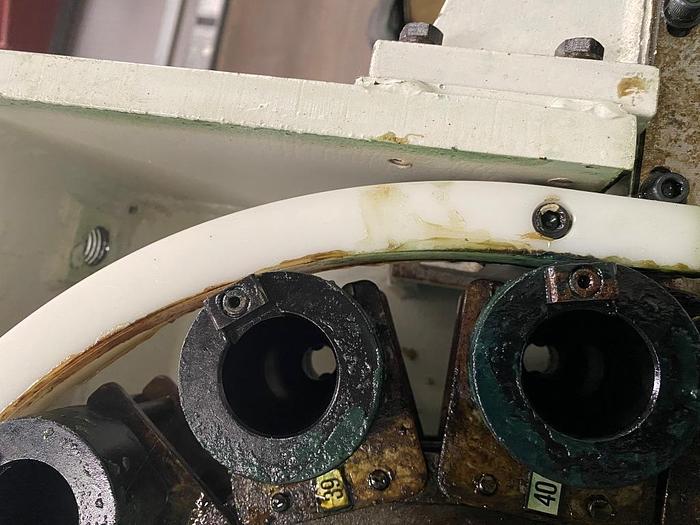

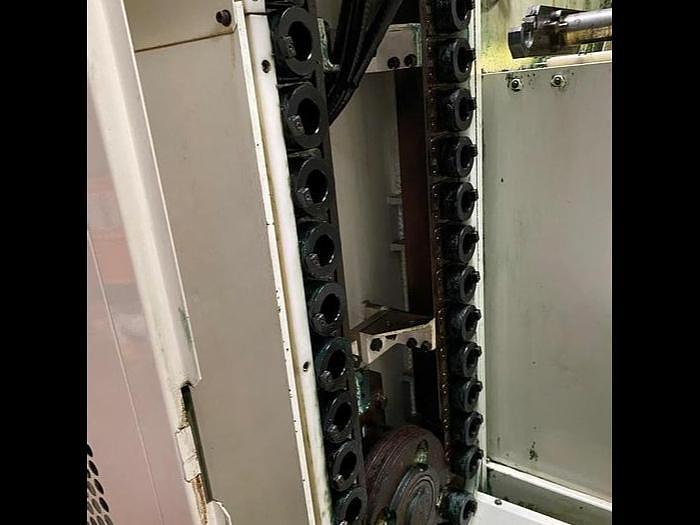

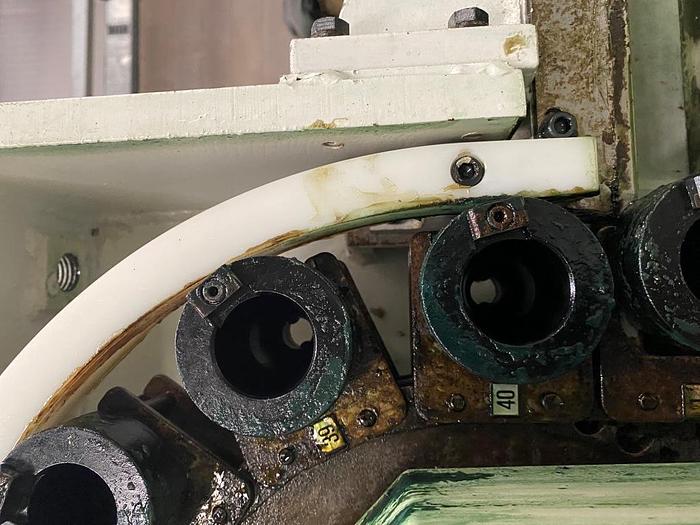

ATC: 40 Places
Spindle Taper: BT30
Spindle Speed: 15,000rpm
Max Tool Weight: 2kg
Max Tool Diameter: 50mm
Max Tool Diameter with empty adjacent pocket: 75mm
Max Tool Length: 200mm
Machine Dimensions(approx): 2330 x 2950 x 2470mm
Weight: 4500kg
Specifications
| Manufacturer | Kitamura |
| Model | Mycenter HX250i Horizontal Machining Center |
| Year | 2000 |
| Condition | Used |

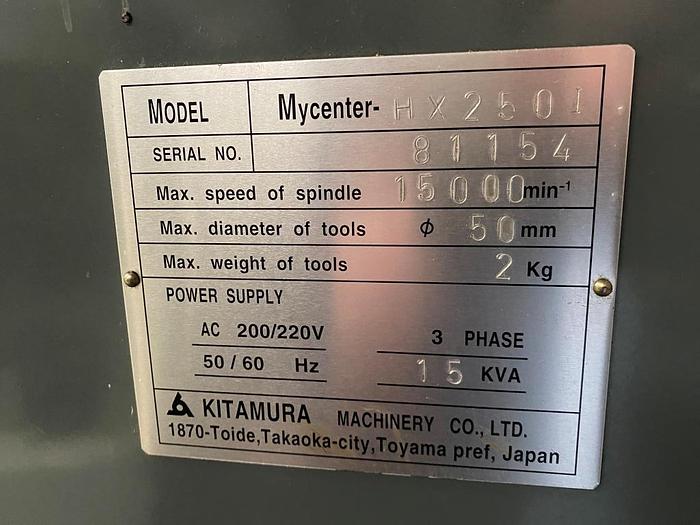

| Serial Number | 81154 |
| Year | 2000 |
| Control | Yasnac i80 |
| No. of Pallets | 2 |
| Pallet Size | 254 x 254mm |
| X axis Travel | 305mm |
| Y Axis Travel | 305mm |
| Z Axis Travel | 330mm |
| B Axis Travel | 0.001 - 360 Degrees |
| Rapid Traverse X | 48m/min |
| Rapid Traverse Y | 48m/min |
| Rapid Traverse Z | 48m/min |
| Rapid Traverse B | 108000 deg/min |
| Max Workpiece Dia | 350mm |
| Max Workpiece Height | 400mm |
| Max Workpiece Weight | 100kg |
| Table Surface to Spindle | 60-365mm |
| ATC | 40 Places |
| Spindle Taper | BT30 |
| Spindle Speed | 15,000rpm |
| Max Tool Weight | 2kg |
| Max Tool Diameter | 50mm |
| Max Tool Length | 200mm |
| Weight | 4500kg |
