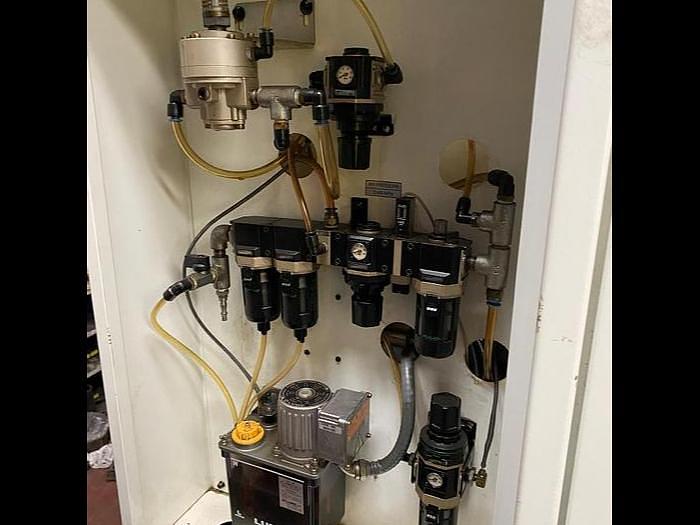

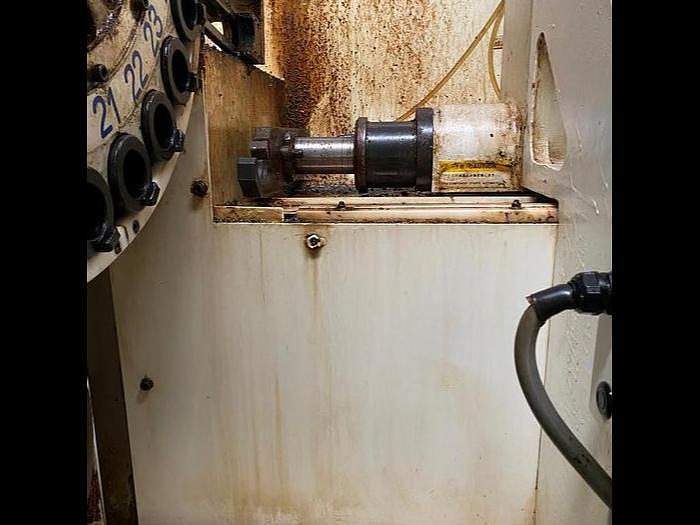

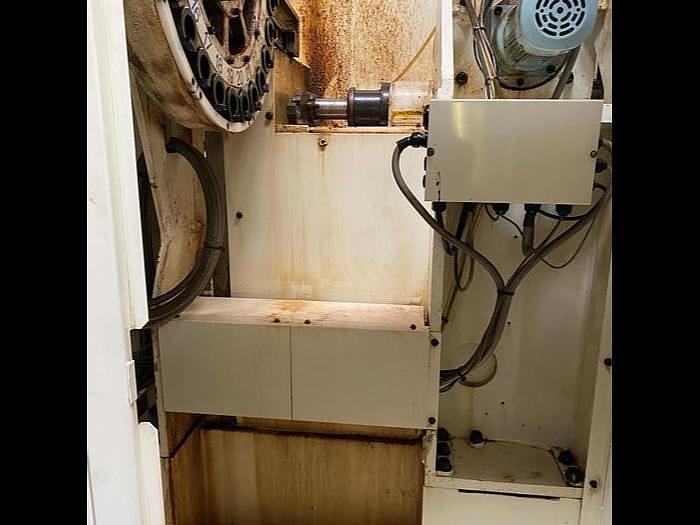

1998 Kitamura Mycenter HX250 Horizontal Machining Center

1

Cork, Ireland

Sold

Description

1998 Kitamura Mycenter HX250 Horizontal Machining Center


Year: 1998

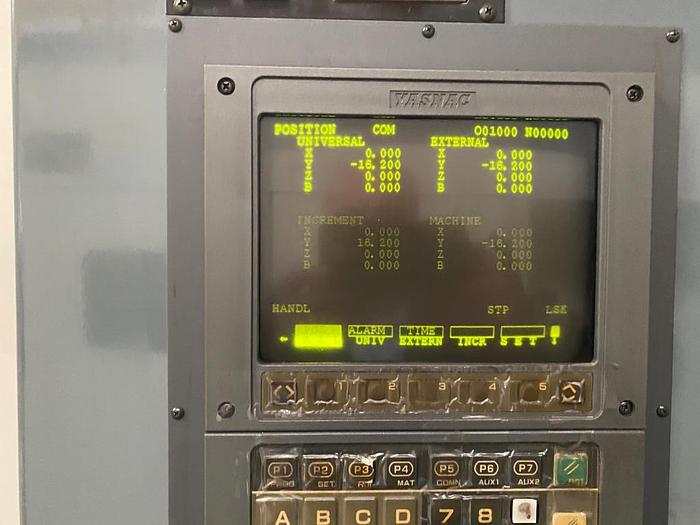

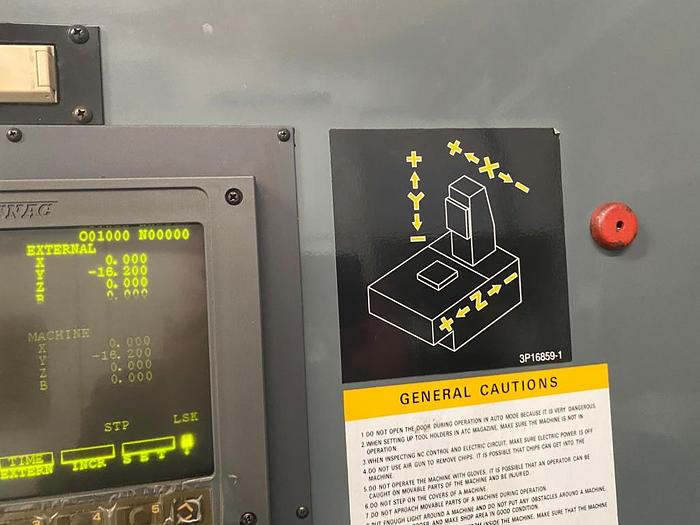

Control: Yasnac i80


Technical Specification

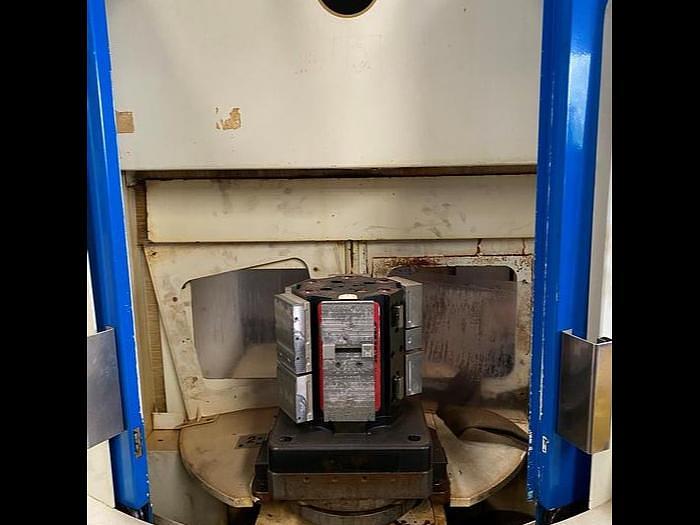

No. of Pallets: 2

Pallet Size: 254 x 254mm

X axis Travel: 305mm

Y Axis Travel: 305mm

Z Axis Travel: 330mm

B Axis Travel: 0.001 - 360 Degrees


Rapid Traverse X: 48m/min

Rapid Traverse Y: 48m/min

Rapid Traverse Z: 48m/min

Rapid Traverse B:108000 deg/min


Max Workpiece Dia: 350mm

Max Workpiece Height: 400mm

Max Workpiece Weight: 100kg


Table Surface to Spindle: 60-365mm

Table Centre to Spindle Nose: 60-390mm

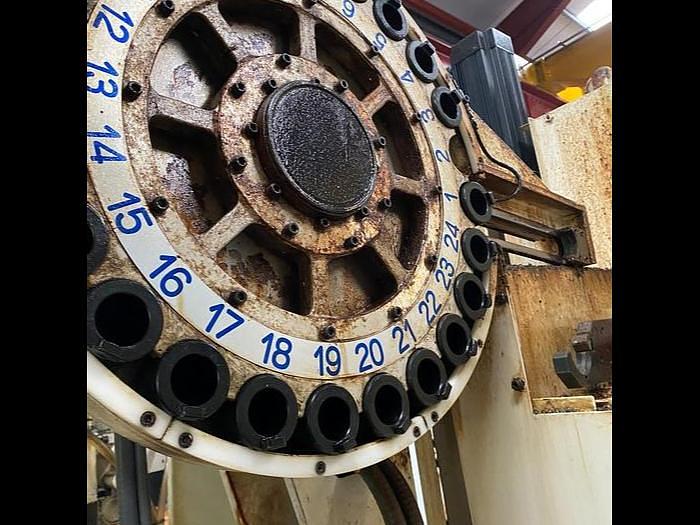

ATC: 40 Places

Spindle Taper: BT30

Spindle Speed: 8,000rpm

Max Tool Weight: 2kg

Max Tool Diameter: 50mm

Max Tool Diameter with empty adjacent pocket: 75mm

Max Tool Length: 200mm


Machine Dimensions(approx): 2330 x 2950 x 2470mm

Weight: 4500kg


Show All

Specifications

ManufacturerKitamura
ModelMycenter HX250 Horizontal Machining Center
Year1998
ConditionUsed

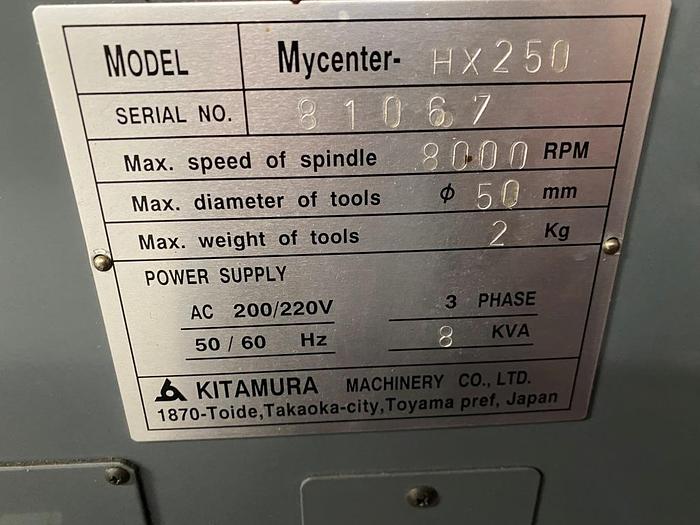

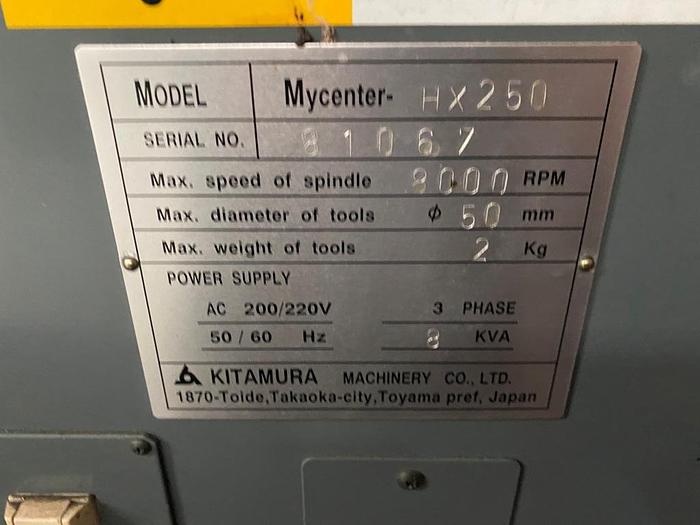

Serial Number81067
Year1998
ControlYasnac i80
No. of Pallets2
Pallet Size254 x 254mm
X axis Travel305mm
Y Axis Travel305mm
Z Axis Travel330mm
B Axis Travel0.001 - 360 Degrees
Rapid Traverse X48m/min
Rapid Traverse Y48m/min
Rapid Traverse Z48m/min
Rapid Traverse B108000 deg/min
Max Workpiece Dia350mm
Max Workpiece Height400mm
Max Workpiece Weight100kg
Table Surface to Spindle60-365mm
ATC40 Places
Spindle TaperBT30
Spindle Speed8,000rpm
Max Tool Weight2kg
Max Tool Diameter50mm
Max Tool Length200mm
Weight4500kg
