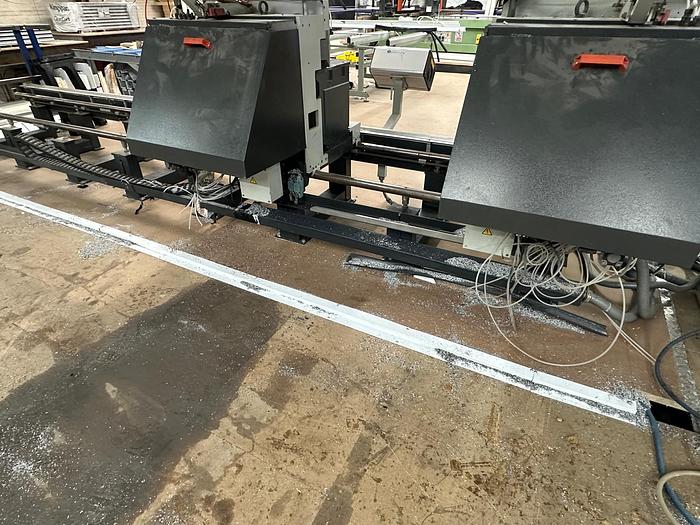

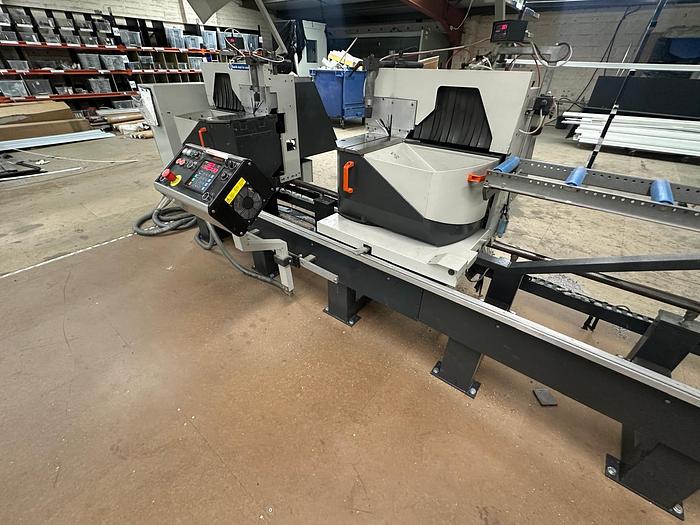

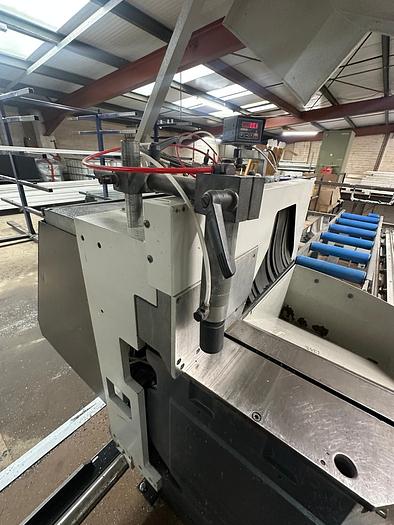

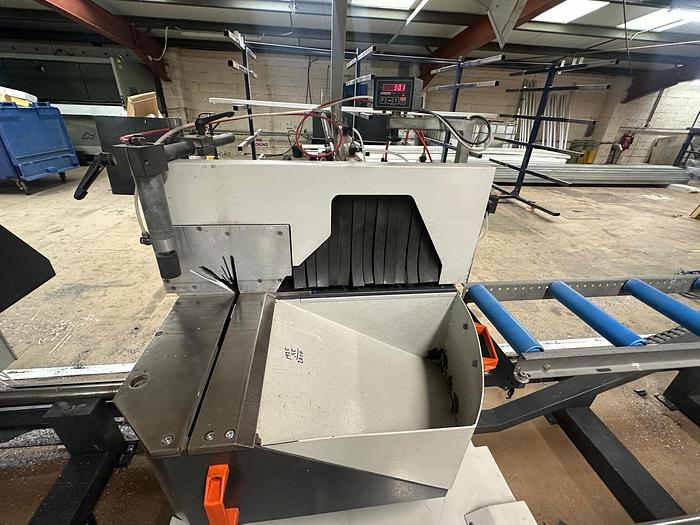

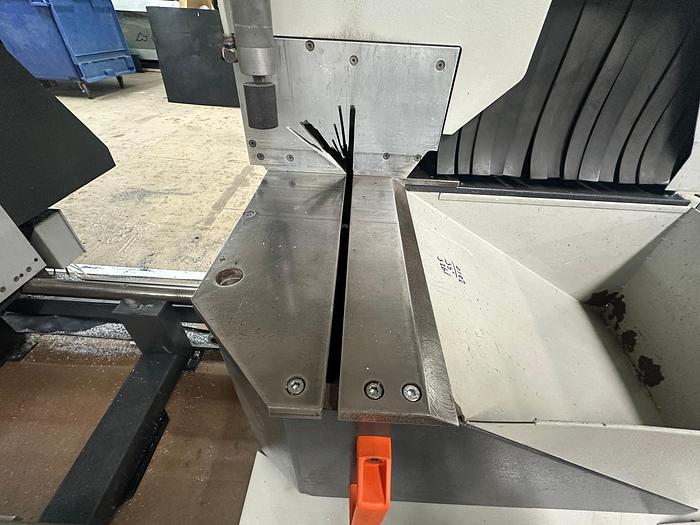

Elumatec DG104 Double Head Saw
Description
Elumatec DG 104 Double Head Mitre Saw
Machine Type: Double Head Mitre Saw
Year: 2000
Condition: Good
Description
The optimum double mitre saw for aluminium profile processing suitable for the series production as well as for special applications.
The universal pivoting and tilting of both saw heads allows cutting of high and wide profiles or some profiles together. Many of them can be cut without support blocks. Possibility of cutting compound mitres.
Technical Specifications
Saw Blade Diameter: 420mm
Saw Blade Bore: 30mm
Cutting Capacity: See chart in photos
Pivoting Range Inwards: 90° - 45°
Tilting Power: Pneumatic
Manual Pivoting Range: 22.5°
Min Cutting Length 90°: 335mm
Min Cutting Length 45: 335mm
Max Cutting Length: 3000mm
Power Supply: 400V/3ph/50Hz
Power Output: 4kW Motors
Speed: 2500rpm
Compressed Air Supply: 7 Bar
Compressed Air Consumption: 40L per Cycle
Machine Dimensions: 4550 x 1600 x 1450mm
Machine Weight: 1340kg
Specifications
| Manufacturer | Elumatec |
| Model | DG104 Double Head Saw |
| Year | 2000 |
| Condition | Used |
| Stock Number | 968848 |
| Machine Type | Double Head Mitre Saw |
| Year | 2000 |
| Condition | Good |
| Saw Blade Diameter | 420mm |
| Saw Blade Bore | 30mm |
| Cutting Capacity | See chart in photos |
| Pivoting Range Inwards | 90° - 45° |
| Tilting Power | Pneumatic |
| Manual Pivoting Range | 22.5° |
| Min Cutting Length 90° | 335mm |
| Min Cutting Length 45 | 335mm |
| Max Cutting Length | 3000mm |
| Power Supply | 400V/3ph/50Hz |
| Power Output | 4kW Motors |
| Speed | 2500rpm |
| Compressed Air Supply | 7 Bar |
| Compressed Air Consumption | 40L per Cycle |
| Machine Weight | 1340kg |
