DR. Fritsch CSP 100 Sintering Press

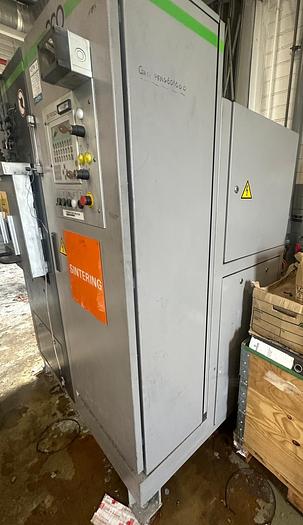

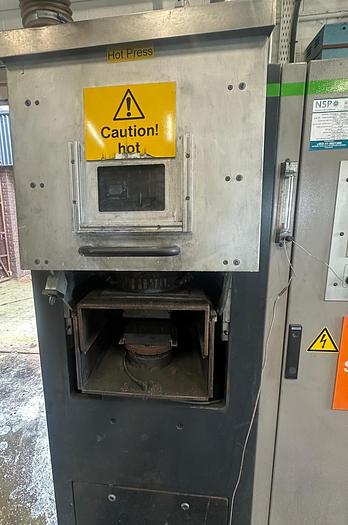

DR. Fritsch CSP 100 Compact Sintering Press

Machine Type: Sintering Press

Year: 2002 (Installed in 2004)

Condition: Very Good (Decommissioned)

Includes

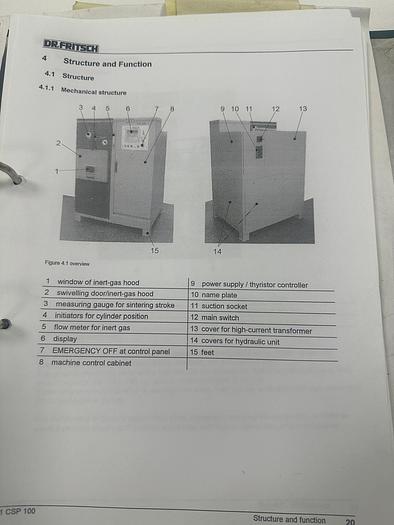

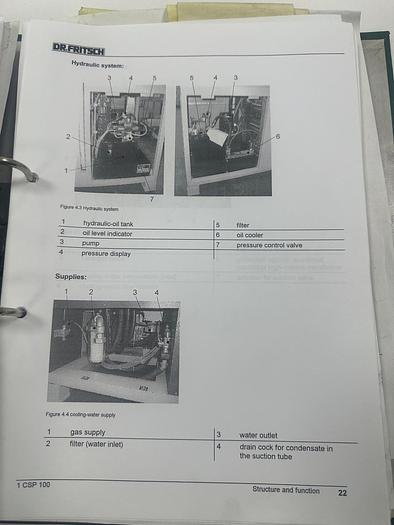

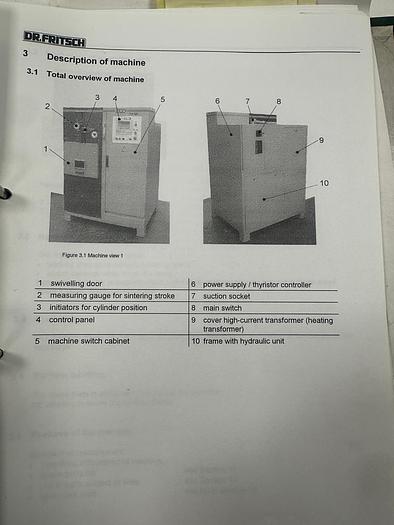

Manual

Description

For pressure sintering of metal bonds, ceramic bonds and synthetic resins

Main features:

Entry-level sintering press

Precise control of sintering parameters (temperature, pressure, time).

Flexibility:

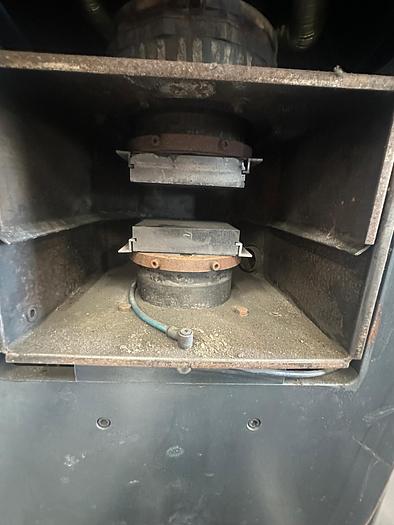

Shortest cycle times due to direct heating of the mould (typical sintering time depending on product: 15 - 45 min).

Can also be used for the smallest sintering surfaces.

Low graphite costs:

Closed inert gas device.

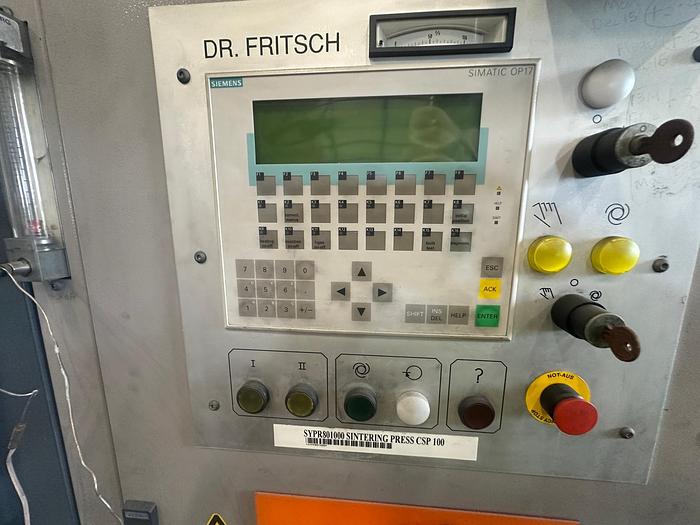

Simple operation:

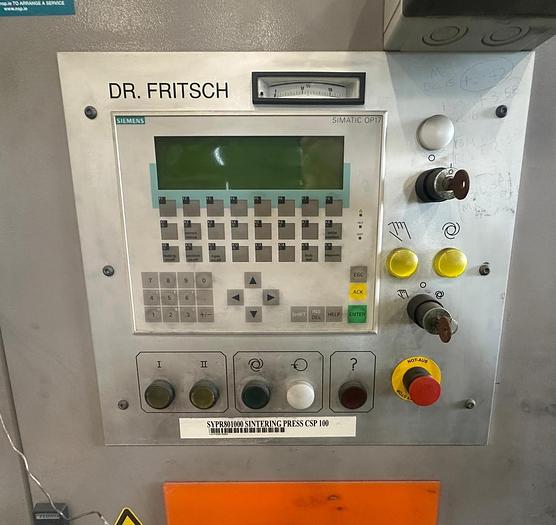

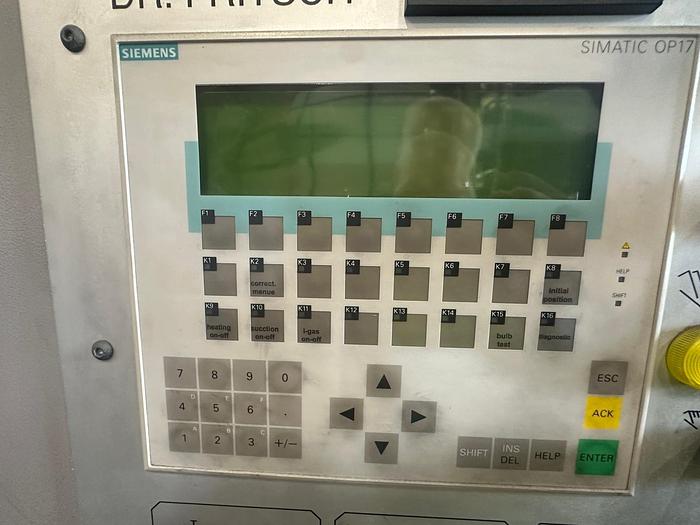

Touch-screen control panel.

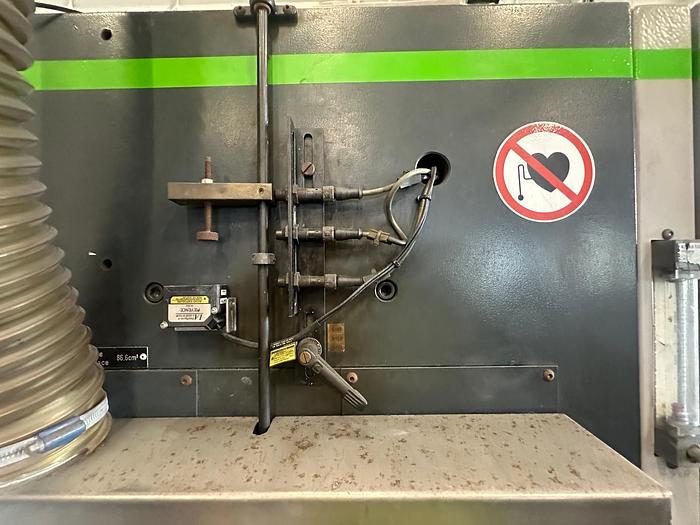

Variable input of pressing parameters via hydraulic pressure (bar).

Programmable control with the option of saving complete sintering programmes

Easy maintenance due to good accessibility of the main components.

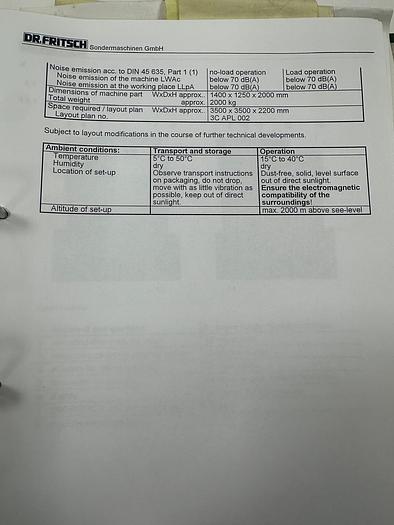

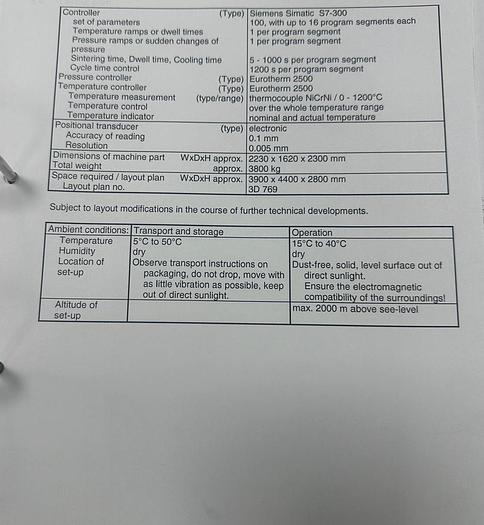

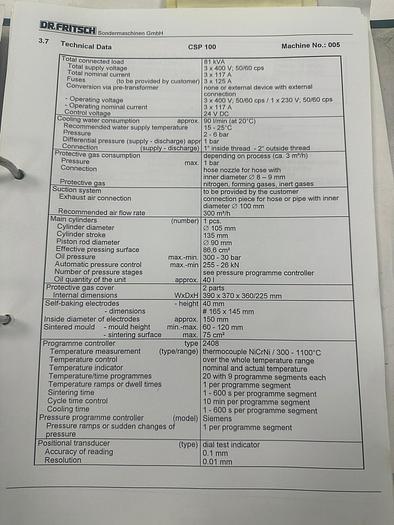

Technical Specification

Pressing force - normal switching:  26– 255 kN

Effective pressing area of cyl.: 86,6 cm²

Oil pressure: 30 – 300 bar (3,0 – 30 MPa)

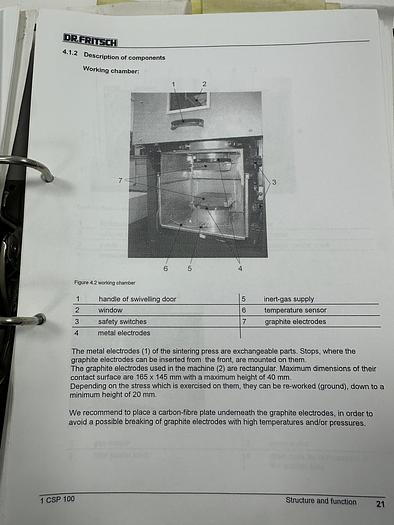

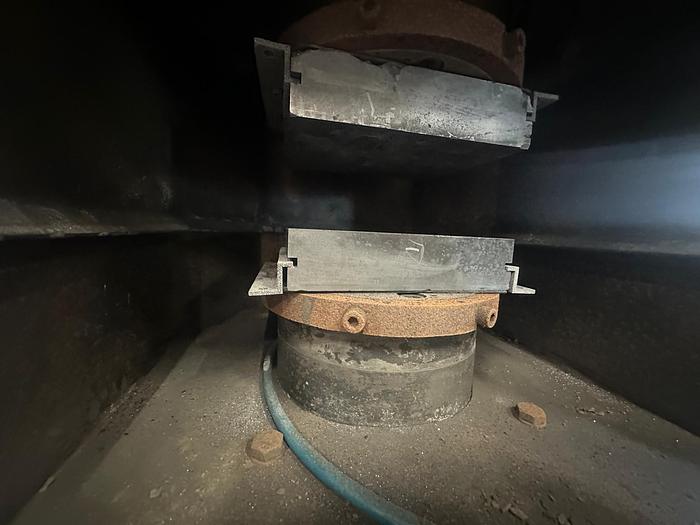

Graphite electrodes dimensions (WxDxH): 165 x 145 x 40 mm

Internal Dimensions: 390x370x360mm

Max./min. opening height: 150 / 15 mm

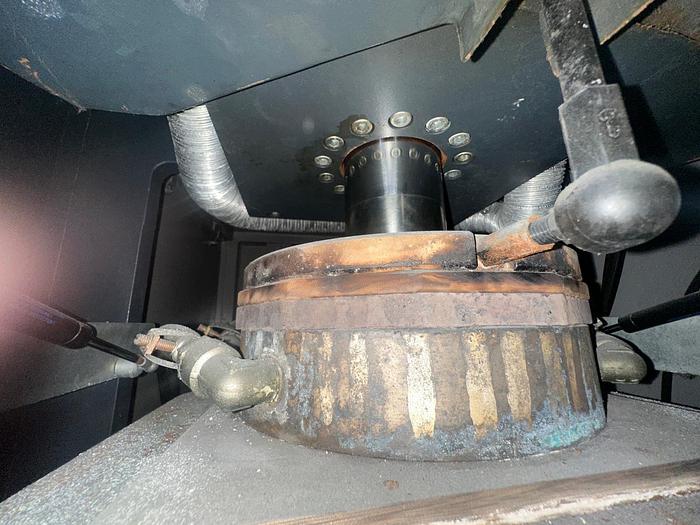

Cylinders: 1

Cylinder Diameter: 105mm

Cylinder Stroke: 135mm

Piston Rod Diameter: 90mm

Specific resistance: 12 – 14 µΩm

Temperature control (single-channel) thermocouple Ni-Cr-Ni: 0 – 1.200 °C

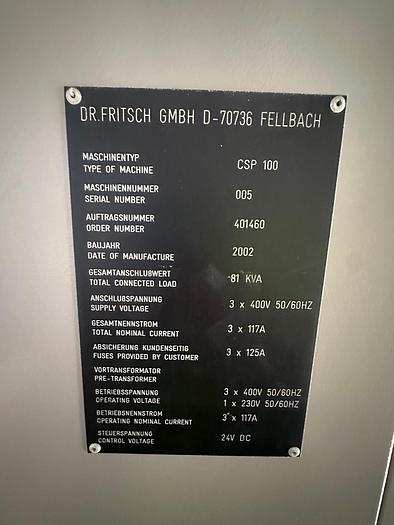

Total electric power: approx. 81 kVA

Max. heating power: 79 kVA

Supply voltage: 3 x 400 V, 50/60 Hz

Total electric load: 3 x 120 A

Cooling water consumption: approx. 90 l/min (at 20 °C)

Recommended water supply temperature: 15 – 25 °C

Water pressure: 2 – 4 bar

Differential pressure (supply – discharge): 1 – 2 bar

Inert gas consumption: approx. 500 l/h

Inert gas pressure: 1 bar

Inert gas types: nitrogen, forming gas (max. 5 % H2), noble gas

Dimensions: 1400x1250x2200mm

Weight: 2000kg
