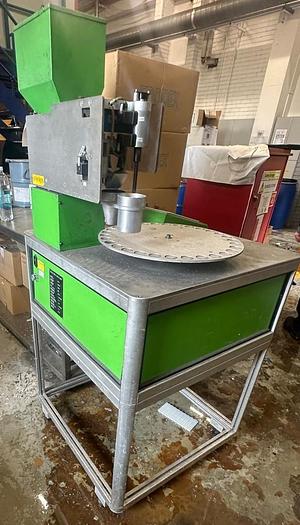

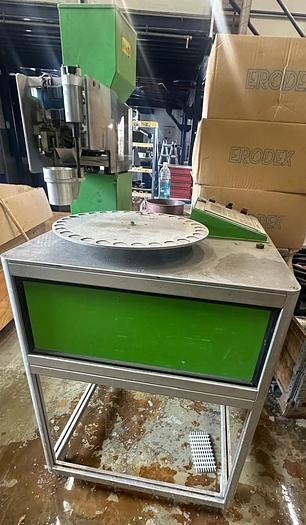

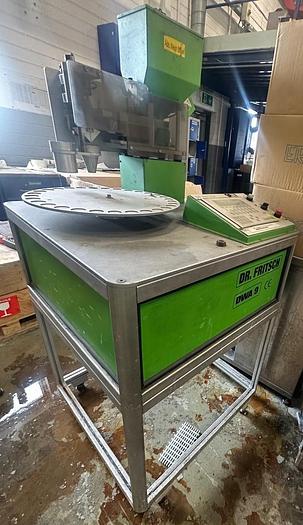

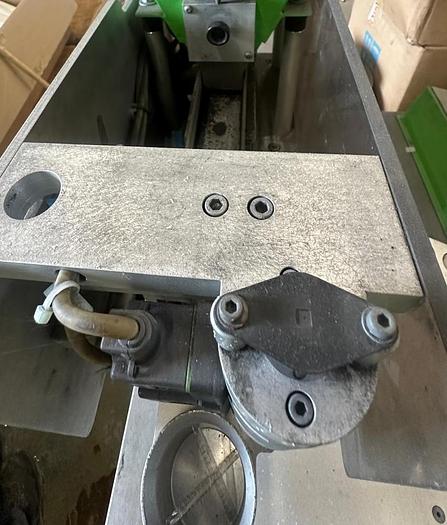

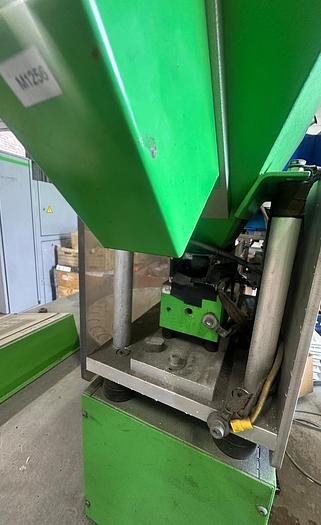

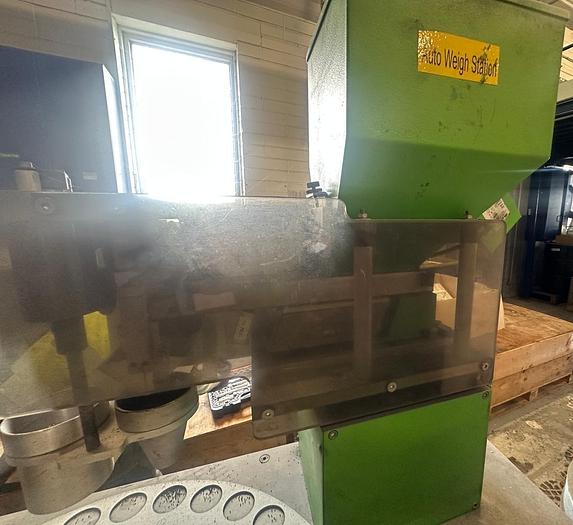

DR. Fritsch DWA 9 Dosing & Weighing Machine

DR Fritsch DWA 9 Dosing & Weighing Machine

Machine Type: Dosing & Weighing Machine

Year: 2008

Condition: Very Good (Decommissioned)

Includes

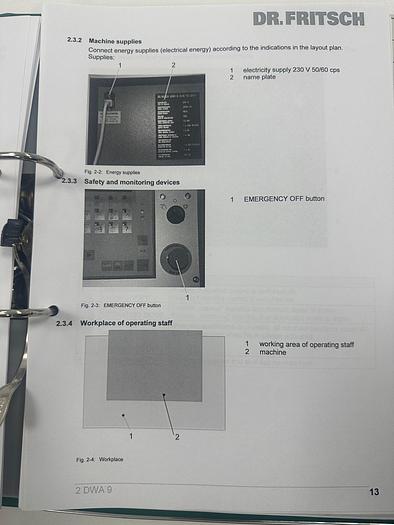

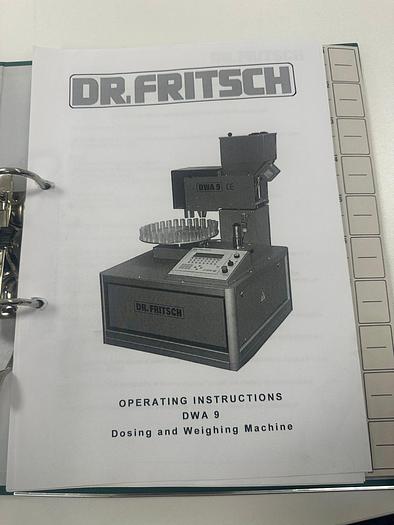

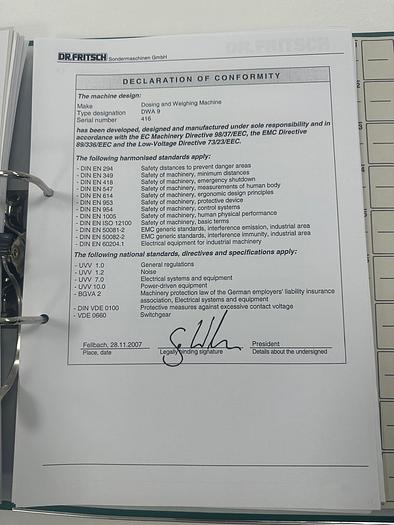

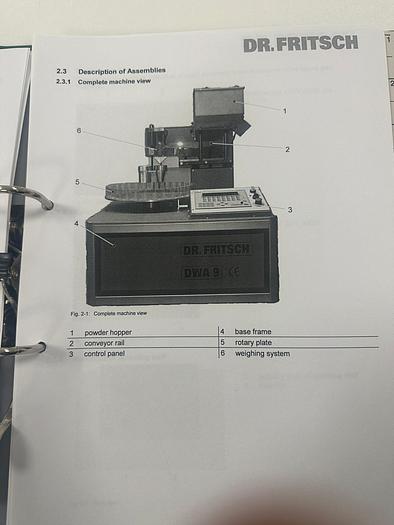

Manual

Support Frame

Description

Dosing machine for dry powder mixtures

Precise weighing results through constructive measures to avoid disturbing influences (such as e.g. draughts, shocks, vibrations) on the weighing structure

Main features:

PLC-controlled machine cycle with data input via touch panel

Self-diagnostics with error indication on display

Self-optimisation after each weighing process

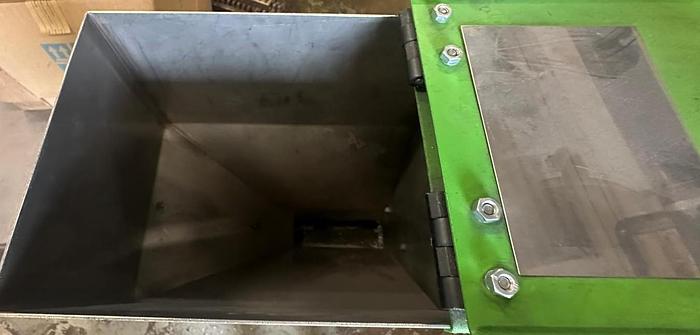

Quick emptying of the powder hopper

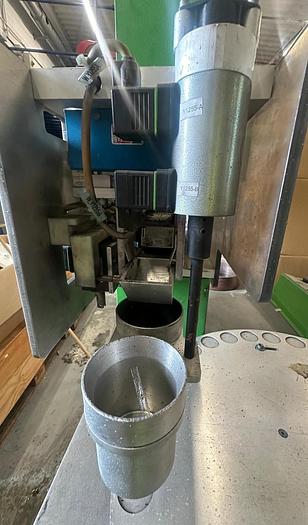

Protection of the vibratory conveyor against metal dust

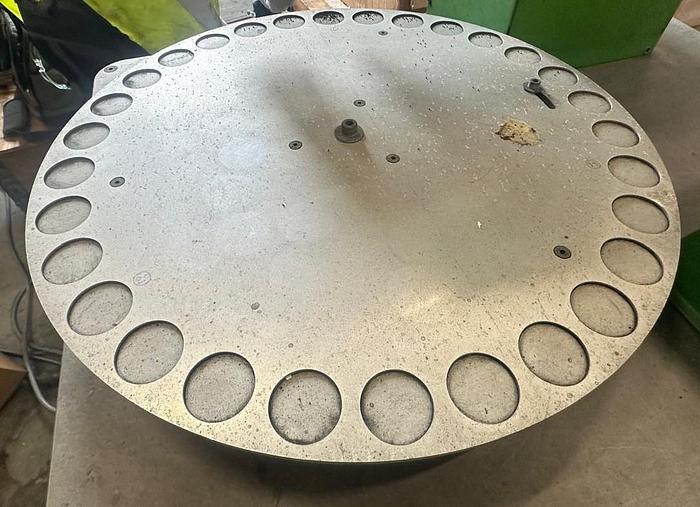

30 weighing slots

Conversion from grams to carats

Conversion to other weights or powder types

Tool-free disassembly of all powder-carrying parts for quick cleaning and/or blow-out to avoid powder carry-over and reduce downtime

Constant filling quantities due to automatic ejection of incorrect weights

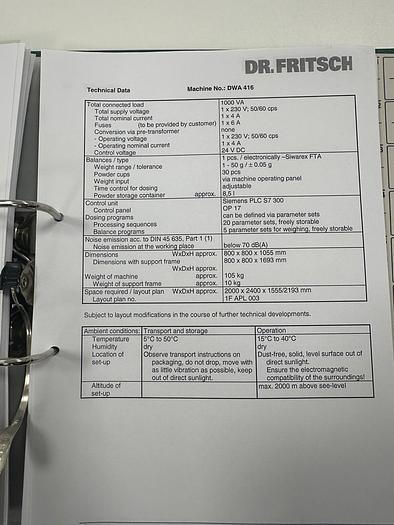

Technical Specification

Balances: 1 Pcs

Balancing Type: Electronically - Siwarex FTA

Weight Range: 1-50g

Weight Tolerance: +/-0.05g

Weight Input: Via Machine Operating Panel

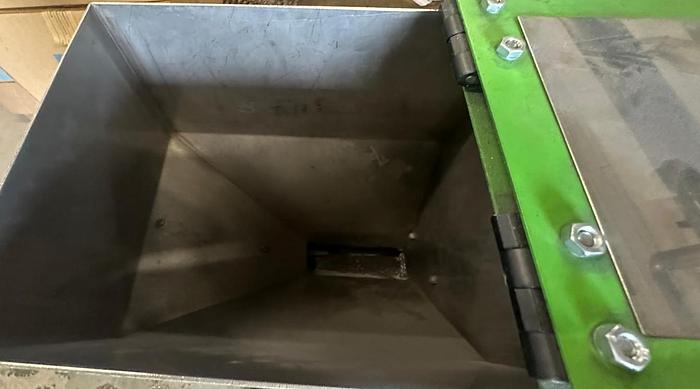

Powder Storage Container: Approx 8.5L

Control: Siemens PLC S7 300

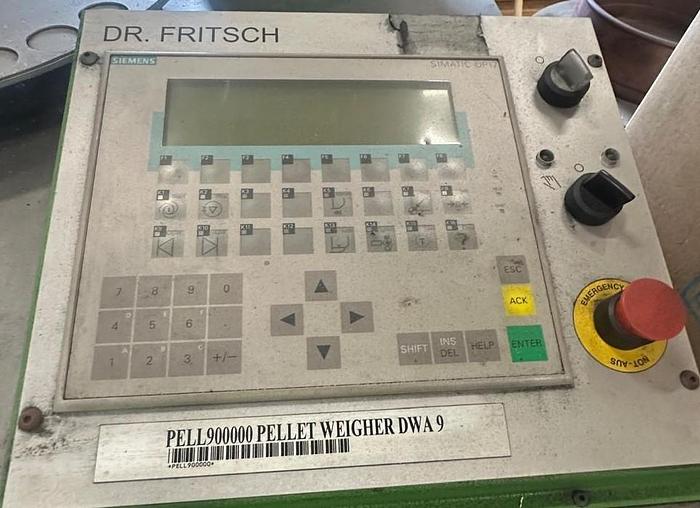

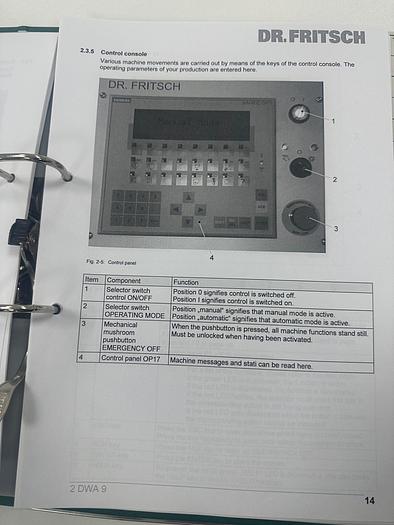

Control Panel: OP 17

Dosing Programs: Can be defined via parameter sets

Processing Sequences: 20 parameter sets, freely storable

Balance Programs: 5 parameter sets for weighing, freely storable

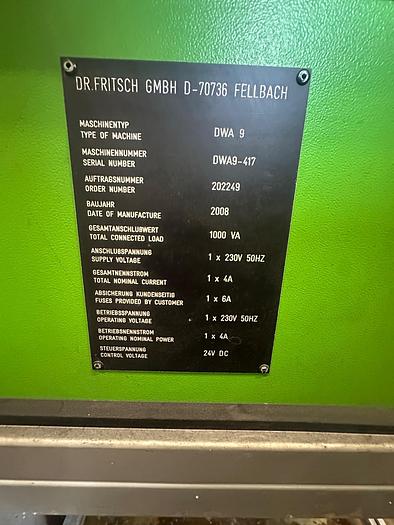

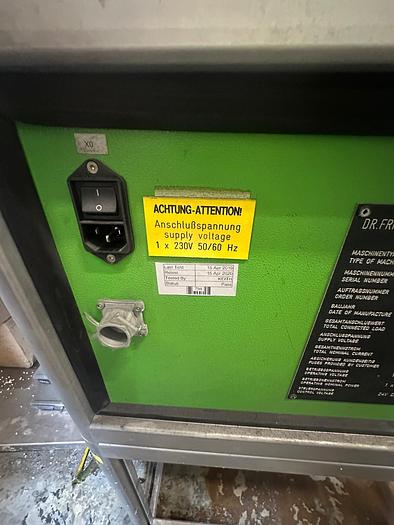

Connected Supply: 230V

Dimensions:800x800x1695mm

Weight: 115kg
