€5,000 + Vat
Mikron Type 132-02 (M23)Gear Hobbing Machine
or
Call +353 838108745
Description

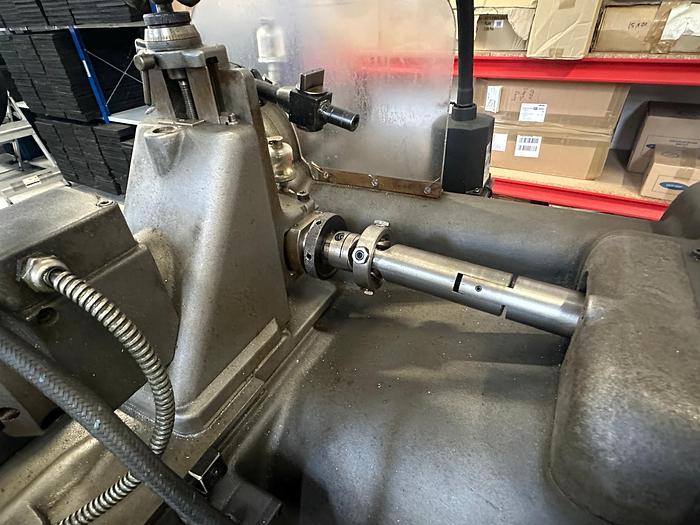

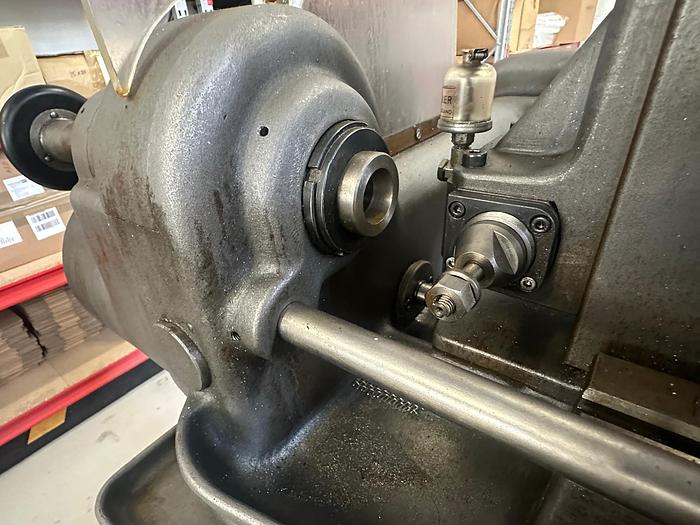

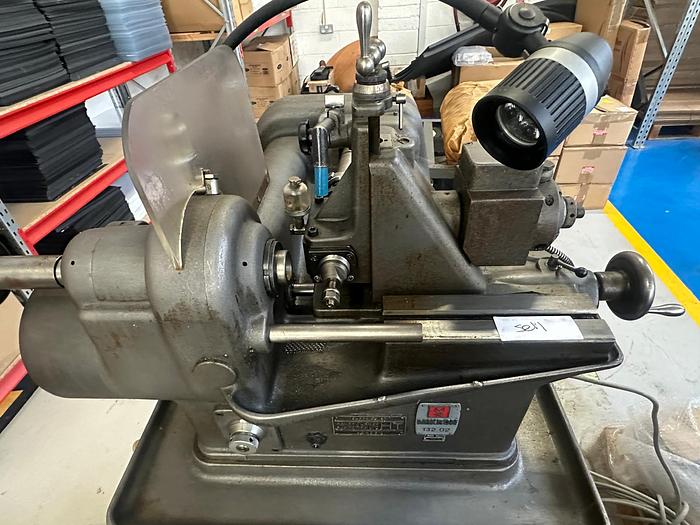

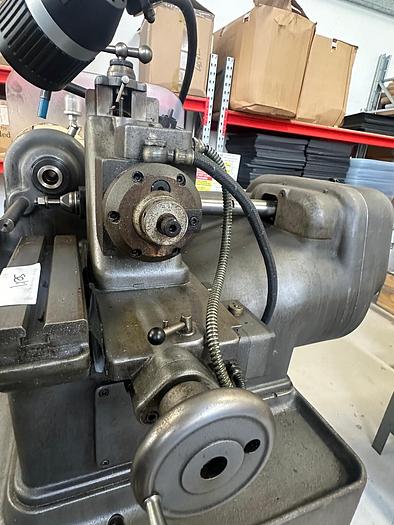

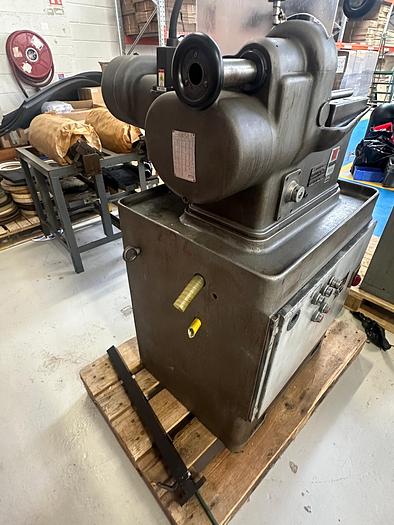

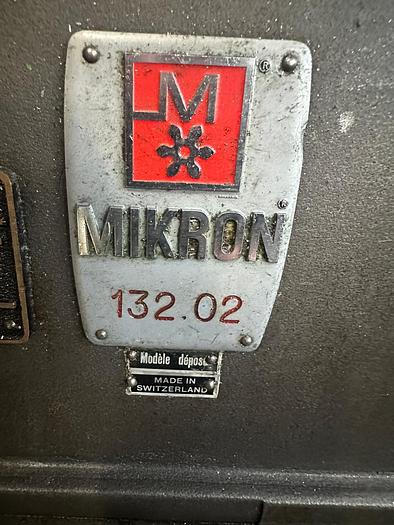

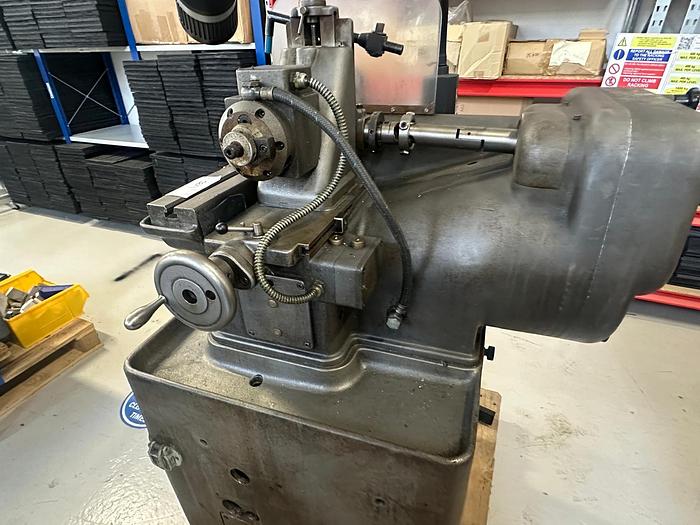

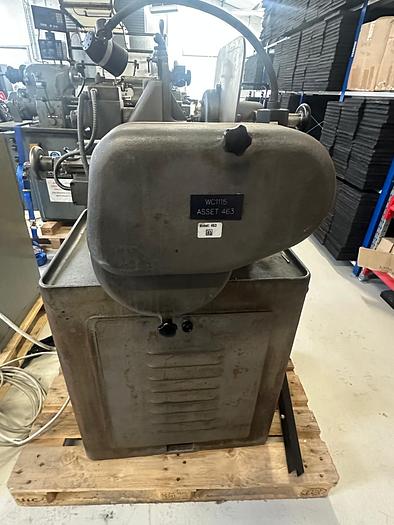

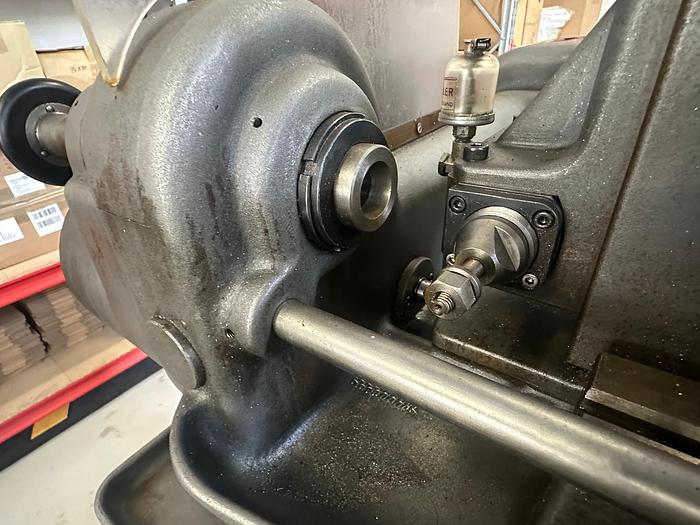

Mikron Type 132-02 (M23) Gear Hobbing Machine
Machine Type: Hydraulic Gear Hobbing Machine with multi-program control.
Condition: Good
Technical Specifications
Max Diameter: 100mm (4")
Max Length: 100mm (4")
Number of Teeth: 6-400
Max Pitch in Steel: 15 D.P.
Max Pitch in Brass & Light Metal: 12 D.P.
12 Hob Revs: Geometrically Graded Between 200-2400rpm
Feed: Horizontal or Plunge-Cutting
Feed Speed: Hydraulically or Infinitely variable between 0.05 and 1mm per rev.
Main Motor: 1.5hp
Coolant Pump Motor: 0.1hp
Hydraulic System Motor: 0.1hp
Dimensions: 1120x1120x1680mm
Machine Weight: 500kg
More information can be found in the attached machine brochure.
Specifications
| Manufacturer | Mikron |
| Model | Type 132-02 (M23)Gear Hobbing Machine |
| Condition | Used |
| Stock Number | 968859 |
| Condition | Good |
| Max Diameter | 100mm (4") |
| Max Length | 100mm (4") |
| Number of Teeth | 6-400 |
| Max Pitch in Steel | 15 D.P. |
| 12 Hob Revs | Geometrically Graded Between 200-2400rpm |
| Feed | Horizontal or Plunge-Cutting |
| Main Motor | 1.5hp |
| Coolant Pump Motor | 0.1hp |
| Hydraulic System Motor | 0.1hp |
| Dimensions | 1120x1120x1680mm |
| Machine Weight | 500kg |
