Cormak ZS-40HS Pedestal Drill

Cormak ZS-40HS Pedestal Drill

Machine Features

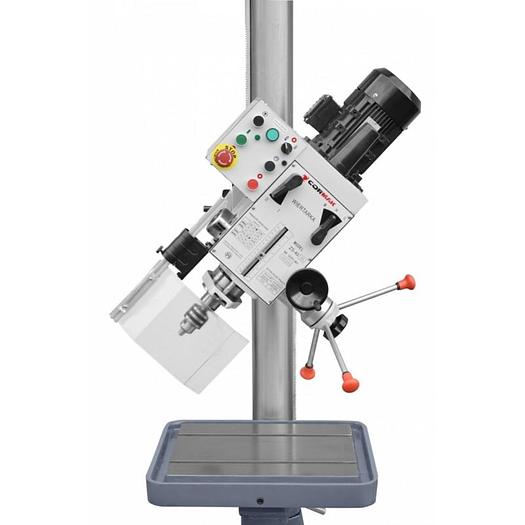

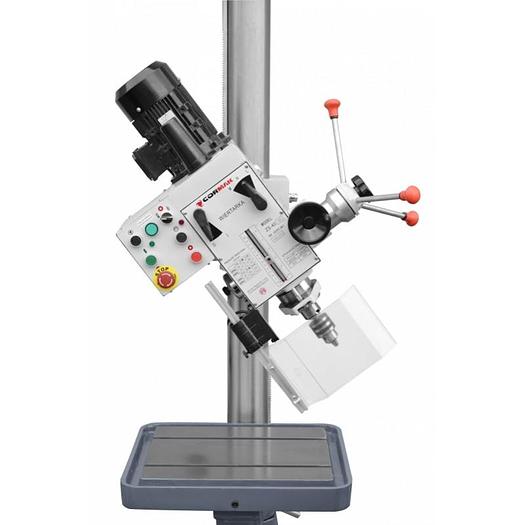

High working flexibility due to the height adjustable swivel head

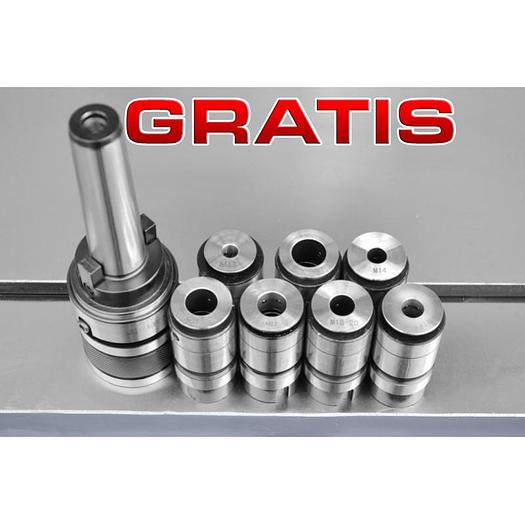

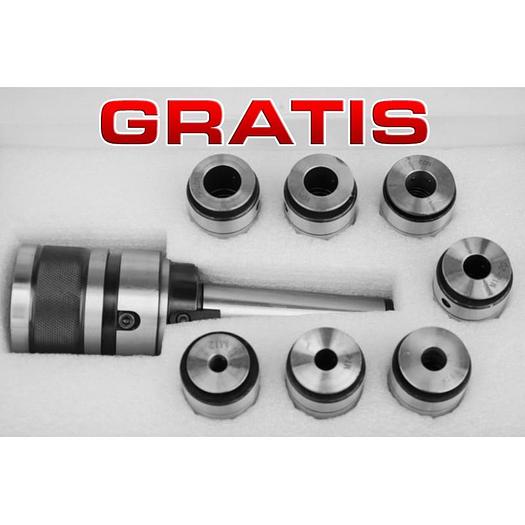

L/R rotations, automatic device for tapping

Precise handwheel with depth pitch

Oil gearbox tempered wheels

Workpieces machined in a stable and quality manner due to solid base

Powerful motor ensuring great drilling efficiency

Sturdy, thickened column with ground surface

Large swivel table with height adjustment

Vice setting capability

Machine Type: Gear Driven Pedestal Drilling Machine

Includes:

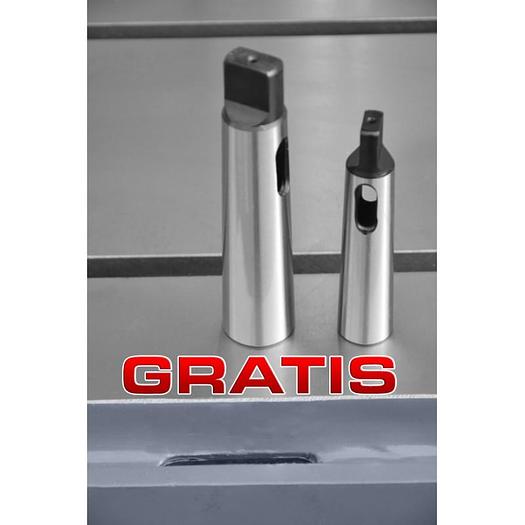

MT2, MT3, MT4 reducing sleeves

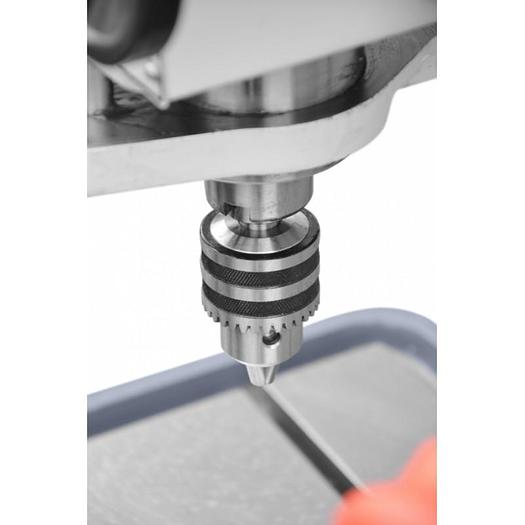

16 mm drilling chuck

Technical Data

Drilling diameter (casting/steel): 40/32 mm

Tapping (casting/steel): M32/M24

Column diameter: 115 mm

Quill travel: 120 mm

Distance from spindle to column centre: 272.5 mm

Maximum distance from spindle nose to worktable: 745 mm

Maximum distance from spindle nose to base: 1200 mm

Spindle taper: MT4

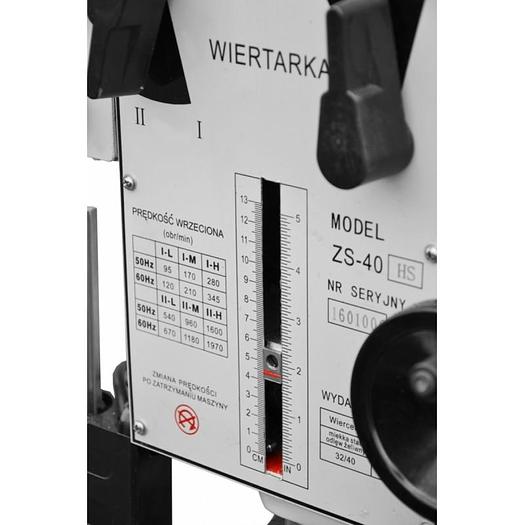

Spindle speed: 95–1600 rpm

Number of gears: 6

Worktable surface dimensions: 455×385 mm

Base dimensions: 385×330 mm

Total height: 2100 mm

Motor power: S1 1100 W/S6 1600 W

Power supply: 400V/ 50Hz

Weight: 310 kg
