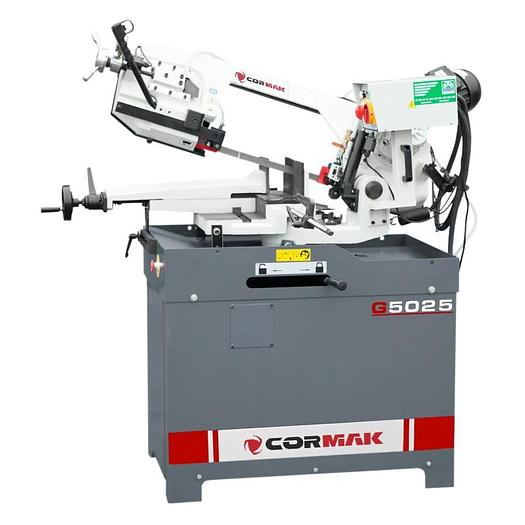

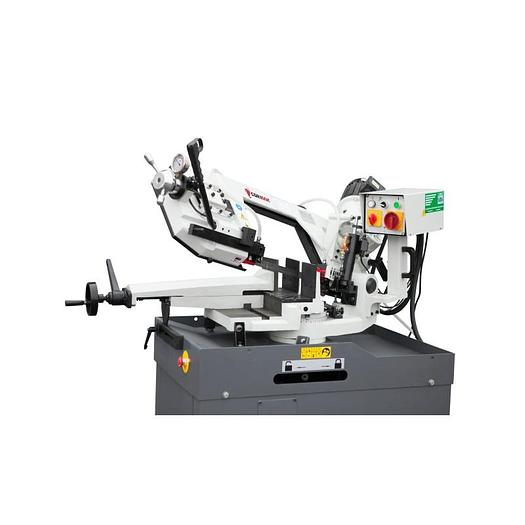

Cormak G5025 Manual Bandsaw

Cormak G5025 Manual Bandsaw

Machine Description

A strong, big band saw for metals with a swivel arm, enabling straight cutting and at any angle from -45° (left) to + 60° (right). These bandsaws are perfect for cutting tubes, profiles and other materials.

Material cut can be fed manually or by any feeding device, with automatic tool feed. Appropriate cutting speed (band speed) is controlled through the control panel. Rigid construction arm is made of profiled cast iron.

The drive from the electric motor directed to the cutting band driving wheel is transmitted by a motor with worm drive. The cutting band is tensioned on two cast iron wheels with a manual tightener and guided by adjustable rolling and linear carbide guides.

The base is enclosed, constituting a rigid welded body of steel sheets. A separate flood coolant container with an electro pump is inside. The shape of the base upper part constitutes a tank for flood coolant draining and chips produced during cutting. Cast iron workbench is attached to the base, with a -45° to + 60° swivel arm and control panel on separate arm.

The arm lowering speed (the cutting speed) is adjusted with the hydraulic cylinder. The feed speed is controlled by the control panel. There are 2 cutting band speeds: 36 and 72 m/min. In rest arm position (after the cutting process) the cutting band drive is switched off automatically. Safety is ensured with cutting band guards and microswitches stopping the motor after cutting cycle is finished or after any of the guards are opened; additional protection consists of automatic switch-off of the band saw in case the cutting band breaks.

Technical Details

Blade size: 2720×27×0.9 mm

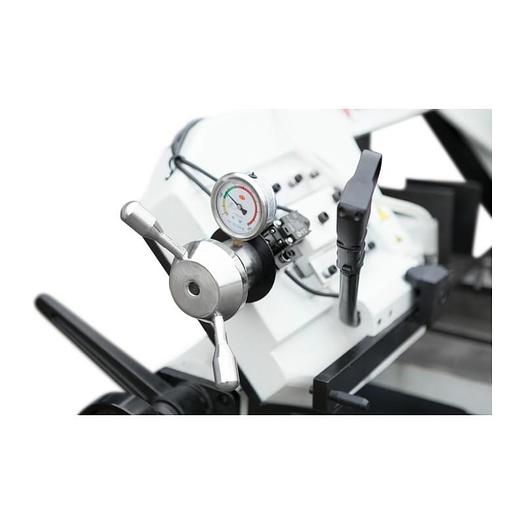

Band tension: mechanical (manual)

Band speed: 36, 72 m/min

Arm lowering control: stepless – hydraulic cylinder

Vice base height: 765 mm

Minimum material length in vice: 100 mm

Power supply: 3-phase, 400 V

Total power: S1 100%: 1.5; S6 40%: 2.1

Cooling pump motor power: 0.025 kW

Weight: 330 kg

Warranty: 12 months

User manual: yes

CE declaration: yes

Cutting Capacities

0º:

Round: ø250mm

Rectangle: 310 x 210mm

Square: 240 x 240mm

45º R:

Round: ø200mm

Rectangle: 200 × 140mm

Square: 180 x 180mm

60º R:

Round: Ø120mm

Rectangle: 120 × 95mm

Square: 100x100mm

45º L:

Round: ø165mm

Rectangle: 185 × 145mm

Square: 160 x 160mm
