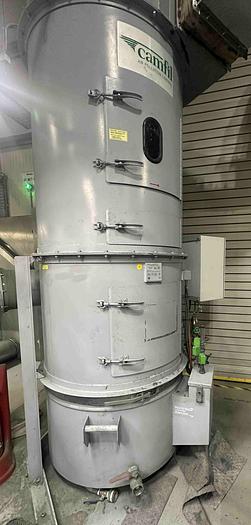

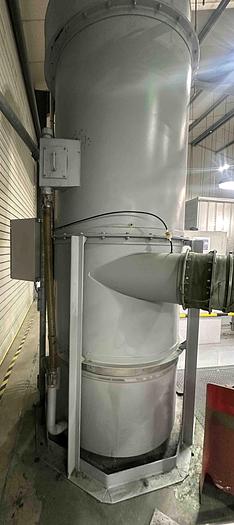

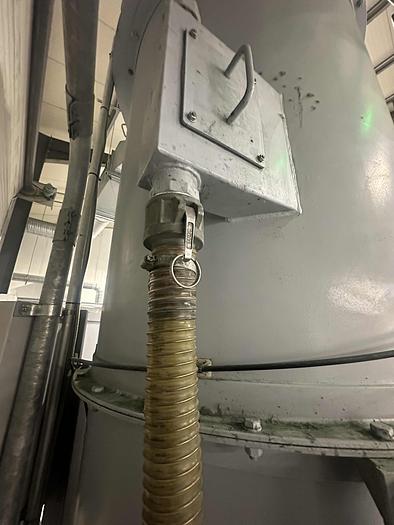

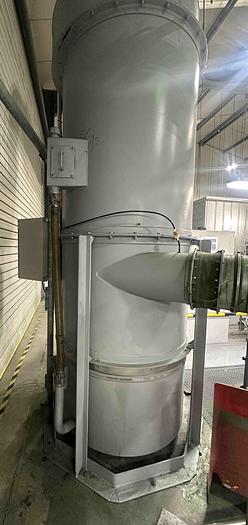

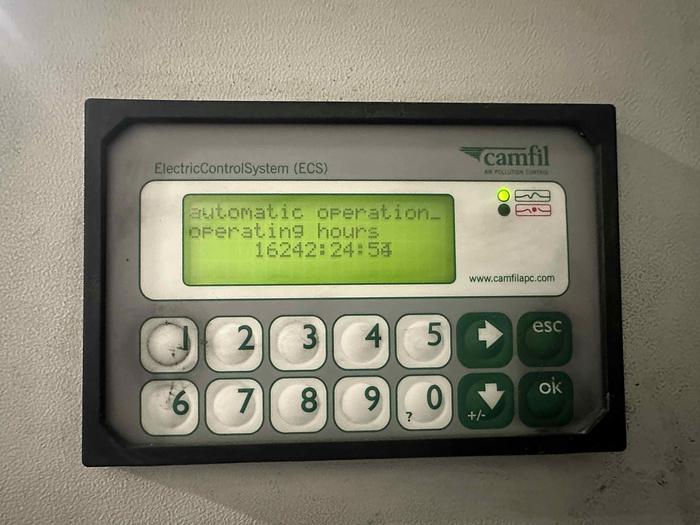

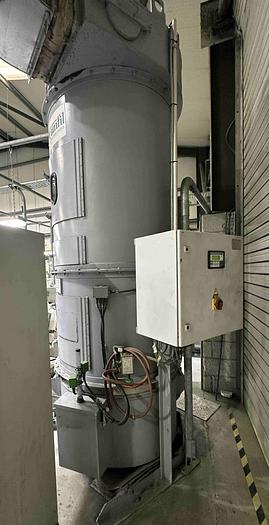

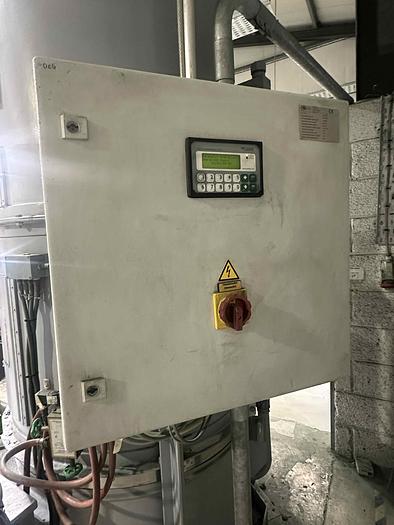

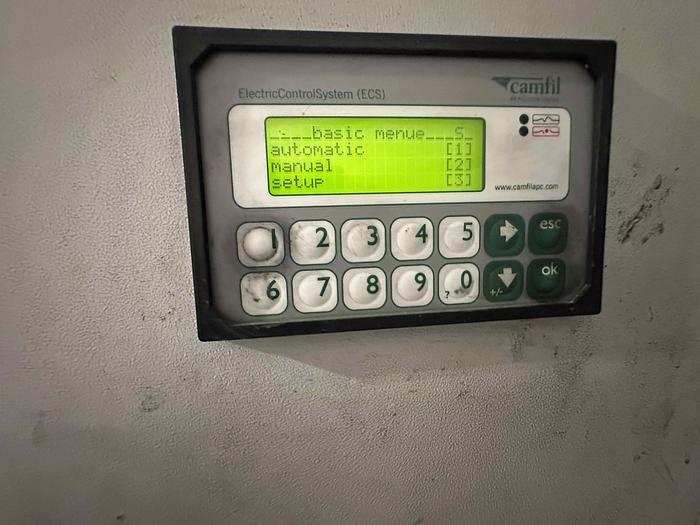

Camfil Vortex Dual Extraction System

Camfil STW-K 6 Vortex Dual Wet Scrubber Extraction Unit

Machine Type: Wet Scrubber for Dust Extraction

Model: STW-K-6

Year: 2017

Condition: Very Good

Application

The wet scrubber Vortex Dual safely separates explosive metal dusts from the waste gas stream of industrial applications like grinding, brushing, deburring, fettling or manual shot blasting of small components. Besides the metal processing industry, the Vortex Dual wet scrubbers handle pollutants from applications with rubber, leather or plastic fines.

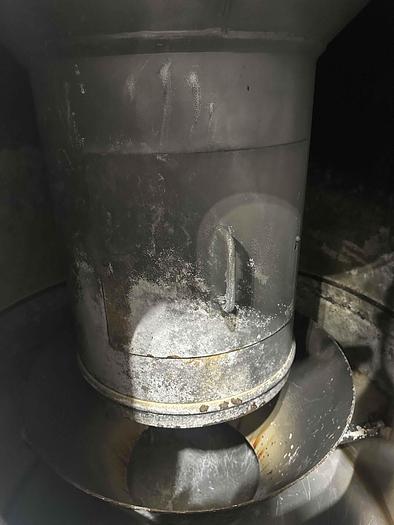

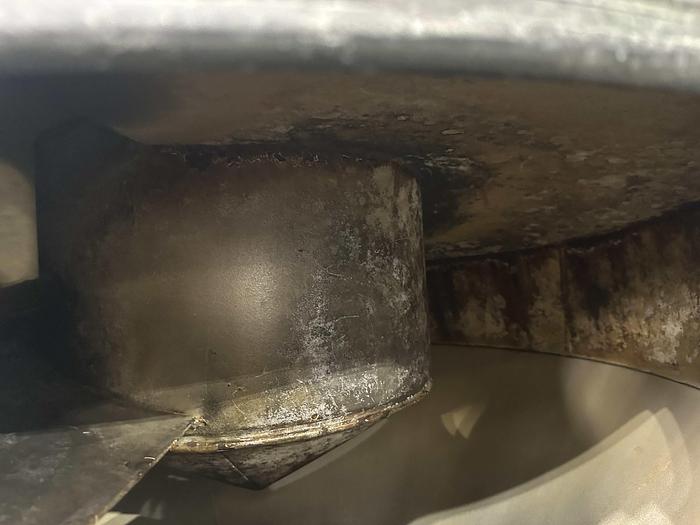

Functional principle of the Vortex Dual wet scrubber

The Vortex Dual wet scrubber is designed for light to medium dust loads and combines the working principle of the Vortex wet scrubber with the disintegration principle. Here again, the polluted exhaust air is tangentially introduced and creates a vortex sink on the surface of the scrubbing water. This generates an intensive water vortex through which the polluted exhaust air is led. Intensive mixing causes the pollutants to bond to the scrubbing water. In addition, in the second cleaning stage, the high speeds and constant direction changes of the disintegration wheel cause the ultrafine pollutants to bind in the scrubbing water. In the downstream demister unit, the polluted scrubbing water is dispersed onto the outer wall and separated through the high circumferential speeds of the disintegration wheel. Higher separation efficiency is achieved through this functional principle. The purified exhaust air is moved and discharged by the centrally positioned ventilator. The separated pollutants are fully or partially isolated in the collection area of the scrubbing water through sedimentation processes. They can be disposed of using various discharge systems.

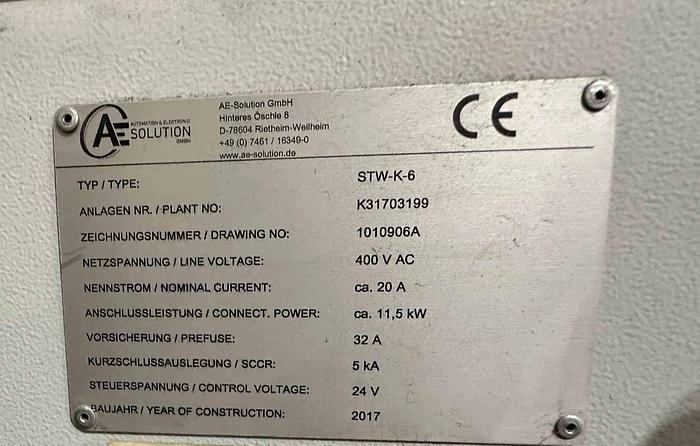

Technical Specifications

Volume Flow: 5,400m3/h

Temperature: +20 Deg C

Total Pressure: 4,000 Pa

Motor Power: 11.0kW

Motor Speed: 2,930 rpm

Motor Voltage: 400V

Nominal Current: 19.8A

Frequency: 50Hz
