Mitutoyo Quick Vision Active Vision System

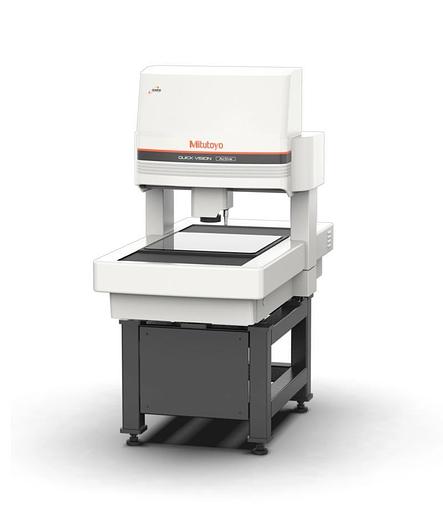

Mitutoyo QV Active 404 CNC Vision Measuring System

Machine Type: CNC Vision Measuring System

Model No: QVT1-L404Z1L-D

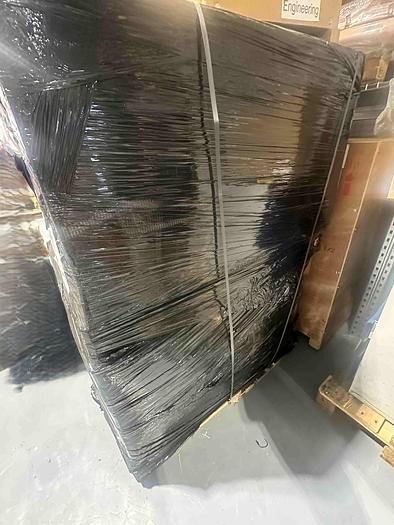

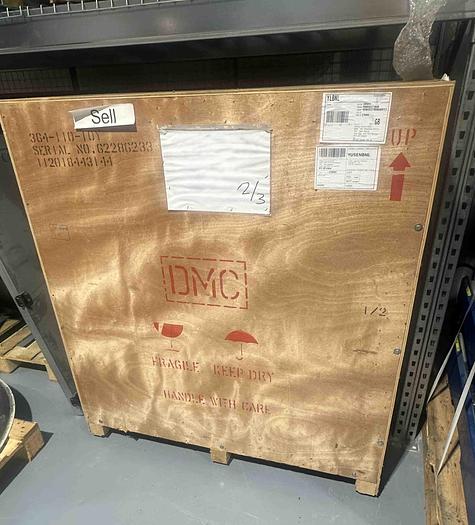

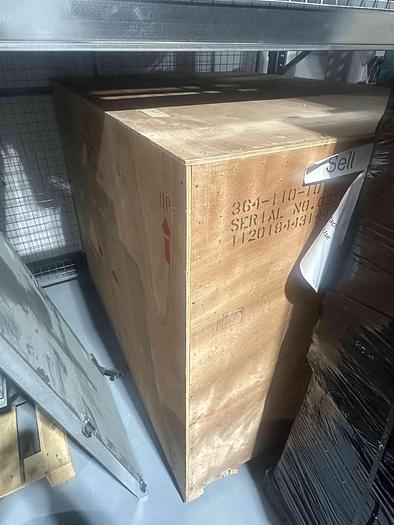

Year: Purchased in 2020 but was never installed or removed from the crates.

Condition: As New.

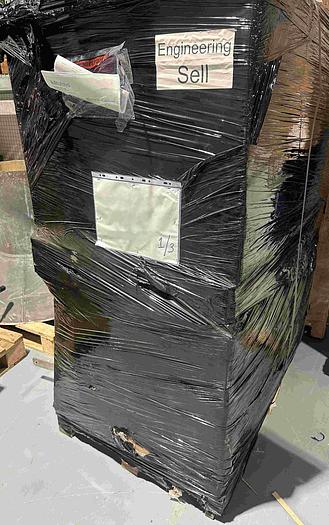

Note: Machine is still in original crates. Can be set up for serious customers only.

Machine Description

This CNC Vision Measuring System combines the flexibility of a high quality zoom lens with the speed of a state-of-the-art digital colour camera and offers the following benefits:

Programmable LED stage- and coaxial-light.

Programmable 4-quadrant LED ring light.

High-resolution and high-speed CMOS colour camera.

High-quality 7-step zoom optics with interchangeable lenses.

Compact design.

Powerful, user-friendly QVPAK software.

Includes Touch probe option.

Includes

Machine Stand

Work Station

Master Ball Stand

MCR Attaching Plate

Calibration Ring

QVPAK Software

Dell Computer

Wide Screen Monitor

Printer

Technical Specifications

Vision Head Range: 400x400x200mm

Measuring Range: 400x400x200mm

Resolution: 0.1 µm

Illumination: Contour,Coaxial,4-quadrant ring

Magnification Change System: Zoom optical system with 8 positions

Sensor Type: High resolution CMOS colour camera

Scale Type: Linear Encoder

Accuracy: (2.5+4L/1000) µm

Touch Probe Accuracy: (2.4+3L/1000) µm

Size of Stage Glass: 466x480mm

Max Stage Loading: 20kg

Machine Dimensions: 776x1303x1004mm

Weight including Stand: 324kg
