Cormak Tytan 330 x 700 Universal Manual Lathe
Description
Cormak Tytan 330 x 700 Universal Manual Lathe
Power: 230V, Single Phase
Description
Cormak Gear Head Universal Manual Lathe. Suitable for small workshops or training centres.
Technical Details
Swing over bed: 330 mm
Maximum workpiece length: 700 mm
Swing over cross slide: 220 mm
Bed width: 160 mm
Spindle bore: 38 mm
Spindle taper: MT5
Spindle speeds: 12
Range of spindle speeds: 60, 90, 120, 160, 220, 300, 380, 500, 640, 850, 1100, 1650 rpm
Maximum side stroke of the tool holder: 160 mm
Maximum longitudinal stroke of the tool holder: 100 mm
Types of metric thread: 17 types
Metric thread range: 0.5–4 mm
Types of inch thread: 24 types
Inch thread range: 9–40 TPI
Longitudinal feed range: 0.1–1.396 mm/turn
Transverse feed range: 0.025–0.34 mm/turn

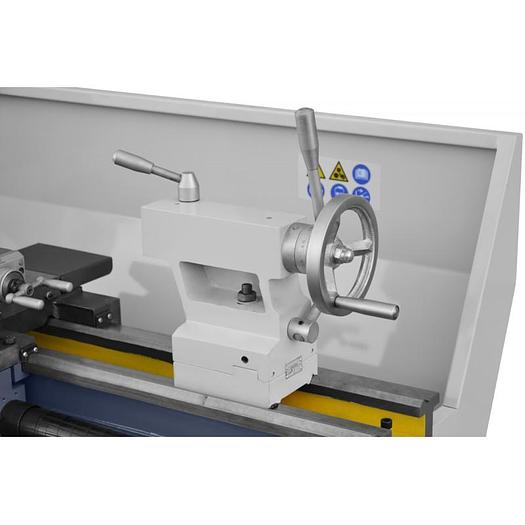

Tailstock quill diameter: 40 mm
Tailstock quill bore: 70 mm
Tailstock quill taper: MT3
Motor: 1.1 kW, 230V
Dimensions: 1400×770×550 mm
Net weight: 240 kg
Standard Equipment Includes

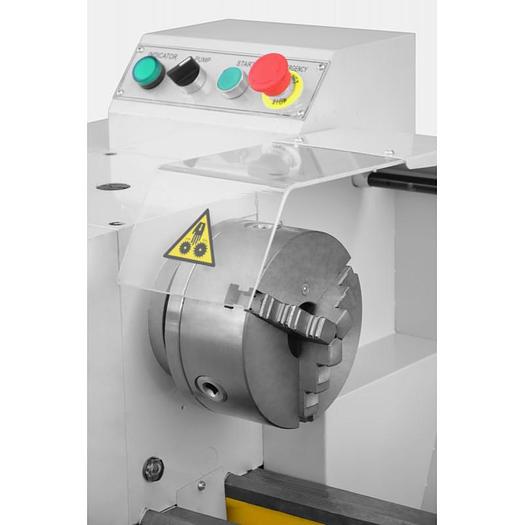

- 160mm 3-jaw chuck
- Set of Jaws
- MT3 dead centre
- Gear change wheels
- Lubricator
- Safety guards
- Chips container
- Rear chip guard
- Handling tools
- Ergonomical base with a cabinet and drawers
Specifications
| Manufacturer | Cormak |
| Model | Tytan 330 x 700 Universal Manual Lathe |
| Condition | New |
| Power | 230V, Single Phase |
| Swing over bed | 330 mm |
| Maximum workpiece length | 700 mm |
| Swing over cross slide | 220 mm |
| Bed width | 160 mm |
| Spindle bore | 38 mm |
| Spindle taper | MT5 |
| Spindle speeds | 12 |
| Types of metric thread | 17 types |
| Metric thread range | 0.5–4 mm |
| Types of inch thread | 24 types |
| Inch thread range | 9–40 TPI |
| Longitudinal feed range | 0.1–1.396 mm/turn |
| Transverse feed range | 0.025–0.34 mm/turn |
| Tailstock quill diameter | 40 mm |
| Tailstock quill bore | 70 mm |
| Tailstock quill taper | MT3 |
| Motor | 1.1 kW, 230V |
| Dimensions | 1400×770×550 mm |
| Net weight | 240 kg |
