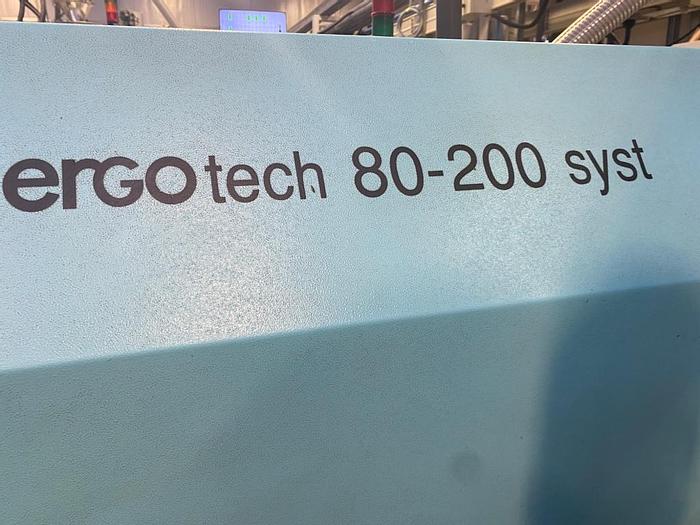

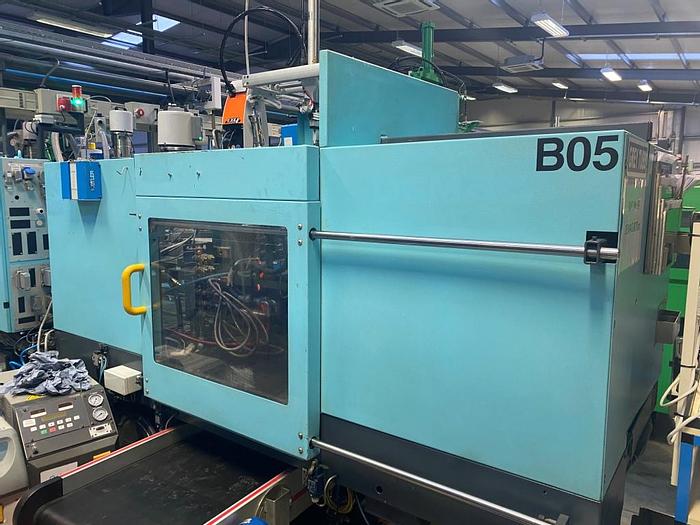

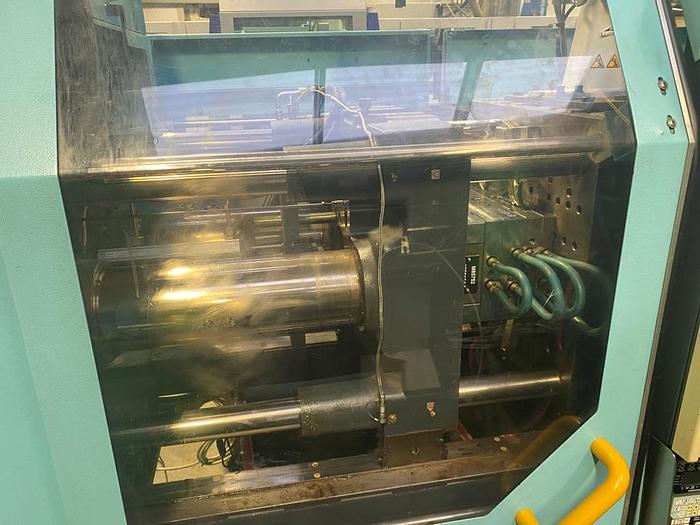

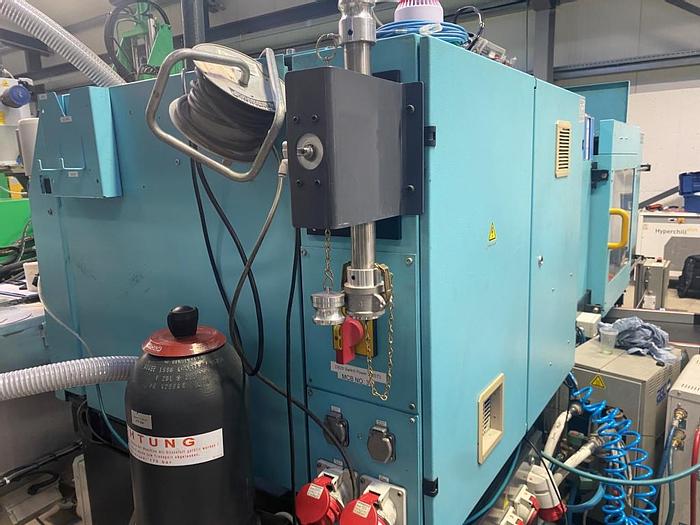

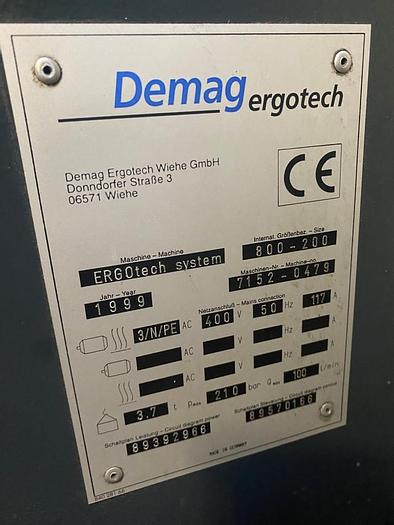

1999 Demag ERGOtech System 800-200 Injection Moulding Machine
Description
1999 Demag ERGOtech System 800-200 Injection Moulding Machine
Machine Type: 80 Ton Injection Moulding Machine
Year: 1999

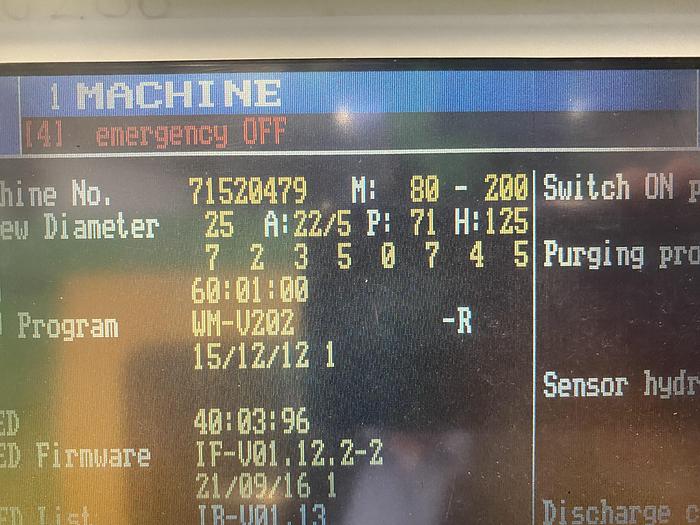

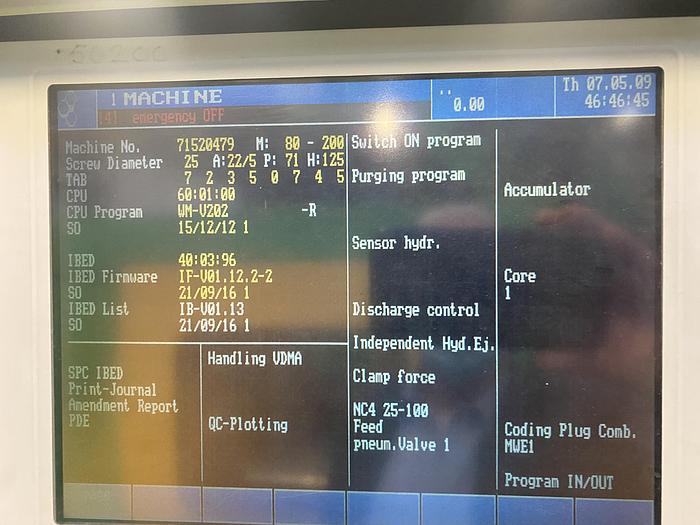

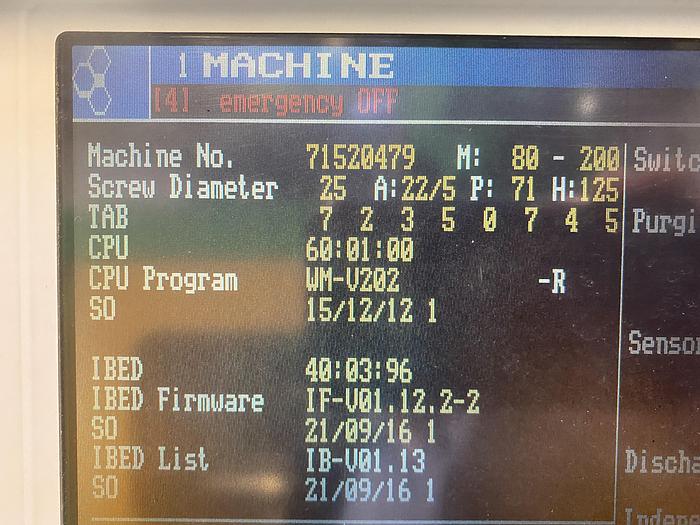

Control: Demag NC4
Technical Specifications
Clamping Force: 80 Ton (800kN)
Locking Force: 800kN
Size of Platens (H x V): 580 x 590mm
Distance Between Tie Bars (H x V): 400 x 400mm
Max Opening Stroke: 450mm
Min Mould Mounting Height: 250mm
Max Daylight: 700mm
Clamping Unit System: Single Clamp Cylinder
Intensification Ratio: 20.0
Ejection Stroke: 150mm
Ejection Force: 41.2kN
Ejector Retraction Force: 14.8kN
Screw Diameter: 25mm
L/D Ratio: 20
Injection Pressure (at 400C): 2400 Bar
Cylinder Head Volume: 61.3cm³
Shot Weight: 54g
Max Metering Stroke: 125mm
Max Nozzle Stroke: 200mm
Nozzle Dipping Depth(SVO): 16mm
Nozzle Sealing Force: 60kN
Heating Capacity of Screw Cylinder: 5.7kW
Oil Tank Capacity: 250L
Pump Motor Capacity: 18.5kW
Total Installed Power: 27.7kW
Machine Dimensions: 3800 x 1400 x 1900mm
Machine Weight: 3550kg
Specifications
| Manufacturer | Demag |
| Model | ERGOtech System 800-200 Injection Moulding Machine |
| Year | 1999 |
| Condition | Used |
| Year | 1999 |
| Control | Demag NC4 |
| Clamping Force | 80 Ton (800kN) |
| Locking Force | 800kN |
| Max Opening Stroke | 450mm |
| Min Mould Mounting Height | 250mm |
| Max Daylight | 700mm |
| Clamping Unit System | Single Clamp Cylinder |
| Intensification Ratio | 20.0 |
| Ejection Stroke | 150mm |
| Ejection Force | 41.2kN |
| Ejector Retraction Force | 14.8kN |
| Screw Diameter | 25mm |
| L/D Ratio | 20 |
| Injection Pressure (at 400C) | 2400 Bar |
| Cylinder Head Volume | 61.3cm³ |
| Shot Weight | 54g |
| Max Metering Stroke | 125mm |
| Max Nozzle Stroke | 200mm |
| Nozzle Dipping Depth(SVO) | 16mm |
| Nozzle Sealing Force | 60kN |
| Oil Tank Capacity | 250L |
| Pump Motor Capacity | 18.5kW |
| Total Installed Power | 27.7kW |
| Machine Weight | 3550kg |
