2016 Universal Robots UR10 Cobot/Robot
Description

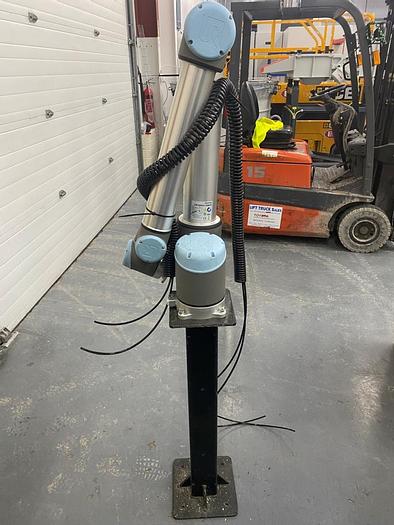

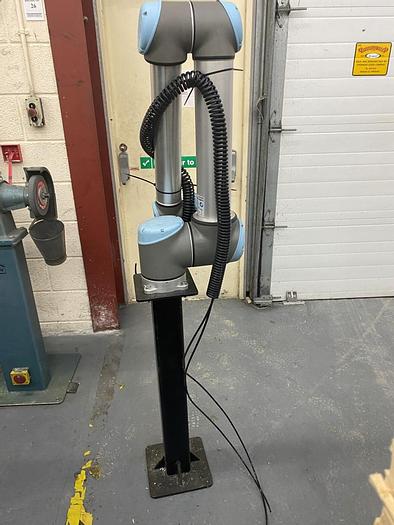

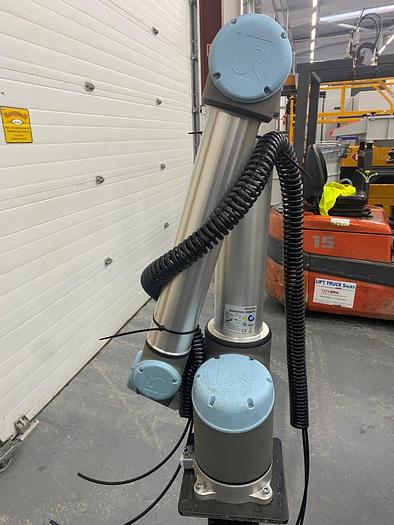

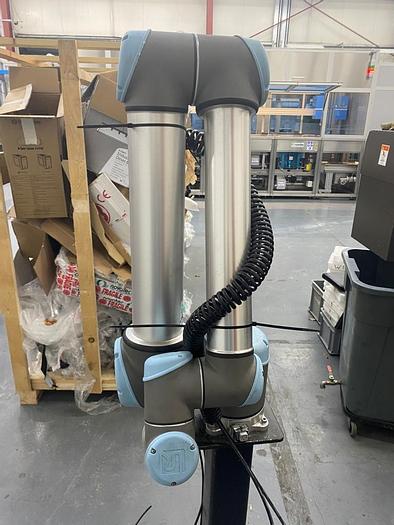

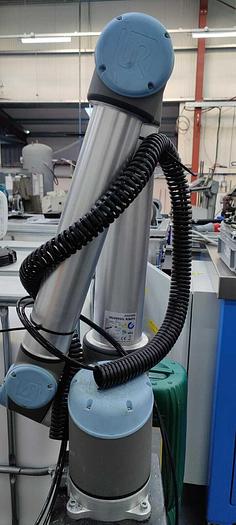

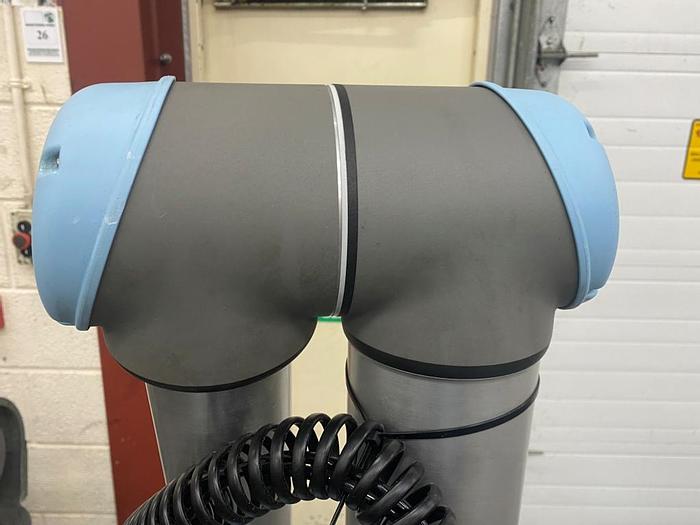

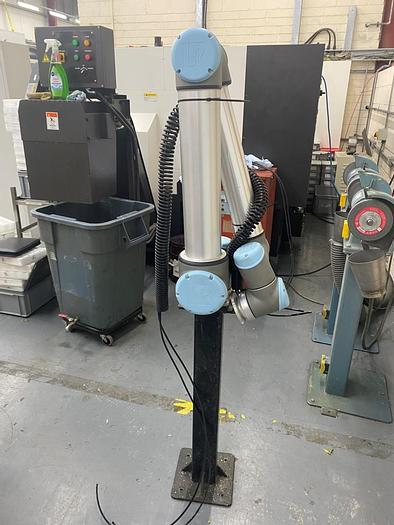

2016 Universal Robots UR10 Cobot
Robot Type: Industrial Cobot
Year: 2016
Description

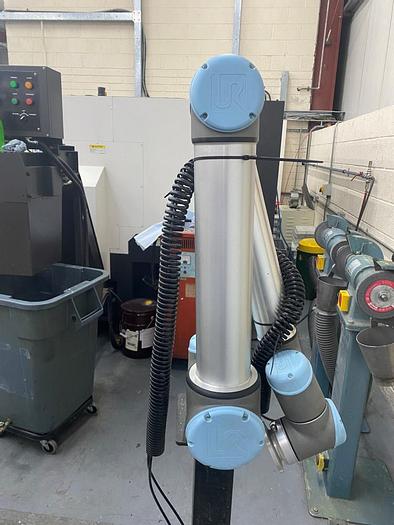

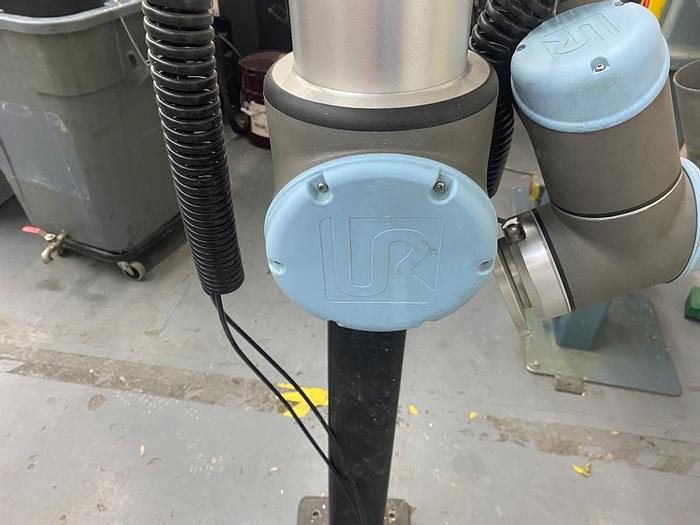

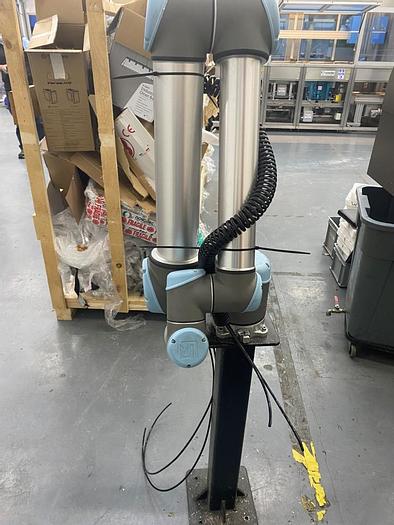

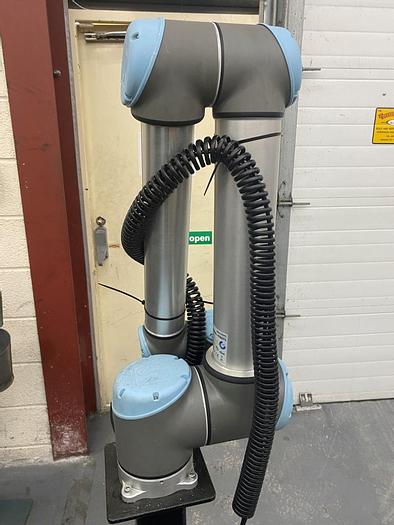

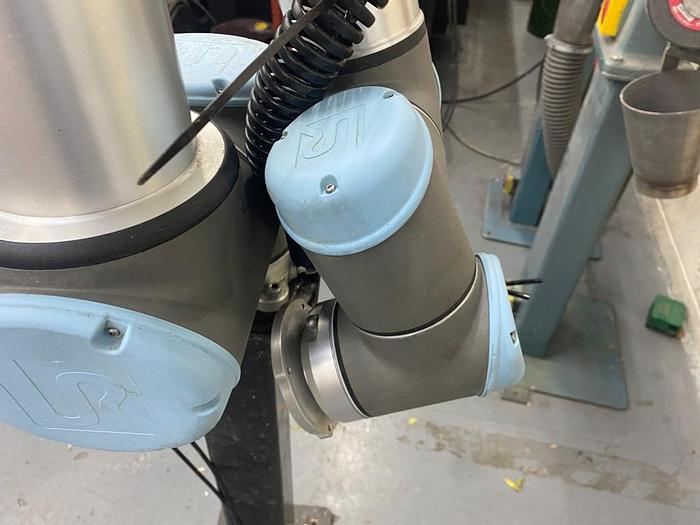

The Universal Robots UR10 collaborative industrial robot arm is the largest UR industrial robot arm, designed for bigger tasks where precision and reliability are still of paramount importance. With the UR10 industrial robot arm you can automate processes and tasks that weighs up to 10 kg.
Heavier-weight collaborative processes, such as packaging, palletizing, assembly, and pick and place are all well-suited to the UR10 industrial robot. With a reach radius of up to 1300mm, the UR10 industrial robot is designed to be more effective at tasks across a larger area. You can therefore save time on production lines where distance can be a factor.
Technical Specification
Max Payload: 10kg
Max Reach: 1300mm
Joint Ranges: +/- 360°
Speed (Base and Shoulder): 120°/s.
Speed (Elbow, Wrist 1, Wrist 2, Wrist 3): 180°/s
Speed (Tool): Typical 1 m/s
Repeatability: +/- 0.1mm
Footprint: Ø190 mm

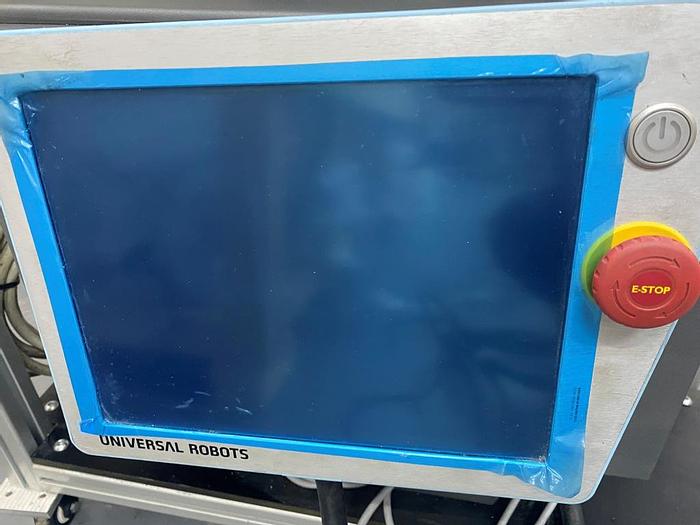

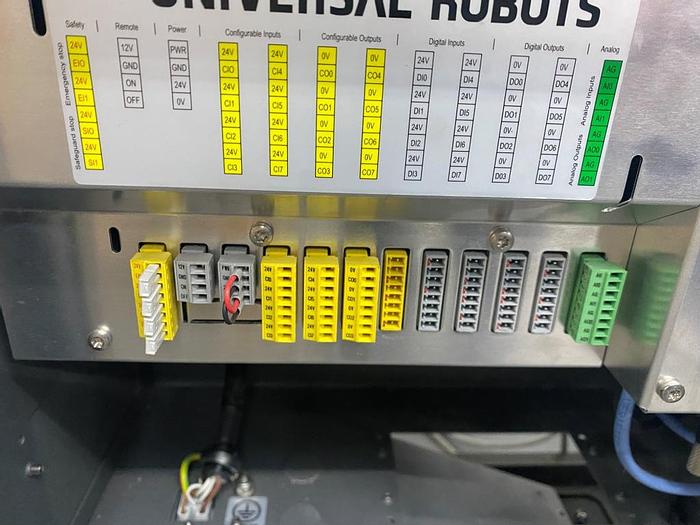

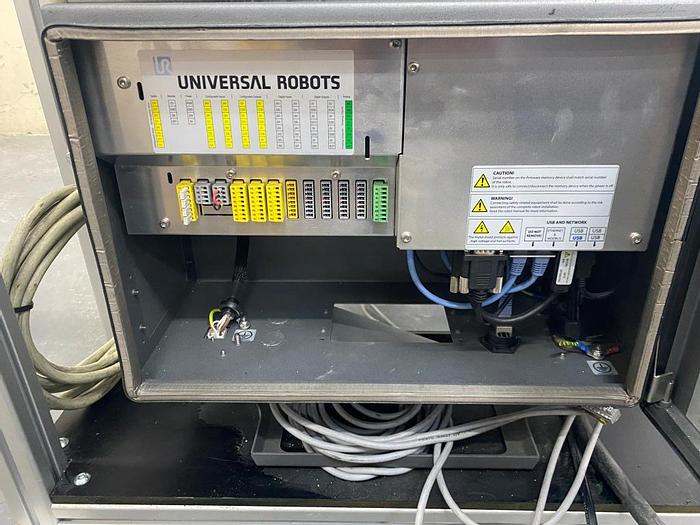

Control Box Size: 475 x 423 x 268mm
Weight: 33.5kg
Power Supply: 100-240VAC, 50-60Hz

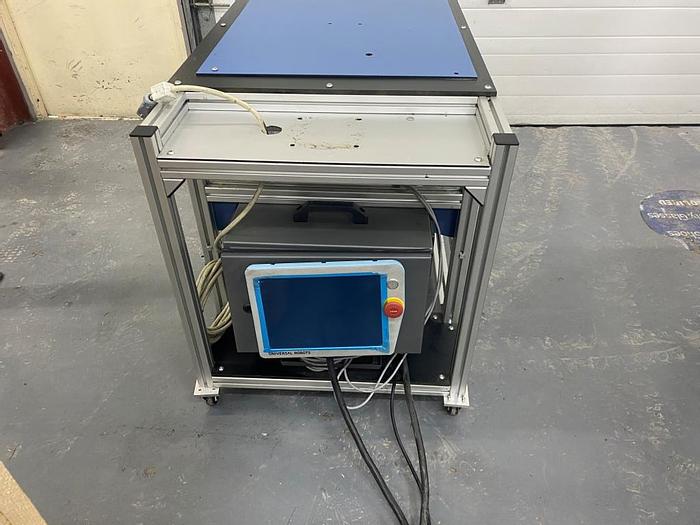

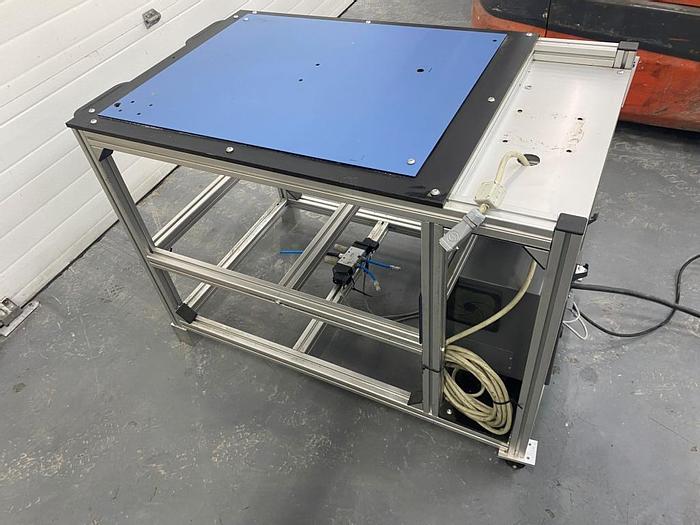

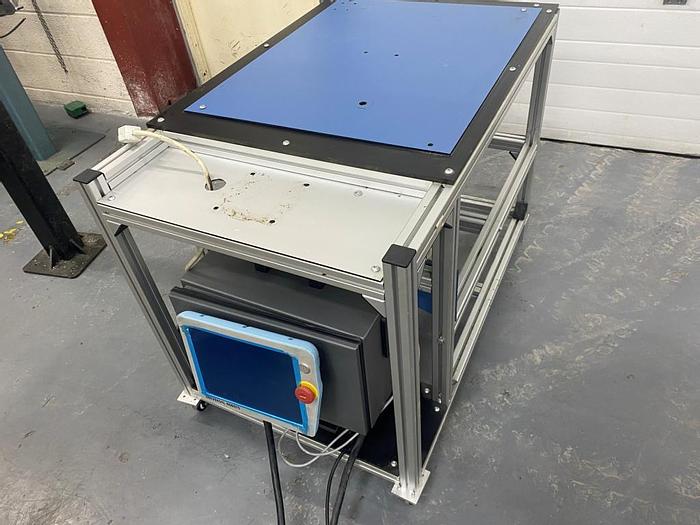

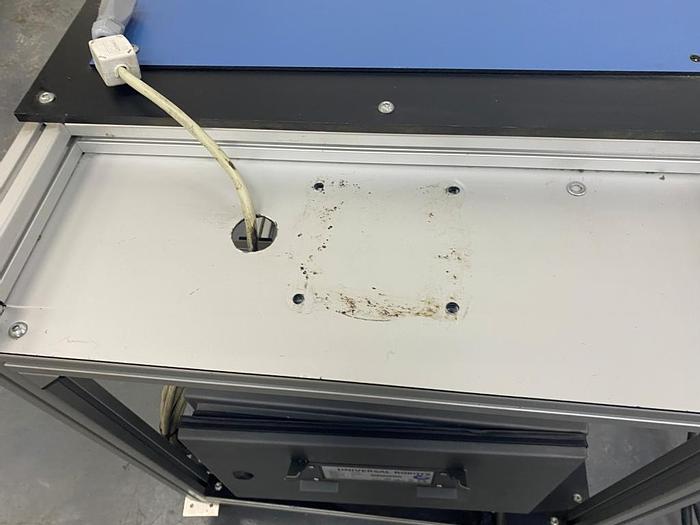

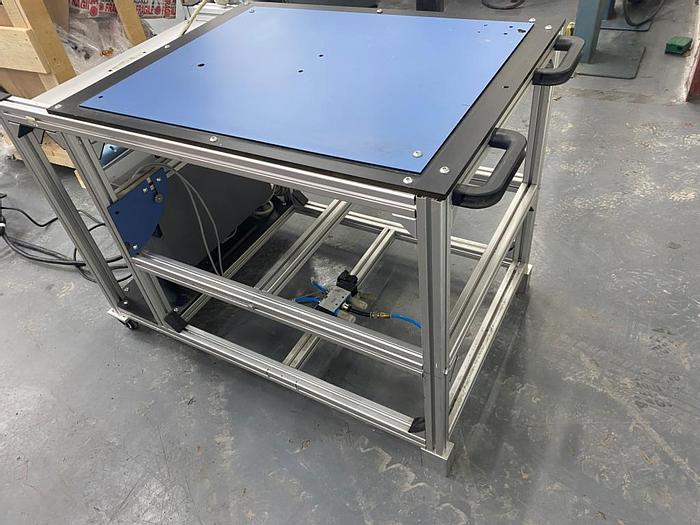

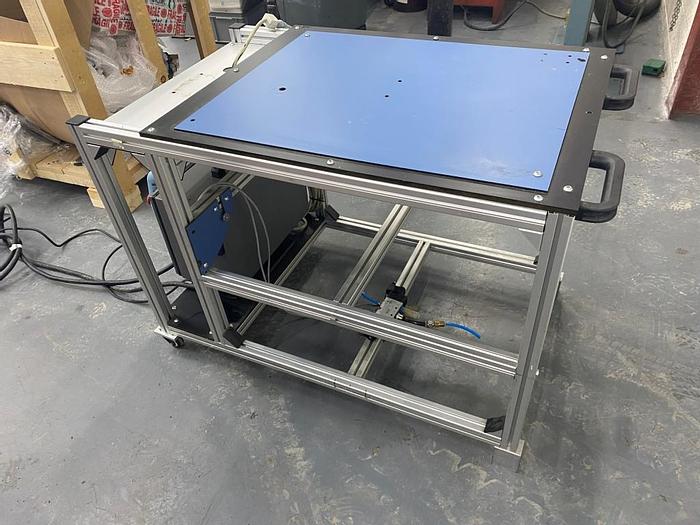

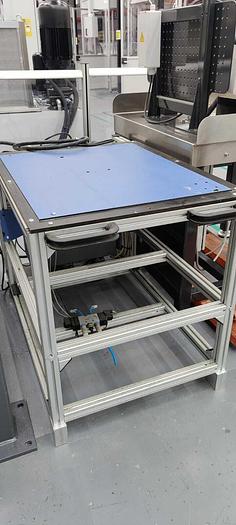

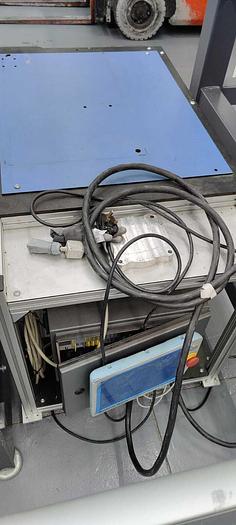

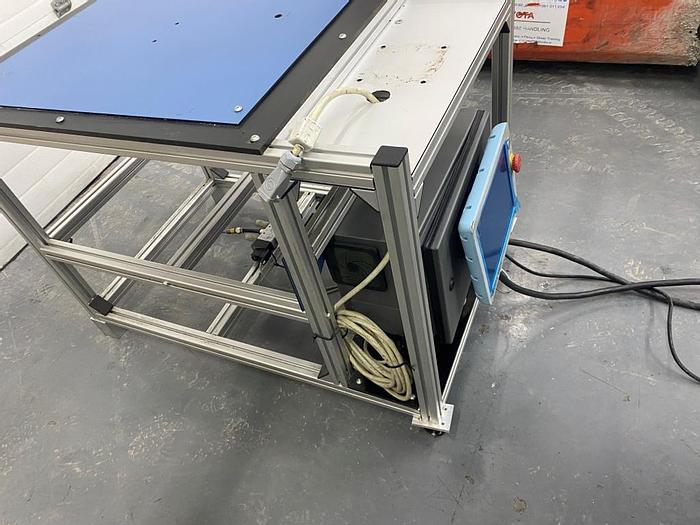

Includes: Parts Loading Cart
Specifications
| Manufacturer | Universal Robots |
| Model | UR10 Cobot/Robot |
| Year | 2016 |
| Condition | Used |

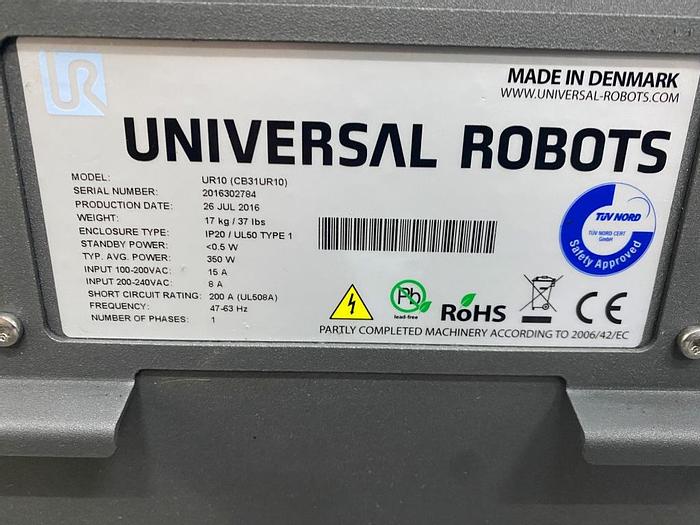

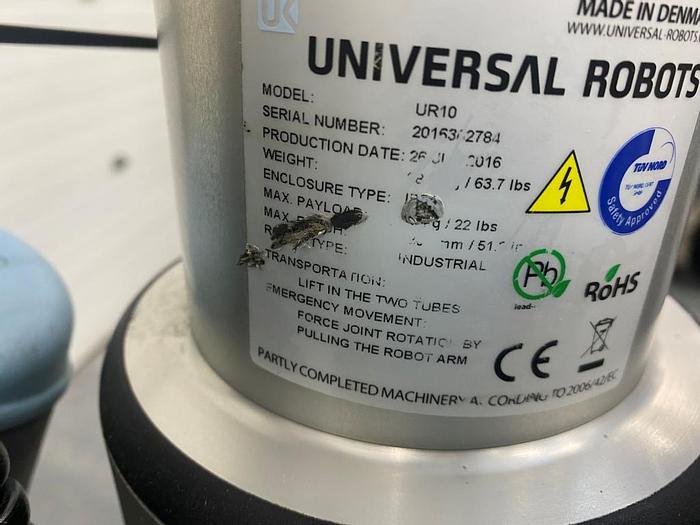

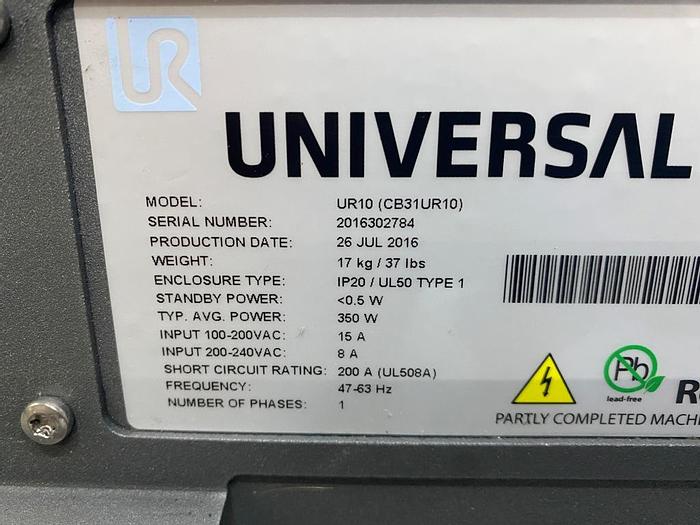

| Serial Number | 2015342784 |
| Robot Type | Industrial Cobot |
| Year | 2016 |
| Max Payload | 10kg |
| Max Reach | 1300mm |
| Joint Ranges | +/- 360° |
| Speed (Base and Shoulder) | 120°/s. |
| Speed (Tool) | Typical 1 m/s |
| Repeatability | +/- 0.1mm |
| Footprint | Ø190 mm |
| Weight | 33.5kg |
| Power Supply | 100-240VAC, 50-60Hz |
