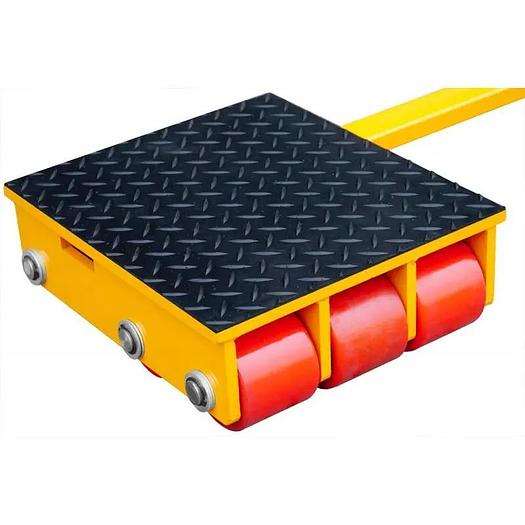

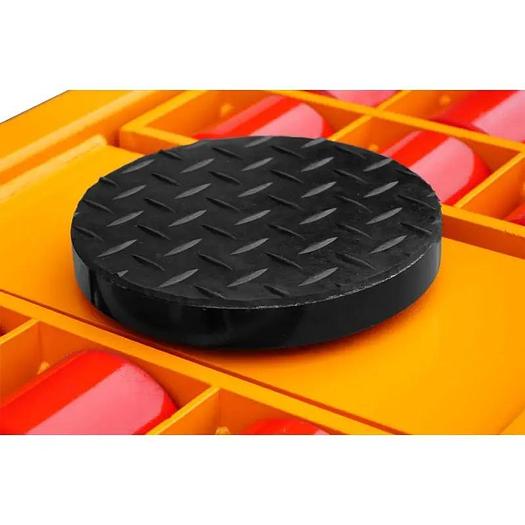

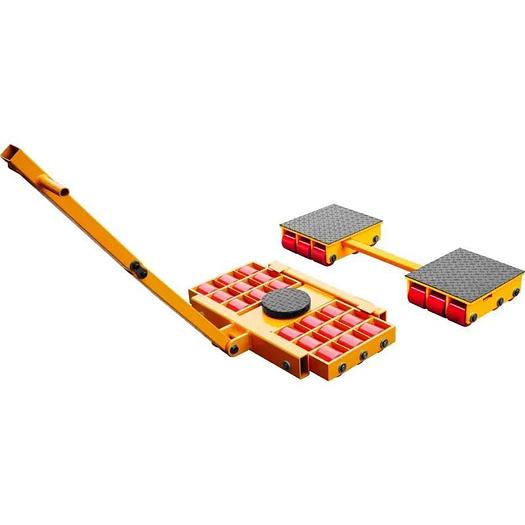

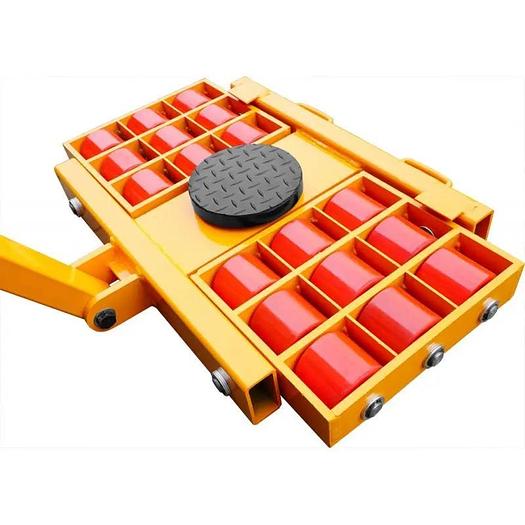

Cormak 36T Transport Skates Set
Description
Cormak 36Ton Transport Skate Set
Total Load Capacity (WL18 & WF18): 36T
Description
A set of transport rollers consisting of a WL18 mobile platform and a WF18 transport chassis. The maximum lifting capacity of the set is 36 tons. Transport rollers enable easy and safe transport of heavy objects. Thanks to the use of polyurethane thread rollers the transported machine and the floor are not damaged. Technical Details - WL18
Rollers size: 85mm
Number of rolls: 16
Capacity: 18000kg
Loading Height: 110mm
Load Bearing Surface: Ø 170mm
Supporting Points: 1
Length of Shaft: 1080mm
Turning Angle of Shaft: ± 90 Degree
Dimensions: 1030 x 620 x 110mm
Weight: 137kg Technical Details - WF18
Rollers size: 85mm
Number of rollers: 16
Capacity: 18000kg
Loading Height: 110mm
Load Bearing Surface: 200 x 407mm
Supporting Points: 2
Connector Length: 1430mm
Width distribution of skates: 1014-1430mm
Weight: 50kg
Specifications
| Manufacturer | Cormak |
| Model | 36T Transport Skates Set |
| Condition | New |
| Stock Number | 968837 |
| Rollers Diameter | 85mm |
| Number of rolls | 16 |
| Capacity | 18000kg |
| Loading Height | 110mm |
| Load Bearing Surface | Ø 170mm |
| Supporting Point | 1 |
| Length of Shaft | 1080mm |
| Turning Angle of Shaft | ± 90 Degree |
| Number of rollers | 16 |
| Weight of Skate | 137kg |
| Rollers size | 85mm |
| Load Bearing Surfaces | 200 x 407mm |
| Supporting Points | 2 |
| Connector Length | 1430mm |
| Width distribution of skates | 1014-1430mm |
| Weight | 50kg |
