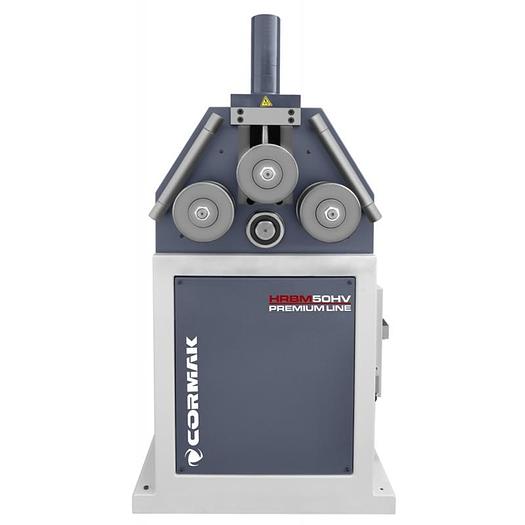

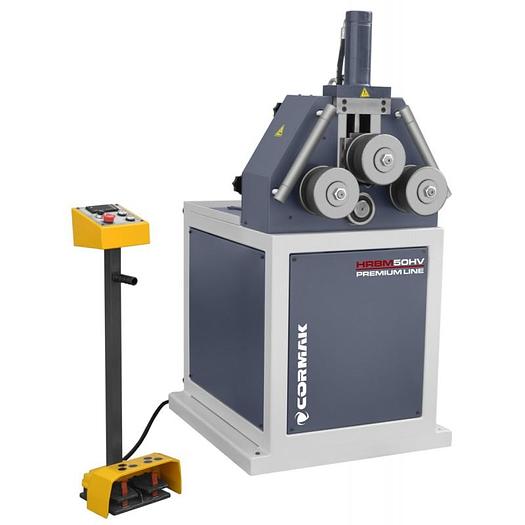

Cormak HRBM 50HV Hydraulic Section Rolls

Cormak HRBM 50HV Hydraulic Section Rolls

Machine Description

Hydraulic bending machine for bending tubes, profiles, rods and flat bars, dependent on the rollers equipped. This bending machine is also equipped with a mechanical upper roller clamping with a Vernier scale. Perfect for bending arches, rings, spirals, etc. Used in iron working shops and on construction sites. Maximum tubes bending range up to 70 mm.

Machine Features

• The construction of the bending machine made of welded steel sheets
• Hydraulic bending machine features higher power in comparison to conventional bending machines

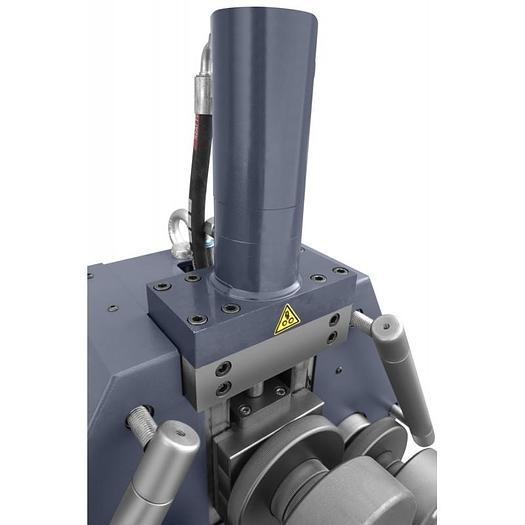

• Both axes of the bending machine are driven by a powerful hydraulic motor, with the upper wheel lifted by the axis of the hydraulic actuator

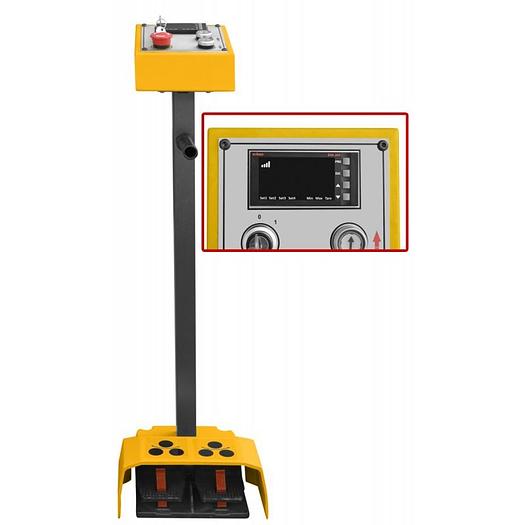

• The panel has buttons that ensure reliability of the machine

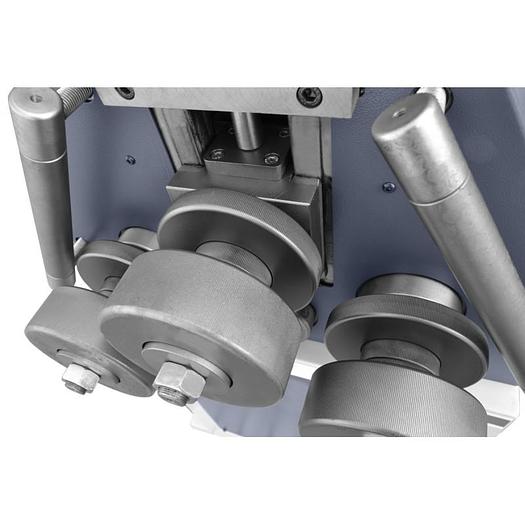

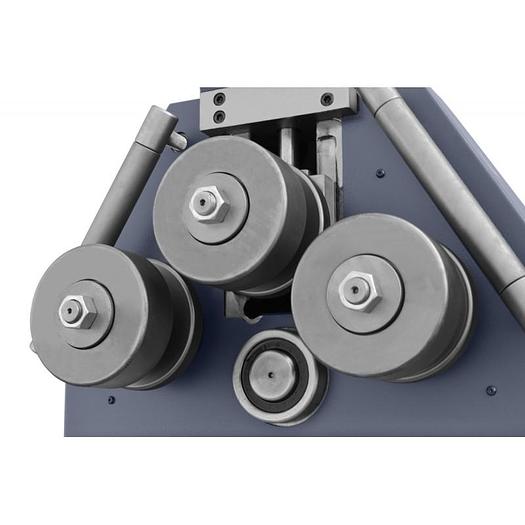

• Default bending rolls allow for bending materials of various shapes

Technical Details

Rollers Diameter: 50 mm

Motor power: 2.2 kW

Shafts speed: 13 rpm

Dimensions (L×W×H): 1500 × 950 × 1340mm

Weight: 586 kg

Capacity

Solid Square Bar: 35 x 35mm

Solid Flat Bar: 100 x 15mm

Solid Round Bar: 35mm Diameter

Hollow Tube/Pipe: 70mm x 2mm Wall

Box Section: 60 x 60mm x 3mm Wall
