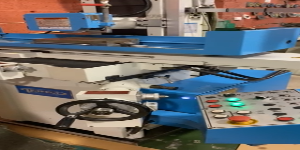

2018 Perfect PFG-1545H Surface Grinder

2018 Perfect PFG-1545 Surface Grinder

Machine Description

Optimized Structure

The major parts are manufactured from high quality cast iron combined with an outstanding structural design. Major parts are stress relieved to ensure maximum rigidity, stability and machining accuracy.

Precision Spindle Design

The spindle runs in a class P4 high precision angular contact bearing, assuring run-out accuracy in 2 μm. The cartridge-type spindle is completely sealed and lubricated for long working lifetime, providing high accuracy grinding and a long service life.

Turcite-B on Slideways

The X and Z axes slideways are coated with Turcite-B for stable movement and long term accuracy.

Machine Type: Hydraulic Surface Grinder

Year: 2018

DRO: Easson SC-402 2 Axis DRO

Machine Specification

Max Grinding Surface: 450 x 150mm

Max. Distance Centre of Spindle to Table: 450mm

Table Speed: 5~25m/min

Table Guideway: V & Flat way

Cross Feed Increment approx.: Manual 0.1mm ~ 12mm

Cross Feed on Hand Wheel: 1 rev = 5mm (1 gra = 0.02mm)

Rapid Power Head Elevation: 60Hz 550mm/min, 50Hz 450mm/min

Vertical feed with MPG: 1 rev = 2mm (1 gra = 0.01mm)

Auto downfeed: 0.001mm ~ 0.999mm/time

Wheel speed: 3500rpm (60Hz) 2900rpm (50Hz)

Wheel dimensions: 180 x 13 x 31.75mm (max. 200 x 20 x 31.75)

Spindle motor: 2HP

Hydraulic pump motor: 1HP

Auto. cross feed motor: 25W

Machine Dimensions: 2080 x 1200 x 1700mm

Machine Weight: 900kg
