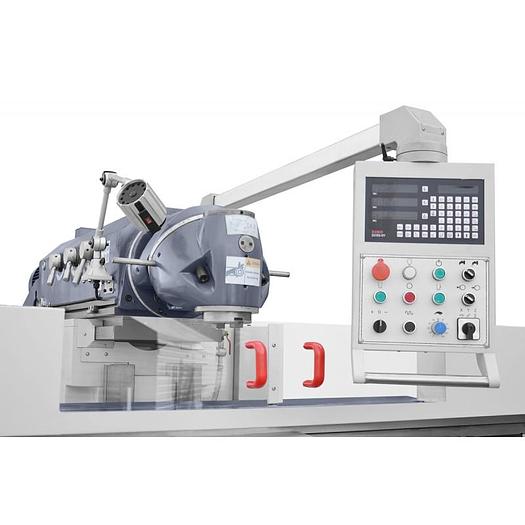

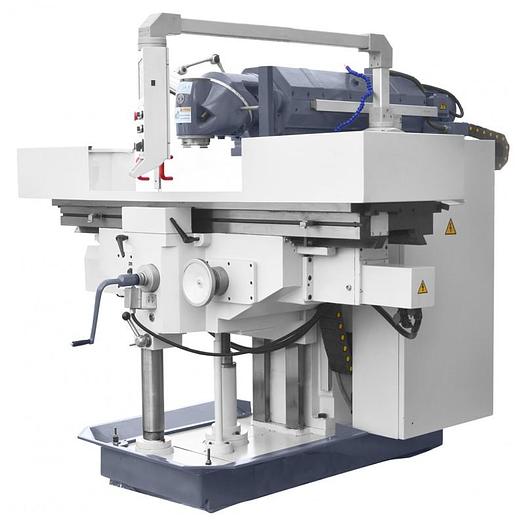

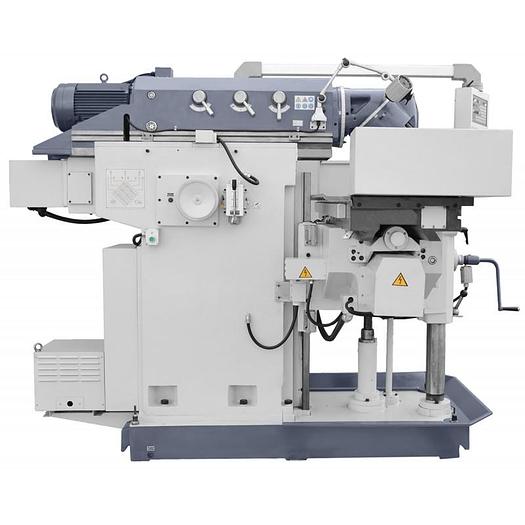

Cormak FU2000 Universal Milling Machine
Description
Cormak FU 2000 Universal Milling Machine
Machine Description
High quality milling machines with sturdy construction. The large table allows for machining parts up to 1800 kg. Drives in all axes use servomotors and ball screws.
Included in Delivery
3 Axis Digital Display

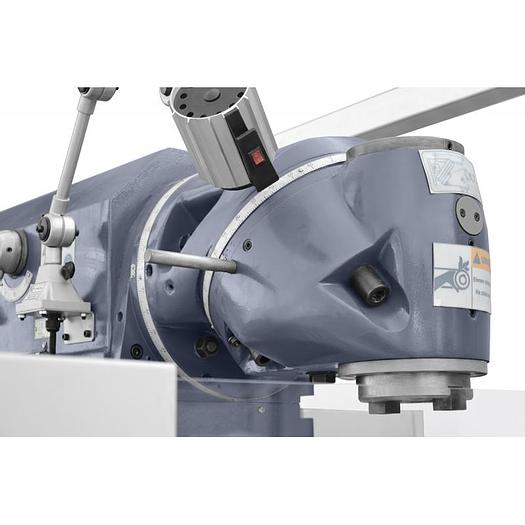

Universal Swivel Head
Milling Chuck with Collets (5,6,8,10,12,14,16mm)
Central Lubrication System
Coolant Equipment
LED Work Light
Technical Details

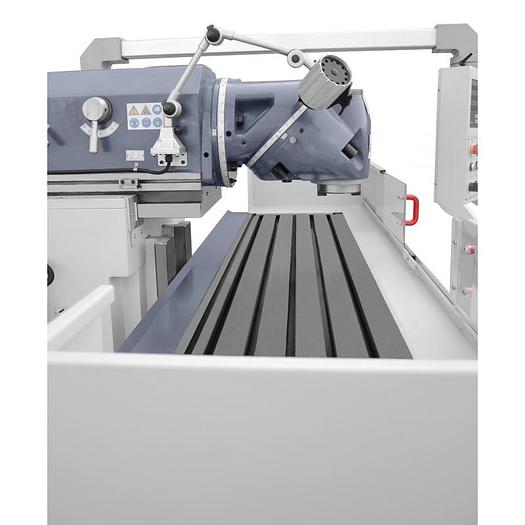

Table Dimensions: 500 × 2000 mm
Table Load Capacity: 1800 kg
X-axis Travel: 1400 mm
Y-axis Travel: 700 mm
Z-axis Travel : 500 mm
Speed Range: (27) 30–2050 min-1
Spindle Face to Table Surface Distance: 50–550 mm
Swivel Head: 360°
X-axis Rapid Feed: 2540 mm/min
Y-axis Rapid Feed: 2540 mm/min
Z-axis Rapid Feed: 1700 mm/min
X-axis Feed Speed: 10–1000 mm/min
Y-axis Feed Speed: 10–1000 mm/min
Z-axis Feed Speed: 5–500 mm/min
Main Motor Power: 7.5 kW
Overall Dimensions: 2986 × 2260 × 2180 mm
Weight: 6000 kg
Specifications
| Manufacturer | Cormak |
| Model | FU2000 Universal Milling Machine |
| Condition | New |
| Table Dimensions | 500 × 2000 mm |
| Table Load Capacity | 1800 kg |
| X-axis Travel | 1400 mm |
| Y-axis Travel | 700 mm |
| Z-axis Travel | 500 mm |
| Speed Range | (27) 30–2050 min-1 |
| Swivel Head | 360° |
| X-axis Rapid Feed | 2540 mm/min |
| Y-axis Rapid Feed | 2540 mm/min |
| Z-axis Rapid Feed | 1700 mm/min |
| X-axis Feed Speed | 10–1000 mm/min |
| Y-axis Feed Speed | 10–1000 mm/min |
| Z-axis Feed Speed | 5–500 mm/min |
| Main Motor Power | 7.5 kW |
| Overall Dimensions | 2986 × 2260 × 2180 mm |
| Weight | 6000 kg |
