Alfra GmbH S125 Busbar Cutting Device

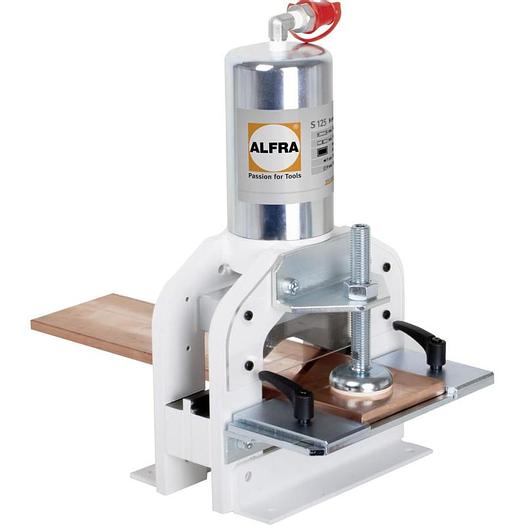

Alfra S125 Busbar Cutting Machine

Product ID: 03250.L

Overview:

Do you prefer razor-sharp calculations in busbar machining? Then you can rely on the precise and quick cutting of copper rails by the S12 from ALFRA. The hydraulically operated high-performance device is cutting rails with the dimensions 125 X 12 exactly, centrically and without waste - thanks to the hold-down device and the practical guiding device. The resharpenable and exchangeable top knife convinces with a cutting time between 5 and 15 seconds, depending on the rail width and the hydraulic unit used.

Features At A Glance:

• Portable and Lightweight, these machine cuts busbars in seconds.
• Replaceable and exchangeable Top Knife.
• Down-holder and guiding device for centering and accurate cutting.
• Machine supplied with quick coupler, vice with centering jaws and down-holder.
• Extremely popular with switchgear and electrical contractors.

Package Includes:

• ALFRA 03250L Busbar Cutting Machine (1)
• User manual (1)

Required additions

Electro-Hydraulic Pump AHP-M

Machine Description

Do you prefer razor-sharp calculations in busbar machining? Then you can rely on the precise and quick cutting of copper rails by the S12 from ALFRA. The hydraulically operated high-performance device is cutting rails with the dimensions 125 X 12 exactly, centrically and without waste - thanks to the hold-down device and the practical guiding device. The resharpenable and exchangeable top knife convinces with a cutting time between 5 and 15 seconds, depending on the rail width and the hydraulic unit used.

Technical Details

Max Capacity: 125 x 12mm

Min Cutting Time with Electro Hydraulic Pump: 5 Secs

Max Cutting Time with Electro Hydraulic Pump: 15 Secs
