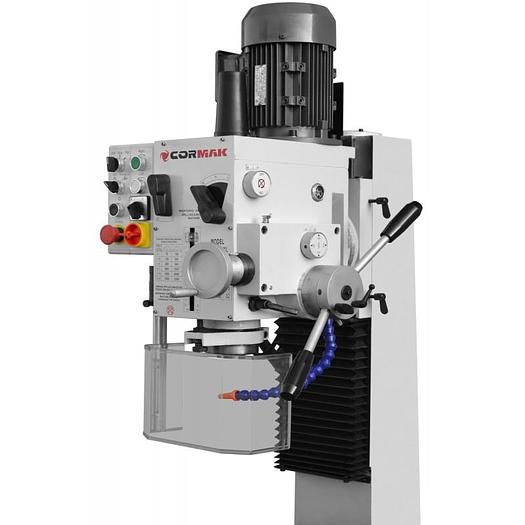

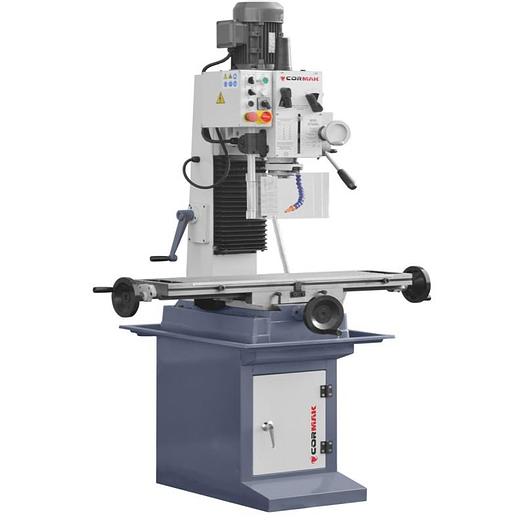

Cormak ZX 7045 BXL Milling & Drilling Machine

Cormak ZX7045 BXL Milling & Drilling Machine

Machine Description

This machine can be used for drilling, reaming and expanding holes up to 32/45 mm in cast iron and threading bolts up to M12 mm, milling up to a width of 80 mm, and a counterbore up to 22 mm. It is also suitable for cutting and face milling. The ZX 7045 BXL version is standard equipped with a large work table with dimensions of 1000 x 240 mm and a cooling system. This machine comes with the machine base as standard.

Included Equipment

Cooling Equipment

Machine Base

B16 - 13mm Drill Chuck

MT4- B16 Adapter

MT4 - D27 Adapter

MT4 - MT3 Reducing Sleeve

MT3 - MT2 Reducing Sleeve

Machine Characteristics

Rigid Cast Iron Frame

Automatic Spindle Feed

Large Precision Ground Table

Dove Tail Guides

Precision Ground Gears

Left & Right Spindle Rotation

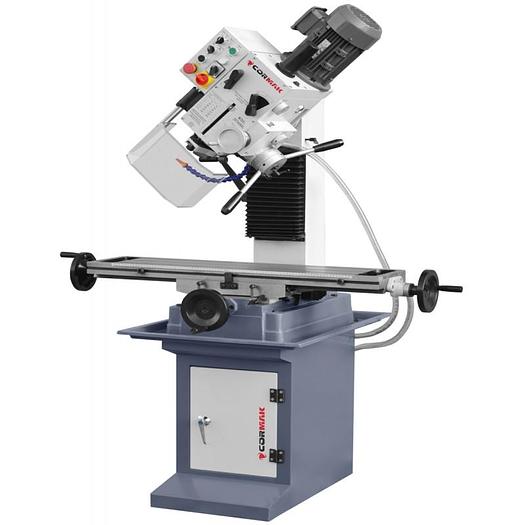

Rotary Head Swivels  +/- 90 Degrees

Adjustable Head Height

Technical Details

Max. drilling diameter in steel / cast iron: 32/45mm

Max. face mill diameter: 80mm

Max. end mill diameter: 32mm

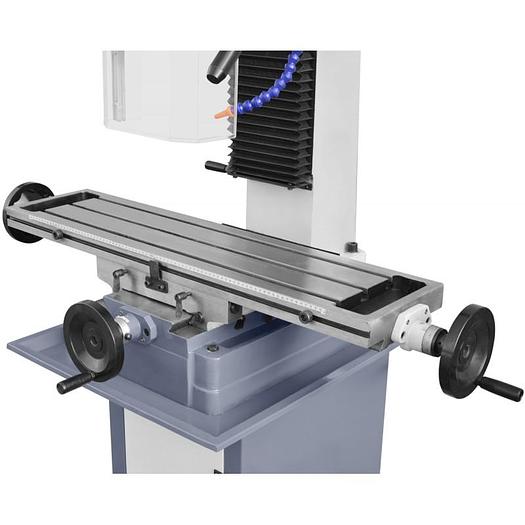

Table dimensions: 1000 x 240mm

X / Y / Z table travel: 700/210/380mm

Distance between spindle face and table: 80 - 460mm

Spindle quill travel: 20mm

Distance of the spindle axis from the column: 290(for Guard 230)mm

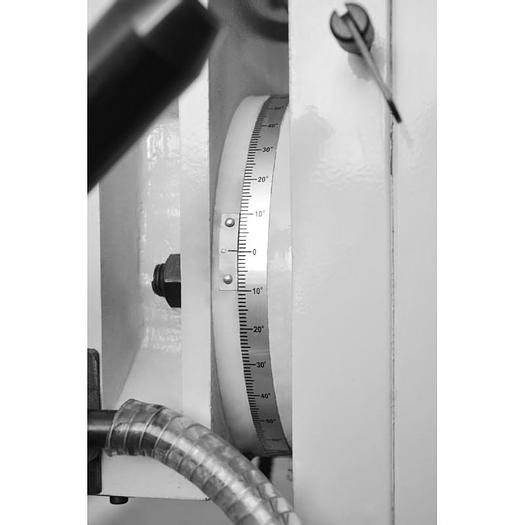

Head rotation angle: +/- 90º

Width of the T-slots: 14mm

Spindle speeds: 75/150/180/280/360/560/600/1000/1200/1600/2000/3200rpm

Spindle feeds: 0.1; 0.18; 0.26 mm / rev

Spindle taper: MT4

Supply voltage: 400V

Motor power: 1.3 / 1.8 kW

External dimensions: 1300 x 820 x 1460mm

Weight: 360kg
