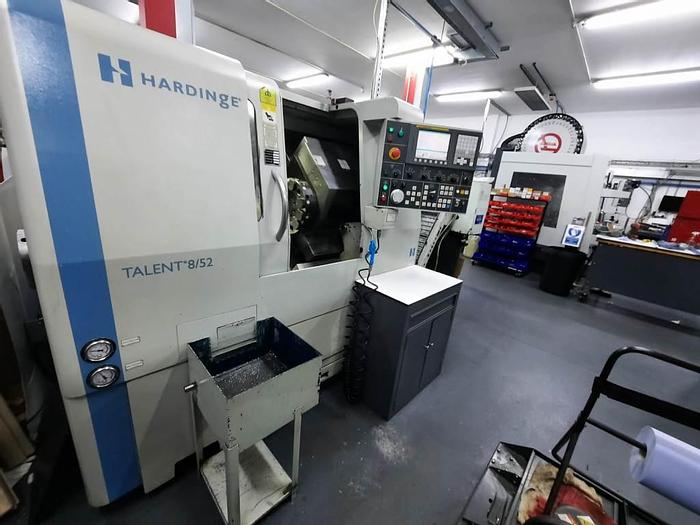

2005 Hardinge Talent 8/52 - SV CNC Lathe
Description
2005 Hardinge Talent 8/52-SV CNC Lathe
Machine Type: Turning Center with Tailstock & Driven Tools
Year: 2005

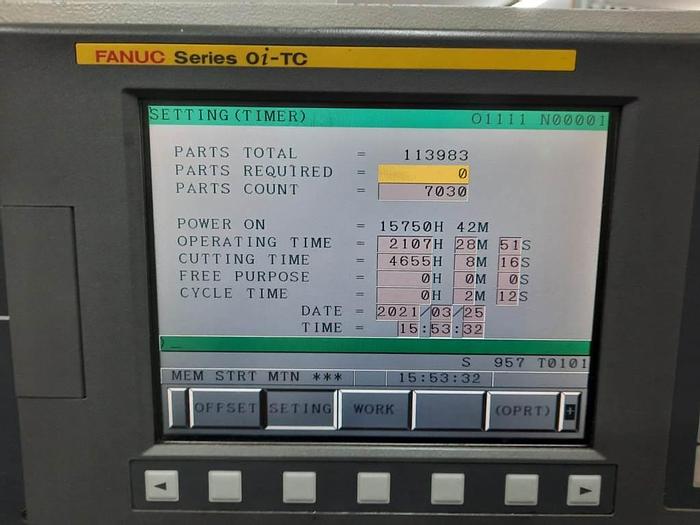

Control: Fanuc Series 0i-TC
Cutting Hours: 4655hrs
Condition: Very Good
Includes:

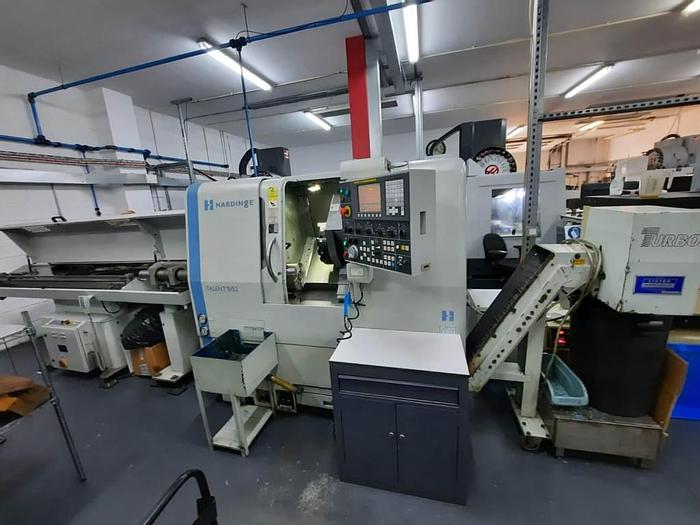

Hydrafeed Multifeed MX1B Barfeed

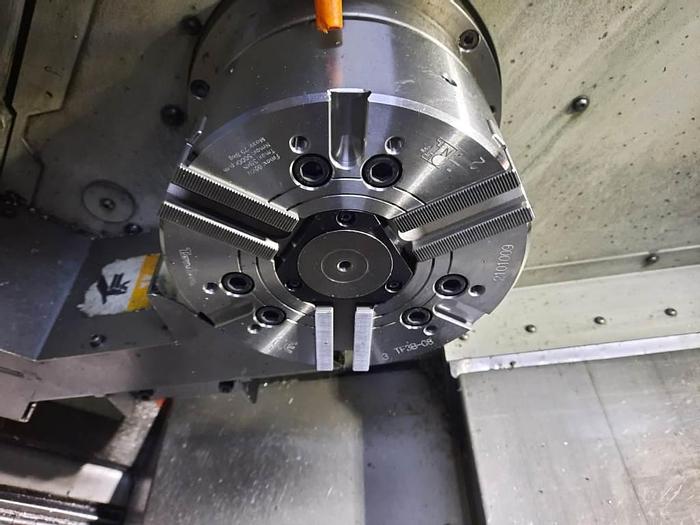

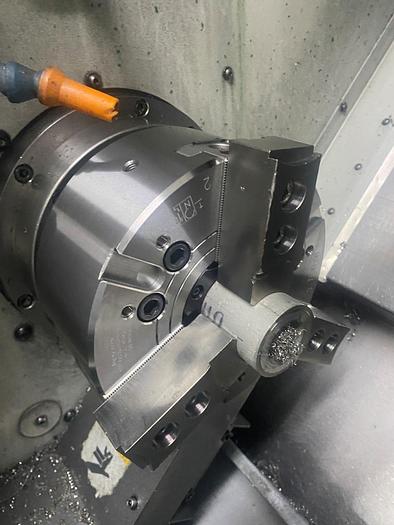

New Hydraulic Chuck
5 x Eppinger Driven Toolholders
Barfeed Sleeves
32 Sets of Toolholders
Parts Catcher
Swarf Conveyor
Technical Details
Spindle Nose: A2-6
Spindle Power: 15kW
Torque: 114Nm
Spindle Speed: 5000rpm

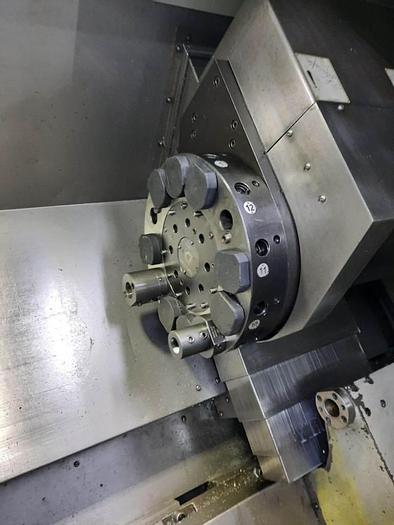

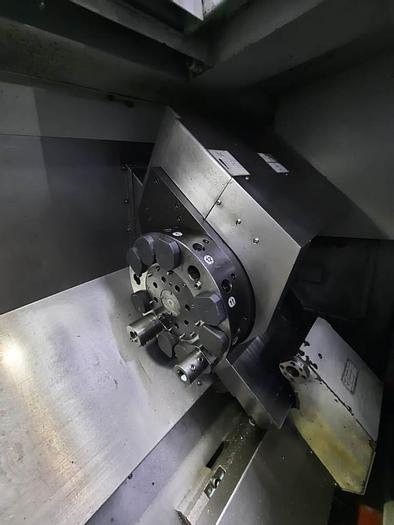

Turret: VDI 30
Turret Stations: 12 Station
Through Drawtube Capacity: 52mm
Chuck Size: 200mm
Gripping Capacity: 185mm
Max Swing: 457mm
Swing over Cross-Slide: 284mm
Max Turning Length: 406mm
X Axis Travel: 153mm
Z Axis Travel: 406mm
Rapid Traverse X Axis: 30m/min
Rapid Traverse Z Axis: 30m/min
Thrust X & Z Axes: 6911N
Ball Screw Diameter X & Z Axis: 28mm
Square Shank Tool Size: 20mm
Round Shank Tool Size: 32mm
Tailstock Taper: MT4
Parts Catcher Capacity: 50 x 100mm
Machine Dimensions: 2995x1550x1780mm
Machine Weight: 2800kg
Specifications
| Manufacturer | Hardinge |
| Model | Talent 8/52 - SV CNC Lathe |
| Year | 2005 |
| Condition | Used |
| Year | 2005 |
| Control | Fanuc Series 0i-TC |
| Cutting Hours | 4655hrs |
| Condition | Very Good |
| Spindle Nose | A2-6 |
| Spindle Power | 15kW |
| Torque | 114Nm |
| Spindle Speed | 5000rpm |
| Turret Stations | 12 Station |
| Turret | VDI 30 |
| Through Drawtube Capacity | 52mm |
| Chuck Size | 200mm |
| Gripping Capacity | 185mm |
| Max Swing | 457mm |
| Swing over Cross-Slide | 284mm |
| Max Turning Length | 406mm |
| X Axis Travel | 153mm |
| Z Axis Travel | 406mm |
| Rapid Traverse X Axis | 30m/min |
| Rapid Traverse Z Axis | 30m/min |
| Turret | 12 Station |
| Square Shank Tool Size | 20mm |
| Round Shank Tool Size | 32mm |
| Tailstock Taper | MT4 |
| Parts Catcher Capacity | 50 x 100mm |
| Machine Dimensions | 2995x1550x1780mm |
| Machine Weight | 2800kg |
