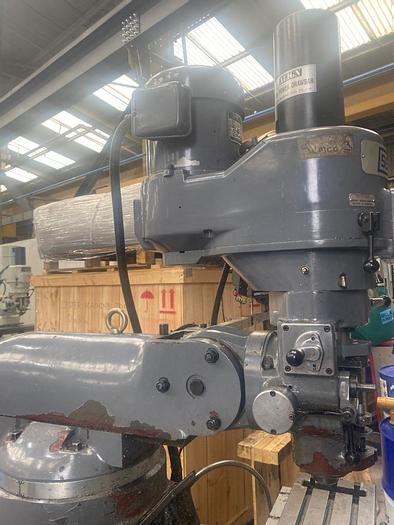

2000 Semco LC1-1/2 VS Manual Turret Milling Machine
Sold
Description

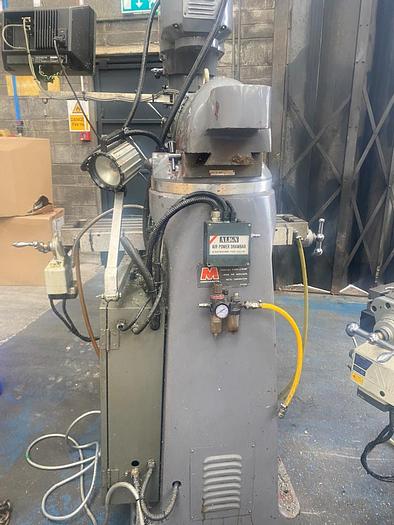

2000 Semco LC1 - 1/2 Manual Turret Milling Machine
Machine Type: Manual Turret Milling Machine
Year: 2000

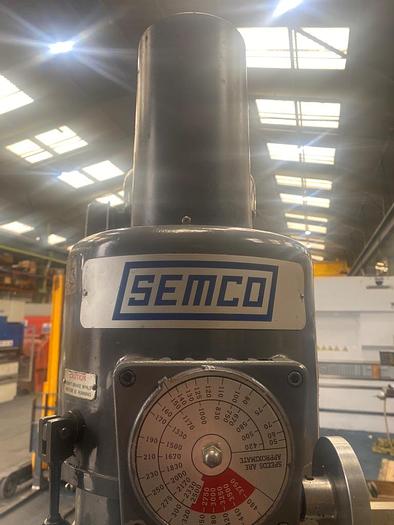

Head Type: Variable Speed Head

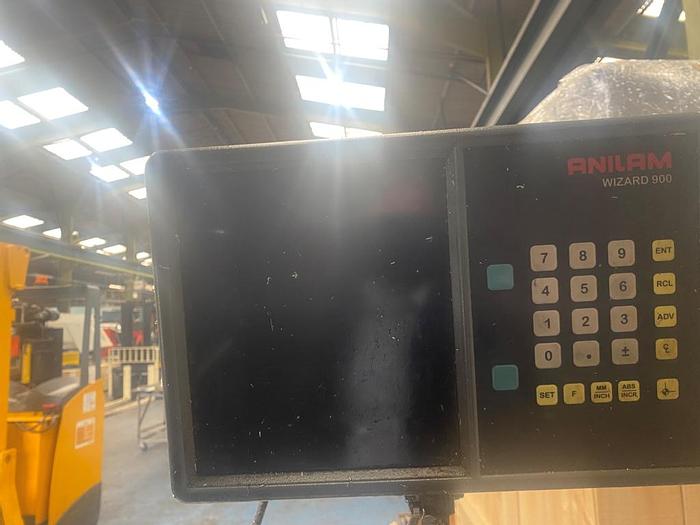

DRO: Anilam Wizard 900
Technical Specification

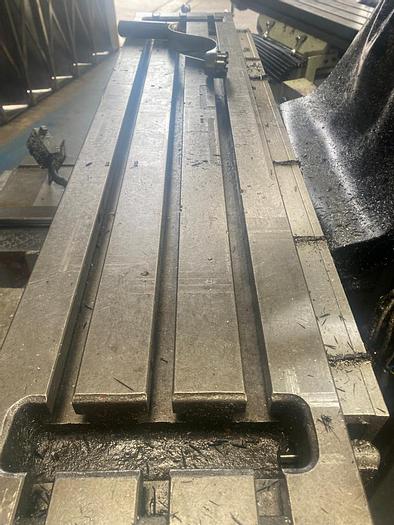

Table Dimensions: 1270 x 230mm
T Slots: 3 x 16mm
Over Arm Travel: 305mm
Spindle Nose to Table: 0-469mm
Throat Depth: 171 - 476mm
Spindle Taper: R8

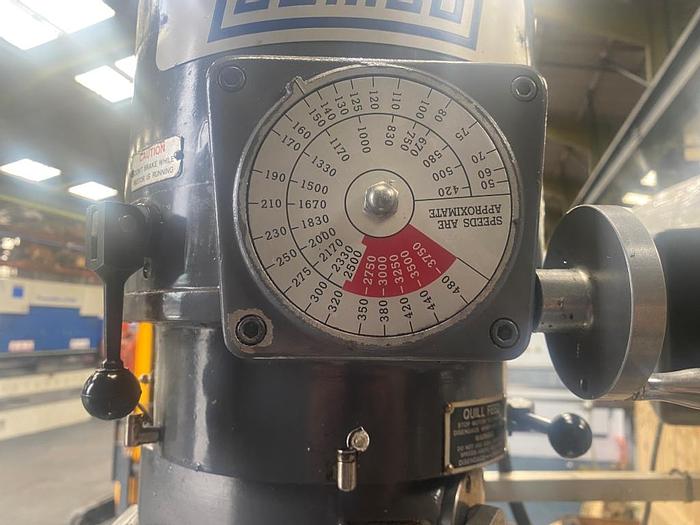

Spindle Speeds: 50-3,750rpm
Spindle Motor: 3hp
Quill Travel: 127mm
Quill Diameter: 85.7mm
Machine Dimensions: 2467 x 1600 x 2100mm
Machine Weight: 1010kg
Included Equipment
Coolant System

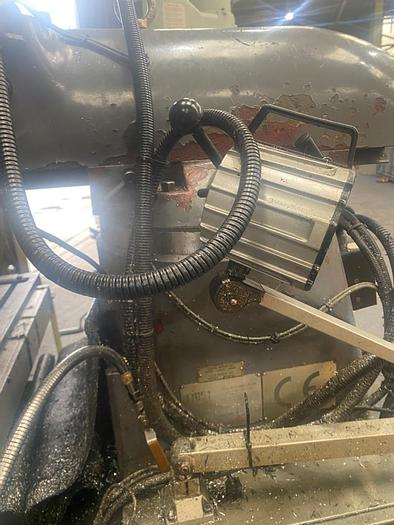

Low Volt Light

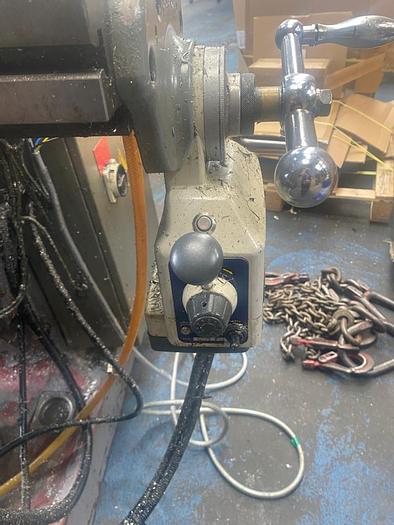

Power Feed on X Axis
Interlocked Chuck Guard

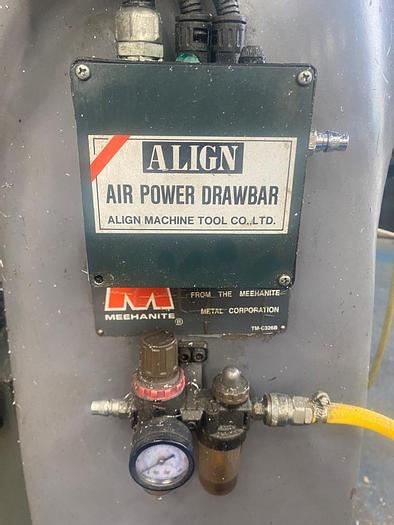

Pneumatic Drawbar
Specifications
| Manufacturer | Semco |
| Model | LC1-1/2 VS Manual Turret Milling Machine |
| Year | 2000 |
| Condition | Used |
| Machine Type | Manual Turret Milling Machine |
| Year | 2000 |
| Head Type | Variable Speed Head |
| DRO | Anilam Wizard 900 |
| Table Dimensions | 1270 x 230mm |
| T Slots | 3 x 16mm |
| Over Arm Travel | 305mm |
| Spindle Nose to Table | 0-469mm |
| Throat Depth | 171 - 476mm |
| Spindle Taper | R8 |
| Spindle Speeds | 50-3,750rpm |
| Spindle Motor | 3hp |
| Quill Travel | 127mm |
| Quill Diameter | 85.7mm |
| Machine Weight | 1010kg |
