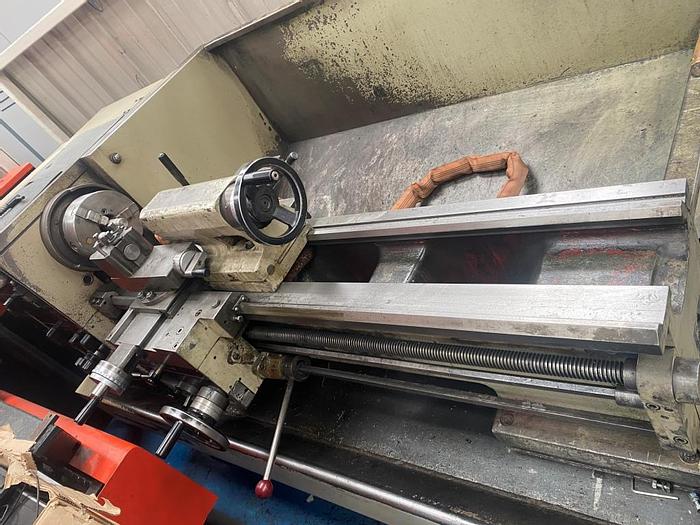

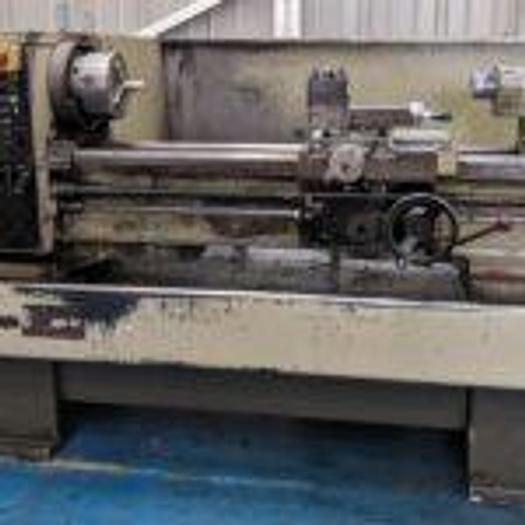

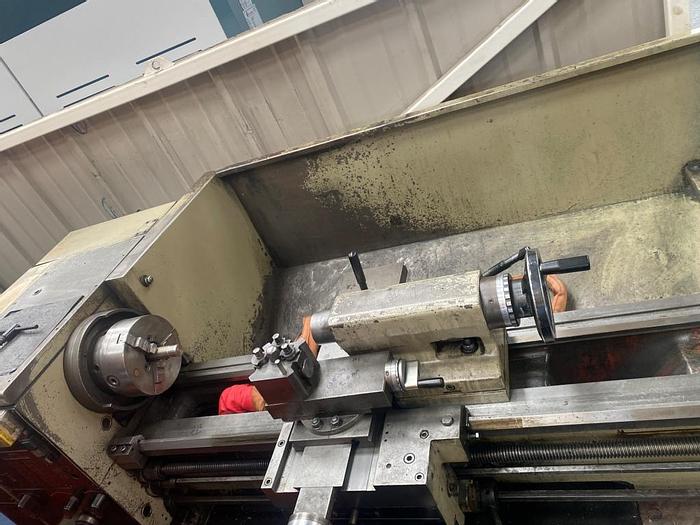

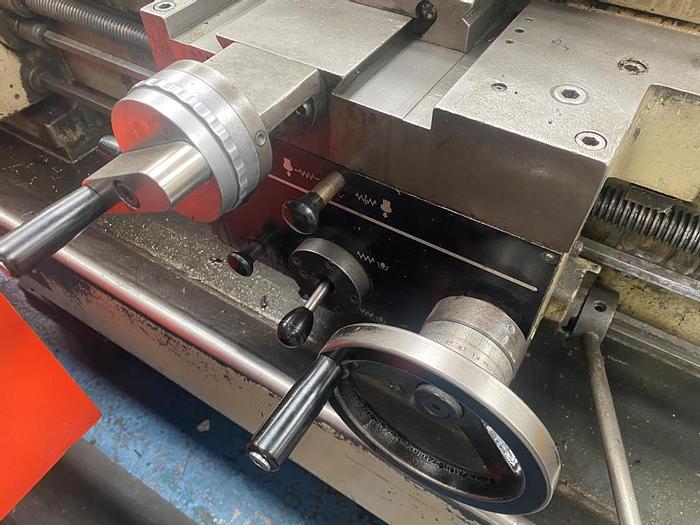

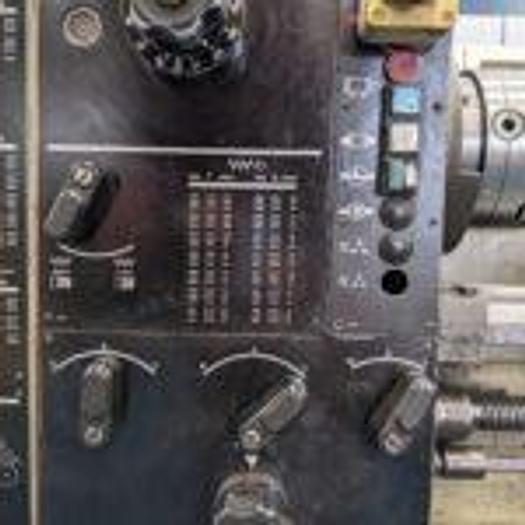

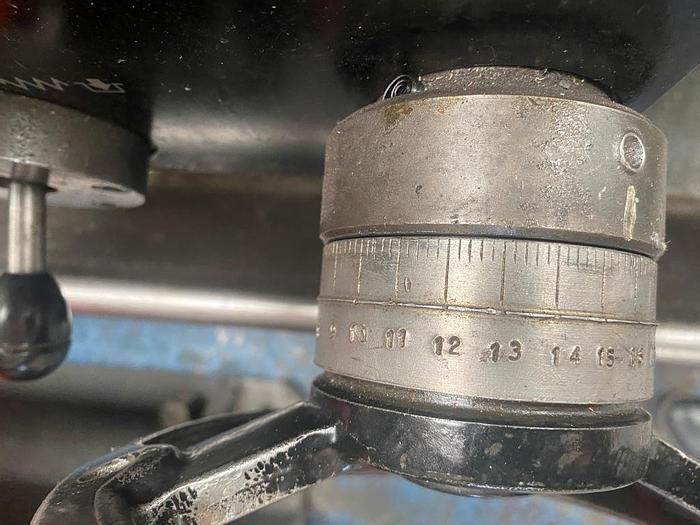

Harrison M350 Manual Centre Lathe
Description
Harrison M350 Manual Centre Lathe
Machine Type: Manual Centre Lathe
DRO: No
Condition: Very Good
Includes

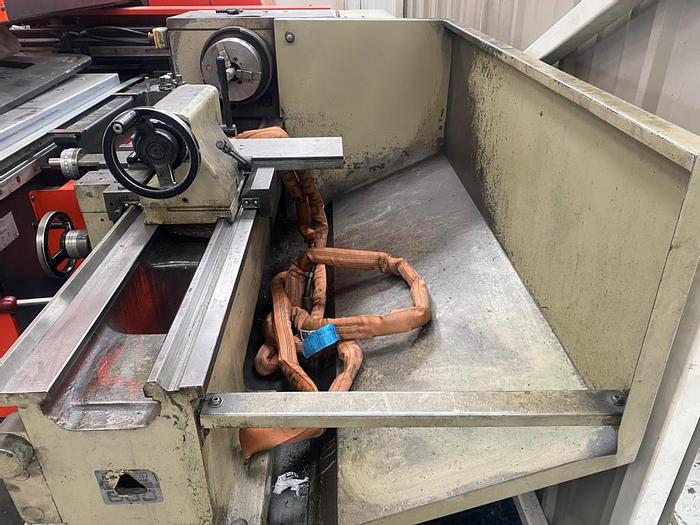

Full Length Rear Splash Guard

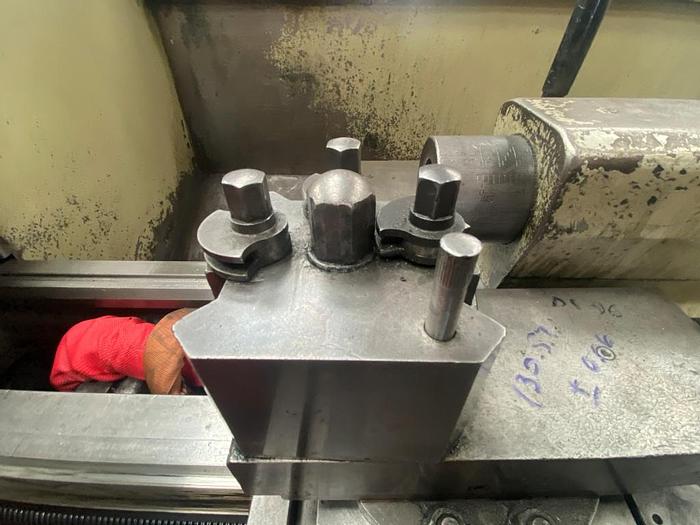

Quick Change Tool Post (No tool holders)

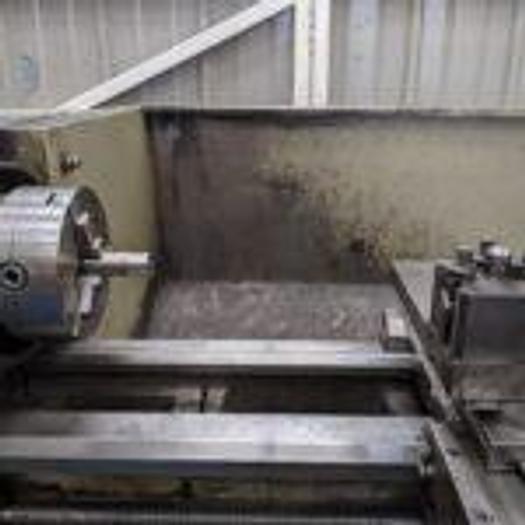

3 Jaw Self Centering Chuck
Technical Details
Centre Distance: 1500mm
Swing Over Bed: 380mm
Swing over Cross-Slide: 240mm
Swing in Gap: 585mm
Gap Length: 150mm
Spindle Bore: 54mm
Spindle Nose: D1-6 Camlock
Spindle Taper: MT 4
Spindle Speeds: 40-2200rpm (12)
Motor Power: 7.4HP/5.5kW
Electrical Connection: 380V/3Phase/50Hz
Leadscrew Diameter: 32mm
Leadscrew Thread: 6mm Pitch/4 TPI
Metric Threads: 0.2 to 14mm Pitch (51)
English Threads: 2 to 56 TPI (56)
Module Threads: 0.2 to 3.5 Mod (20)
Diametral Threads: 8 to 56 DP (20)
Metric Longitudinal Feeds: 0.03 to 2mm/rev
English Longitudinal Feeds: .0012 to .08in/rev
Cross Feeds: 1/2 Longitudinal Values
Width over Bed Ways: 300mm
Bed Depth under Headstock: 410mm
Bed Depth under Saddle: 270mm
Cross-Slide Width: 180mm
Cross-Slide Travel: 225mm
Top-Slide Width: 106mm
Top-Slide Travel: 120mm
Tool Post: Quick Change Tool Post
Tool Holders: No holders with Machine
Tool Size: 20 x 25mm
Tailstock Quill Diameter: 63mm
Tailstock Quill Travel: 140mm
Tailstock Taper: 4MT
Machine Approx Dimensions: 2700 x 1200 x 1300mm
Machine Approx Weight: 1400kg
Specifications
Manufacturer | Harrison |
Model | M350 Manual Centre Lathe |
Condition | Used |

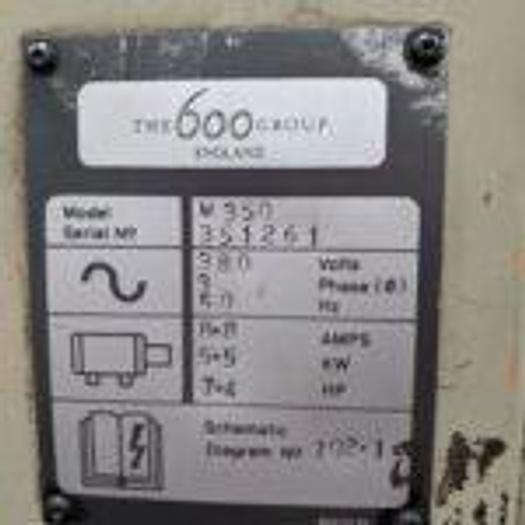

Serial Number | 351261 |
Machine Type | Manual Centre Lathe |
DRO | No |
Condition | Very Good |
Centre Distance | 1500mm |
Swing Over Bed | 380mm |
Swing over Cross-Slide | 240mm |
Swing in Gap | 585mm |
Gap Length | 150mm |
Spindle Bore | 54mm |
Spindle Nose | D1-6 Camlock |
Spindle Taper | MT 4 |
Spindle Speeds | 40-2200rpm (12) |
Motor Power | 7.4HP/5.5kW |
Electrical Connection | 380V/3Phase/50Hz |
Leadscrew Diameter | 32mm |
Leadscrew Thread | 6mm Pitch/4 TPI |
Metric Longitudinal Feeds | 0.03 to 2mm/rev |
English Longitudinal Feeds | .0012 to .08in/rev |
Cross Feeds | 1/2 Longitudinal Values |
Width over Bed Ways | 300mm |
Bed Depth under Headstock | 410mm |
Bed Depth under Saddle | 270mm |
Cross-Slide Width | 180mm |
Cross-Slide Travel | 225mm |
Top-Slide Width | 106mm |
Top-Slide Travel | 120mm |
Tool Post | Quick Change Tool Post |
Tool Holders | No holders with Machine |
Tool Size | 20 x 25mm |
Tailstock Quill Diameter | 63mm |
Tailstock Quill Travel | 140mm |
Tailstock Taper | 4MT |
Machine Approx Weight | 1400kg |
